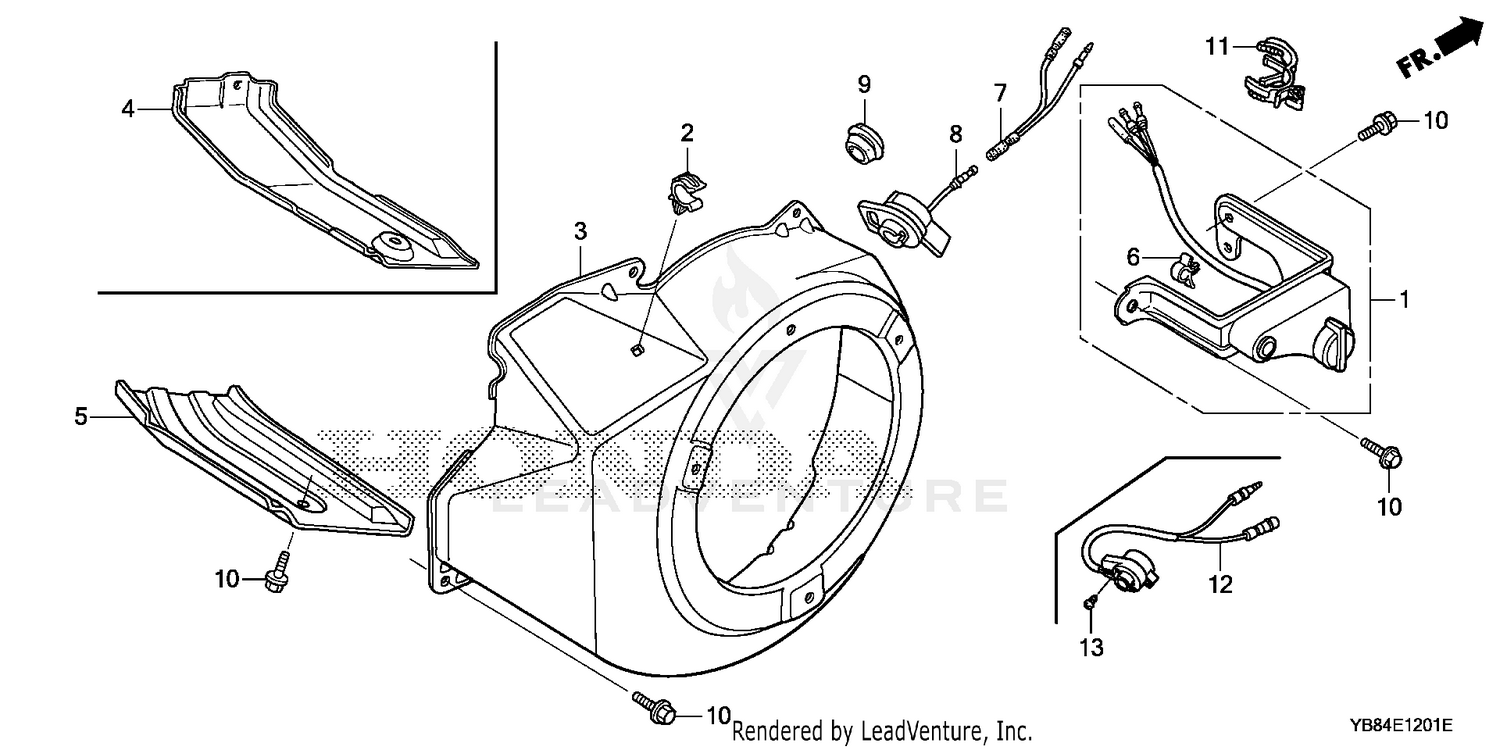

FAN COVER (WT30XK1/K2/K3/K4)
Parts (6)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 16731-ZE2-003 | CLIP, TUBE (Honda Code 2026094). Price: $3.00 |
| 3 | 19610-Z5K-000ZC | COVER, FAN *R280* (POWER RED) Price: $17.14 |
| 5 | 19631-Z5K-000 | SHROUD Price: $18.30 |
| 10 | 90013-883-000 | SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 11 | 90684-ZA0-601 | SEE PART DETAILS - PRI; CLIP, WIRE HARNESS (Honda Code 2539138). Price: $4.40 |
| 12 | 35120-Z5T-003 | SWITCH ASSY., ENGINE STOP Price: $11.98 |
