Parts Catalog

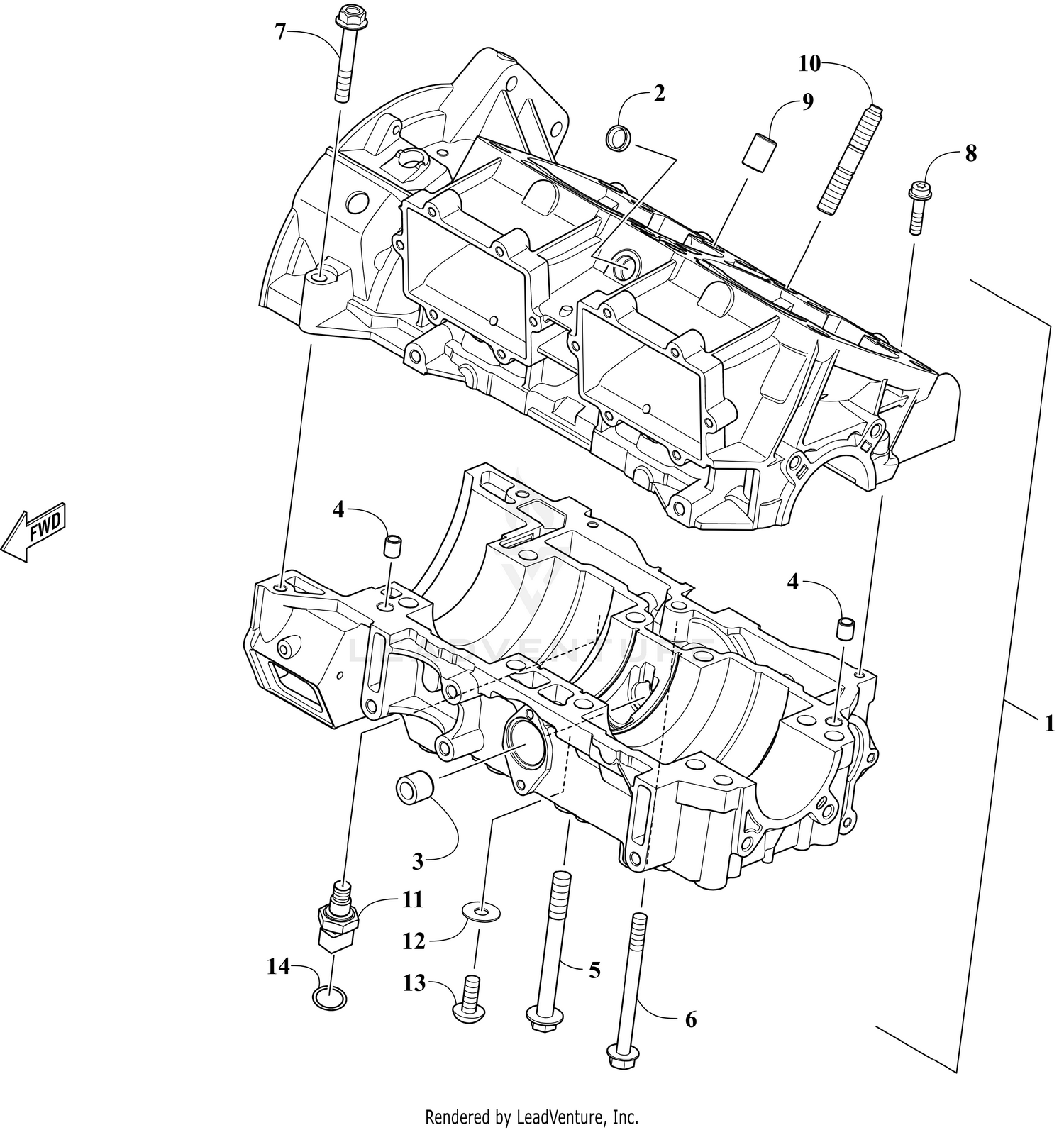

CRANKCASE ASSEMBLY [108989]

Parts (12)

Ref	Part Number	Description
2	0901-013	Plug Price: $1.59
3	0901-004	Bushing Price: $3.63
4	0929-003	Pin, Dowel Price: $26.95
5	0923-062	Screw, Cap Price: $2.39
6	0923-063	Screw, Cap Price: $1.79
7	0923-064	Screw, Cap Price: $1.09
8	0923-026	Screw, Cap Price: $2.42
9	0829-002	Pin, Dowel Price: $3.14
10	0923-065	Bolt, Stud Price: $1.16
11	0824-051	Sensor, Coolant Temp Price: $20.56
12	0830-155	Washer, Seal Price: $3.29
13	8468-613	Screw, Cap Price: $1.80
