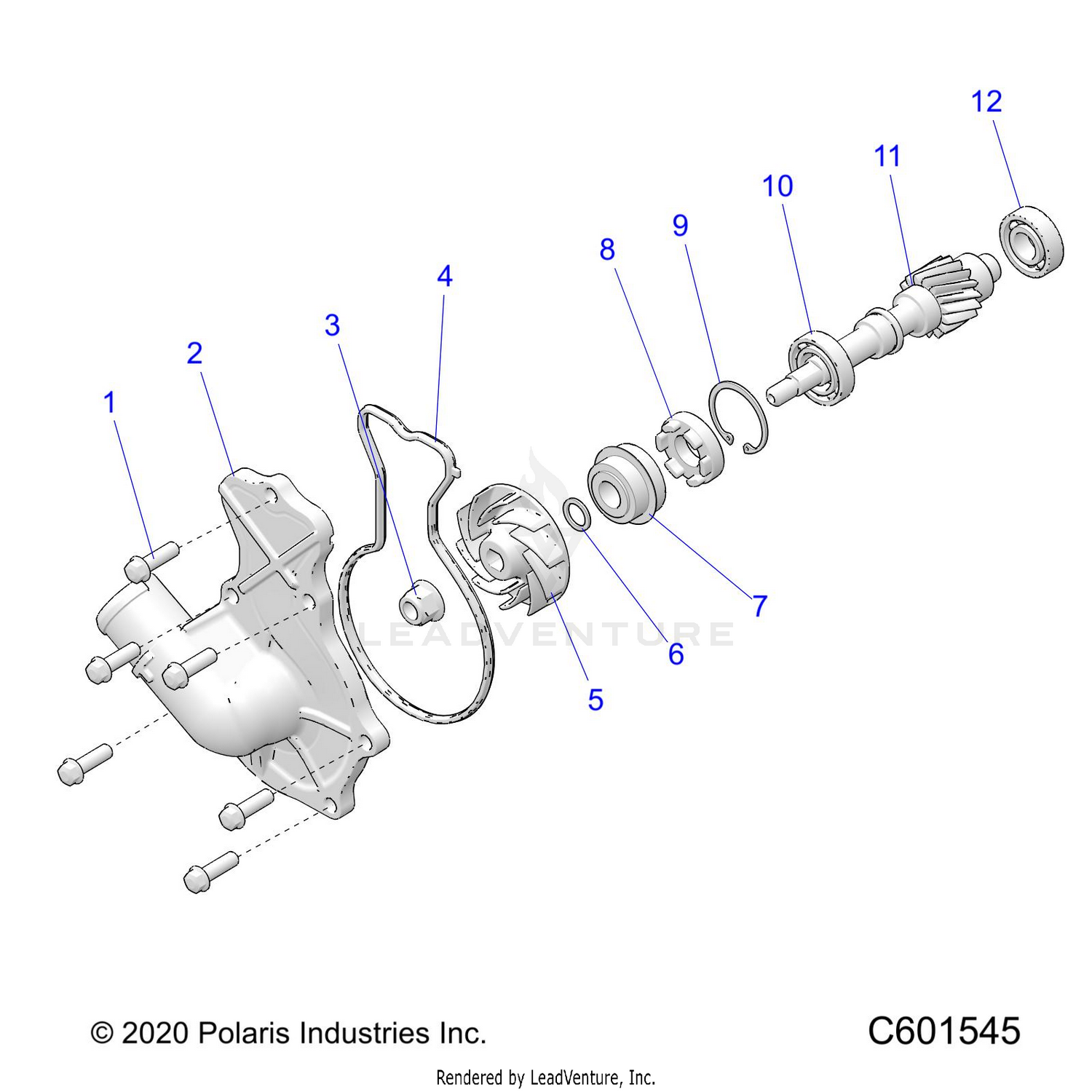

ENGINE, WATER PUMP - S22TLP8RS ALL OPTIONS (C601545)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 7520704 | SCR-HXFL-M6X1.0X20 8.8 ZY3 DRI Price: $2.99 |
| 2 | 5634584 | COVER-WATERPUMP,CAST Price: $34.99 |
| 3 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D Price: $4.99 |
| 4 | 5416669 | SEAL-WATERPUMP,COVER Price: $10.99 |
| 5 | 5453759 | IMPELLER-WATERPUMP Price: $34.99 |
| 6 | 7557129 | WASHER-D,10.20X14.07X1.165 Price: $15.99 |
| 7 | 3610067 | SEAL-WATERPUMP 12X30/34X9.3 Price: $54.99 |
| 8 | 5417218 | SEAL-OIL,30X12X6,W/STNDOFF Price: $11.99 |
| 9 | 7710858 | RING, RETAINING Price: $2.99 |
| 10 | ------- | BEARING-BALL, 6903-C3 |
