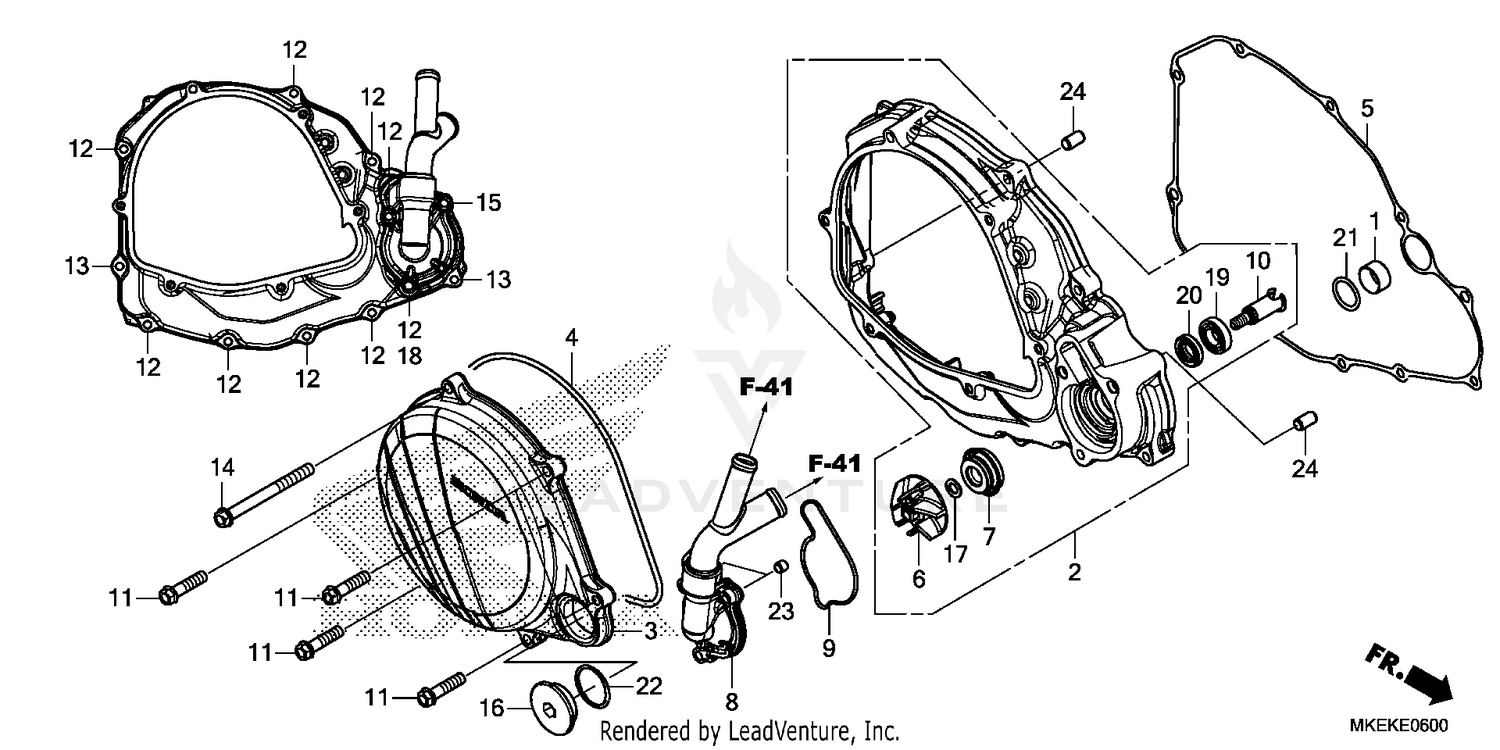

| Ref | Part Number | Description |
|---|
| 1 |
11102-MKE-A00 |
COLLAR, WATER PASS Price: $5.09 |
| 2 |
11330-MKE-A70 |
COVER ASSY., R. CRANKCASE Price: $338.11 |
| 3 |
11351-MKE-A00 |
COVER, CLUTCH Price: $153.11 |
| 4 |
11352-MKE-A70 |
GASKET, CLUTCH COVER Price: $14.95 |
| 5 |
11394-MKE-A71 |
GASKET, R. COVER Price: $37.15 |
| 6 |
19215-MEN-850 |
IMPELLER, WATER PUMP Price: $51.60 |
| 7 |
19217-KRN-A61 |
SEAL, MECHANICAL Price: $56.22 |
| 8 |
19220-MKE-A00 |
COVER, WATER PUMP Price: $124.76 |
| 9 |
19226-MKE-A00 |
GASKET, WATER PUMP Price: $6.42 |
| 10 |
19241-MKE-A00 |
SHAFT, WATER PUMP Price: $72.96 |
| 11 |
90020-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.58 |
| 12 |
90020-GHB-690 |
BOLT, FLANGE (6X28) Price: $2.65 |
| 13 |
90020-GHB-720 |
BOLT, FLANGE (6X35) Price: $2.84 |
| 14 |
90020-GHB-790 |
BOLT, FLANGE (6X65) Price: $3.49 |
| 15 |
90020-GHB-810 |
BOLT, FLANGE (6X75) Price: $3.67 |
| 16 |
90087-HB5-000 |
CAP (30MM) Price: $20.22 |
| 17 |
90447-KE1-000 |
WASHER, SEALING (7MM) Price: $3.04 |
| 18 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 19 |
91002-MEN-A31 |
BEARING, BALL (12X24X6) Price: $10.69 |
| 20 |
91201-965-000 |
OIL SEAL (12X22X5) This part replaces 91201-148-003. Price: $5.09 |
| 21 |
91302-MKE-A70 |
O-RING (2.4X19) Price: $2.18 |
| 22 |
91305-KF0-003 |
O-RING (27X2) (ARAI) Price: $3.51 |
| 23 |
91320-KE1-000 |
PIN, DOWEL (8X7) Price: $2.55 |
