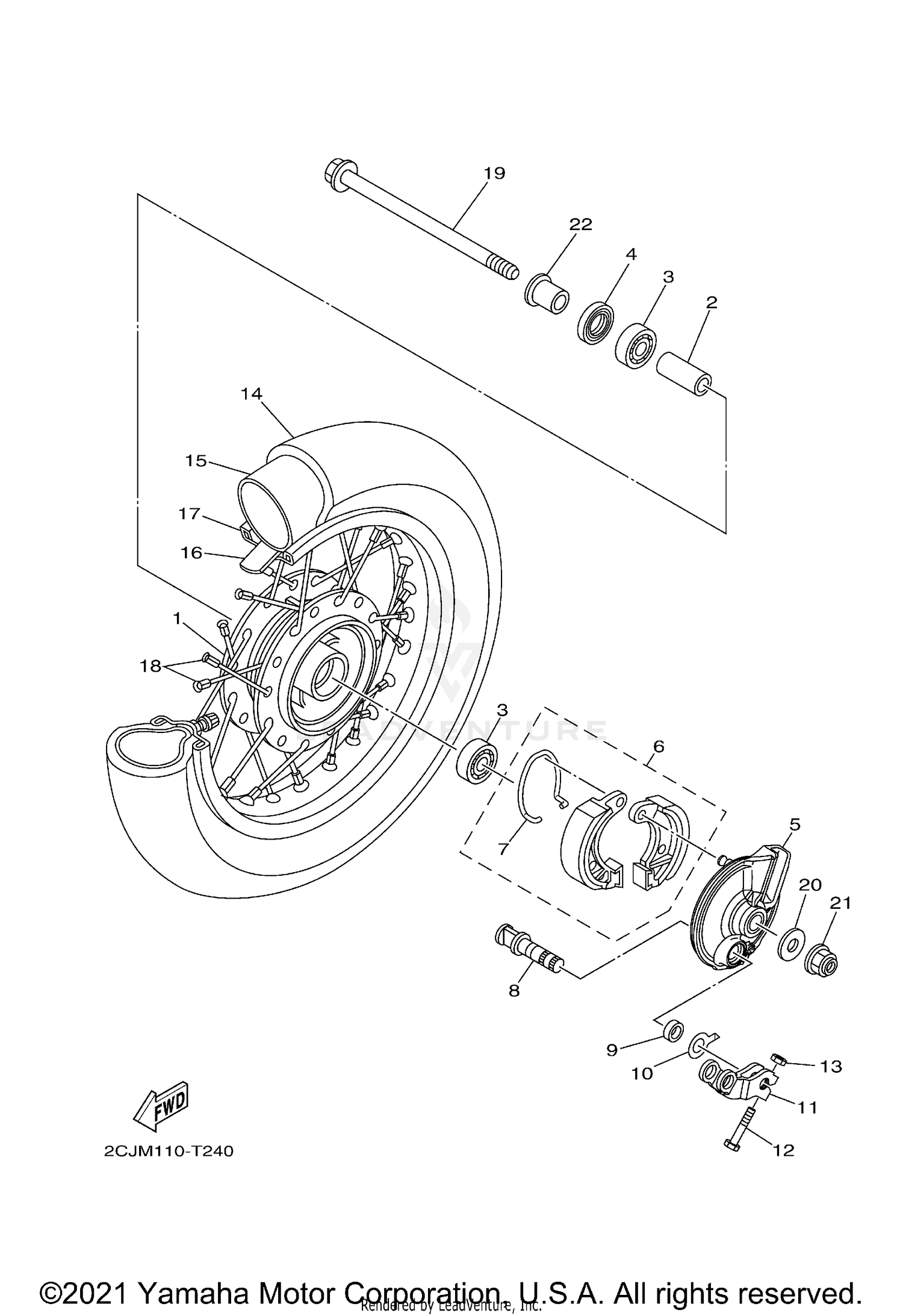

FRONT WHEEL
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1P6-F5111-00-00 | HUB, FRONT Price: $154.99 |
| 2 | 90387-12830-00 | COLLAR Price: $9.49 |
| 3 | 93306-201X1-00 | BEARING Price: $36.99 |
| 4 | 93106-20811-00 | OIL SEAL Price: $6.49 |
| 5 | 2CJ-F5121-00-00 | PLATE, BRAKE SHOE Price: $60.99 |
| 6 | 1P6-W253A-00-00 | BRAKE SHOE KIT Price: $26.99 |
| 7 | 1P6-25133-00-00 | SPRING, RETURN Price: $12.99 |
| 8 | 1P6-F5151-01-00 | CAMSHAFT Price: $32.99 |
| 9 | 93104-12003-00 | OIL SEAL This part replaces 93104-12800-00. Price: $9.49 |
| 10 | 1P6-F533A-01-00 | PLATE, INDICATOR Price: $7.49 |
| 11 | 2CJ-F5155-00-00 | LEVER, CAMSHAFT 1 Price: $28.99 |
| 12 | 90101-06278-00 | BOLT Price: $2.60 |
| 13 | 95317-06600-00 | NUT This part replaces 95307-06600-00. Price: $3.85 |
| 17 | 94414-10800-00 | RIM (1.40-10) Price: $89.99 |
| 18 | 1P6-F5104-01-00 | SPOKE SET, FRONT Price: $56.99 |
| 19 | 2CJ-F5181-00-00 | AXLE, WHEEL Price: $36.99 |
| 20 | 90201-128F3-00 | WASHER, PLATE Price: $1.35 |
| 21 | 95602-12200-00 | NUT, SELF-LOCKING Price: $5.49 |
