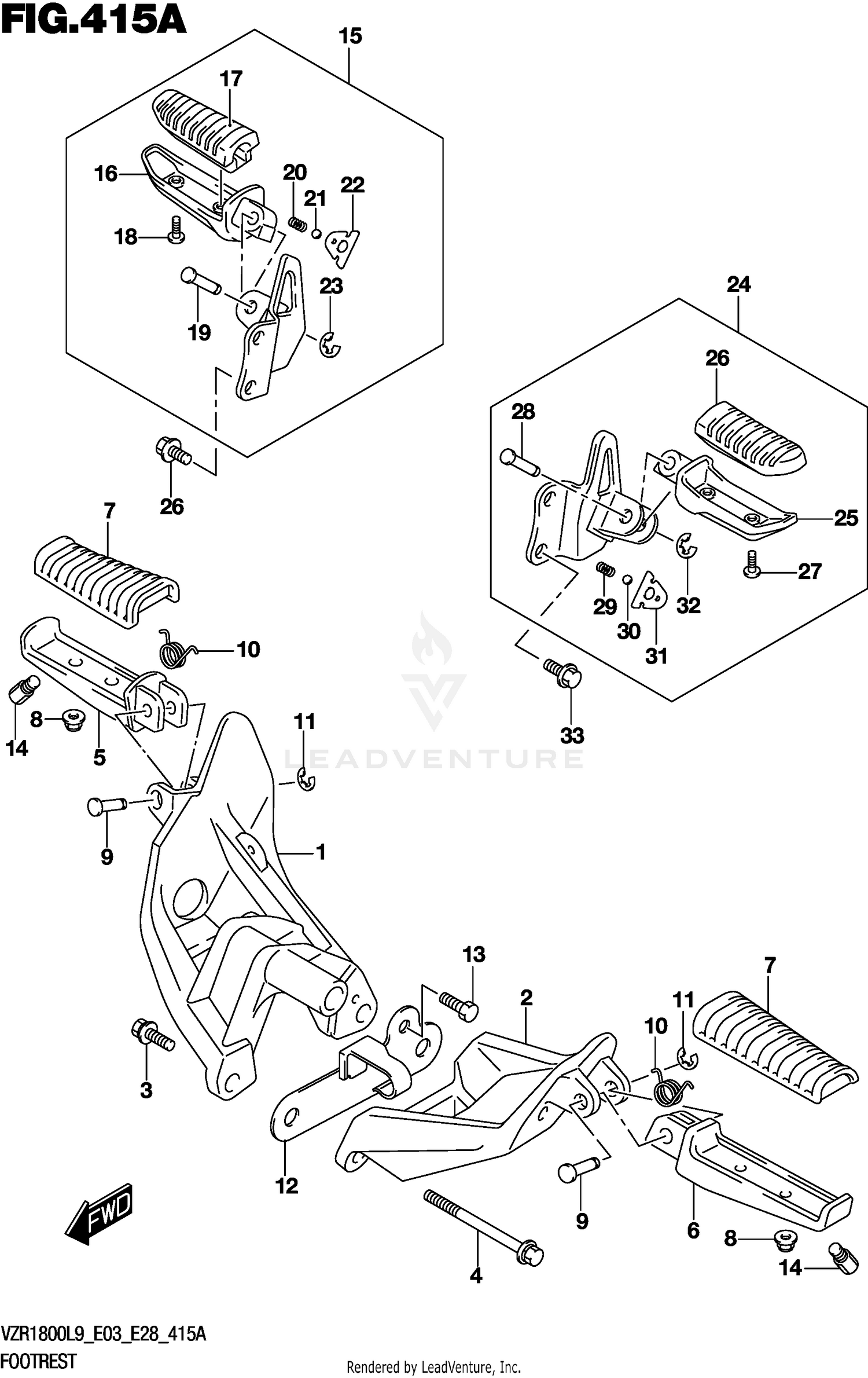

FOOTREST
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 43511-48G10 | BRACKET,FR FOOTREST RH Price: $260.26 |
| 2 | 43521-48G01 | BRACKET,FR FOOTREST LH Price: $459.52 |
| 3 | 09103-10268 | BOLT (10X28) Price: $5.80 |
| 5 | 43531-48G01 | BAR,FRONT FOOTREST RH Price: $50.95 |
| 6 | 43541-48G01 | BAR,FRONT FOOTREST LH Price: $49.69 |
| 7 | 43550-48G00 | RUBBER,FR FOOTREST Price: $37.12 |
| 9 | 09208-08019 | PIN Price: $3.36 |
| 10 | 09448-14047 | SPRING Price: $5.18 |
| 11 | 08332-1106A | E RING Price: $1.73 |
| 12 | 43560-48G00 | PLATE,FOOTREST BRACKET Price: $34.25 |
| 13 | 01500-0612A | BOLT Price: $2.18 |
| 15 | 43600-48G00 | FOOTREST ASSY,PILLION RH Price: $190.00 |
| 20 | 09440-05005 | SPRING Price: $1.65 |
| 21 | 06111-07004 | BALL Price: $1.48 |
| 23 | 08332-1106A | E RING Price: $1.73 |
| 24 | 43700-48G00 | FOOTREST ASSY,PILLION LH Price: $190.00 |
| 29 | 09440-05005 | SPRING Price: $1.65 |
| 30 | 06111-07004 | BALL Price: $1.48 |
| 32 | 08332-1106A | E RING Price: $1.73 |
