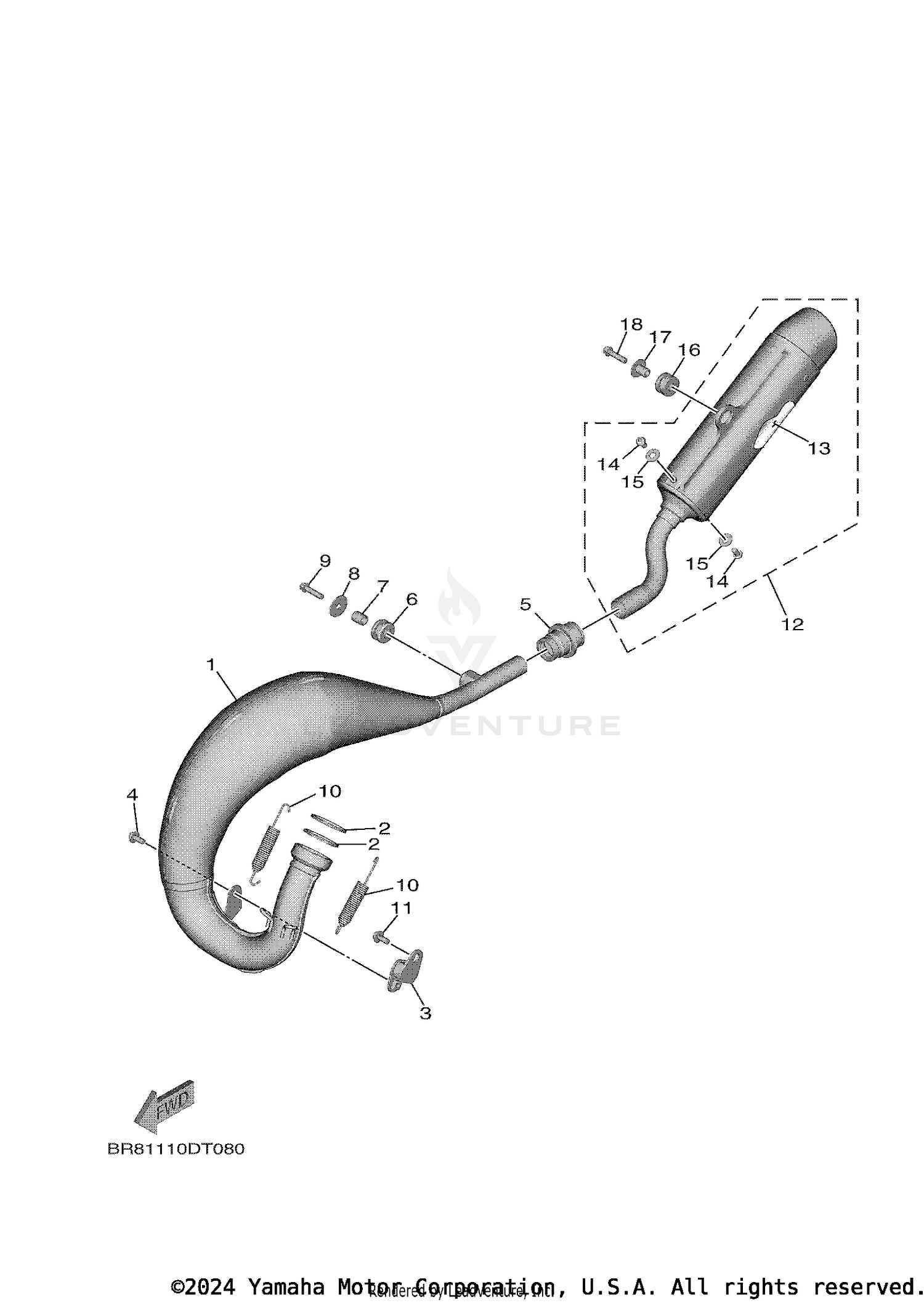

| Ref | Part Number | Description |
|---|
| 1 |
BR8-14610-00-00 |
EXHAUST PIPE ASSY 1 Price: $368.99 |
| 3 |
565-14771-01-00 |
STAY, MUFFLER 1 This part replaces 565-14771-00-00. Price: $19.99 |
| 4 |
90119-06133-00 |
BOLT, WITH WASHER Price: $6.49 |
| 5 |
17W-14615-00-00 |
JOINT, EXHAUST 1 Price: $47.99 |
| 6 |
90480-18411-00 |
GROMMET Price: $12.49 |
| 7 |
90387-105L0-00 |
COLLAR Price: $11.49 |
| 8 |
90201-06086-00 |
WASHER, PLATE Price: $8.49 |
| 9 |
95E32-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $0.50 |
| 10 |
90506-20018-00 |
SPRING, TENSION Price: $10.49 |
| 11 |
90119-06133-00 |
BOLT, WITH WASHER Price: $6.49 |
| 12 |
BR8-14753-00-00 |
SILENCER, EXHAUST Price: $187.99 |
| 13 |
BR8-1469A-00-00 |
FIBER Price: $44.99 |
| 14 |
92017-06010-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 15 |
90201-06M08-00 |
WASHER, PLATE This part replaces 90201-06050-00. Price: $2.50 |
| 16 |
90480-16561-00 |
GROMMET Price: $18.49 |
| 17 |
90387-06168-00 |
COLLAR Price: $8.49 |
