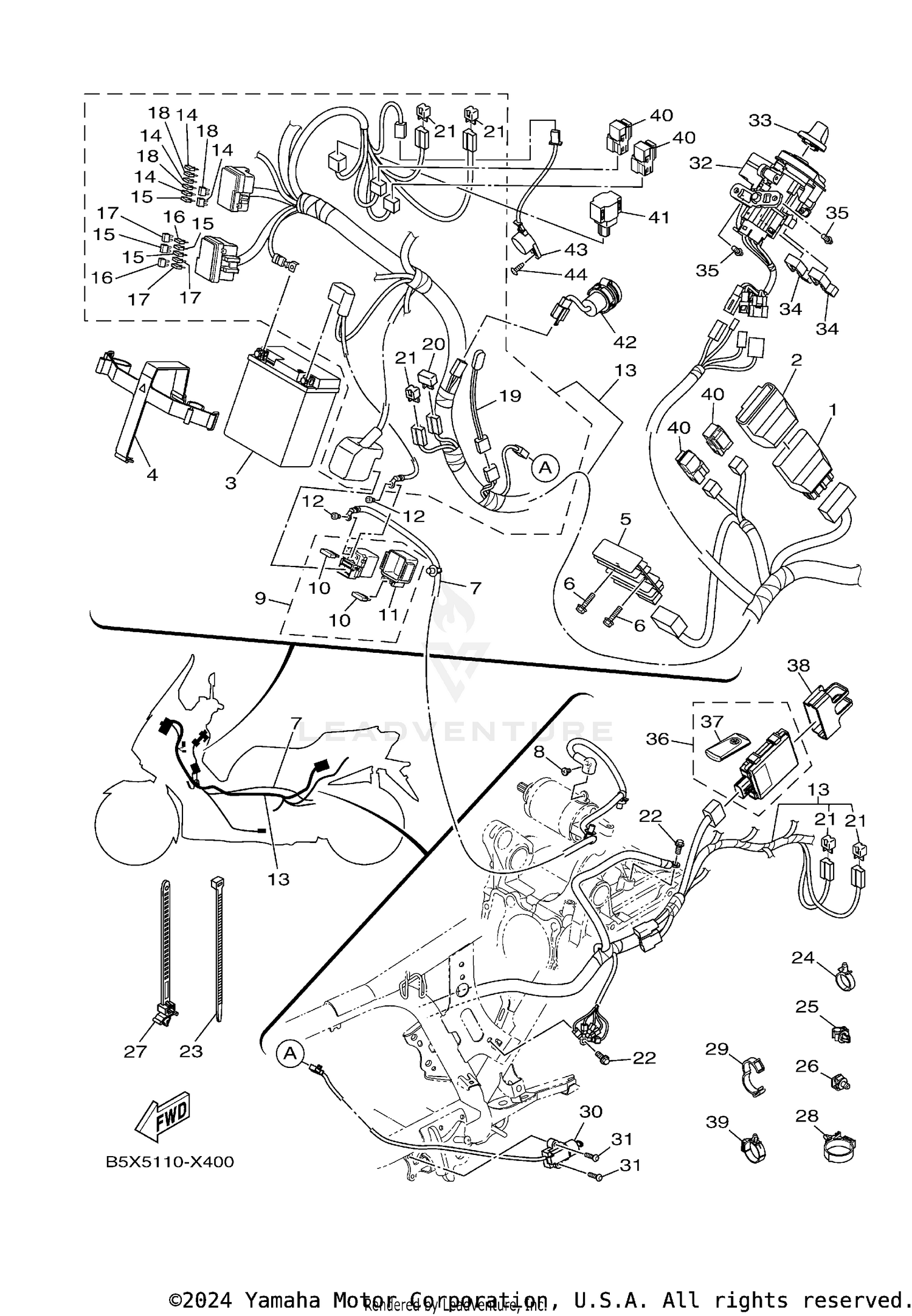

ELECTRICAL 1
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B5X-H591A-00-00 | ENGINE CONTROL UNIT ASSY Price: $165.99 |
| 2 | B5X-H2591-00-00 | BAND Price: $2.20 |
| 3 | GTZ-8V000-00-00 | BATTERY (GSGTZ8V) " Price: $103.99 |
| 4 | B74-H2131-00-00 | BAND, BATTERY Price: $13.49 |
| 5 | 2GS-H1960-01-00 | RECTIFIER & REGULATOR ASSY Price: $212.99 |
| 6 | 95D32-06025-00 | BOLT, FLANGE DEEP RECESS Price: $1.15 |
| 7 | B74-H1815-02-00 | CORD, STARTER MOTOR Price: $33.99 |
| 8 | 90149-05018-00 | SCREW Price: $8.49 |
| 9 | 1WD-H1940-00-00 | STARTER RELAY ASSY Price: $37.99 |
| 11 | 1WD-H2155-00-00 | BAND Price: $2.35 |
| 12 | 91312-05008-00 | BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 13 | B5X-H2590-20-00 | WIRE HARNESS ASSY Price: $338.99 |
| 14 | B65-H2151-00-00 | FUSE (7.5A) Price: $1.40 |
| 15 | B65-H2151-10-00 | FUSE (15A) Price: $1.60 |
| 16 | B65-H2151-60-00 | FUSE (30A) Price: $1.40 |
| 17 | 5JJ-82151-80-00 | FUSE (2A-BL) This part replaces B65-H2151-80-00. Price: $8.49 |
| 18 | 67F-82151-40-00 | FUSE (10A) This part replaces 1LB-H2151-00-00. Price: $7.10 |
| 19 | 1SD-H5700-00-00 | THERMISTOR ASSY Price: $71.99 |
| 20 | 4WA-81980-00-00 | DIODE ASSY Price: $32.99 |
| 21 | 3WP-81980-00-00 | DIODE ASSY Price: $24.99 |
| 22 | 95E32-06012-00 | BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 23 | 1UA-82591-00-00 | BAND This part replaces 90464-36800-00. Price: $5.49 |
| 24 | 90464-24230-00 | CLAMP Price: $8.49 |
| 25 | 90464-10008-00 | CLAMP Price: $3.80 |
| 26 | 90464-12018-00 | CLAMP Price: $2.65 |
| 28 | 90464-36006-00 | CLAMP Price: $3.80 |
| 29 | 90464-16003-00 | CLAMP Price: $7.60 |
| 30 | B74-H2566-00-00 | SWITCH, SIDE STAND Price: $33.99 |
| 31 | 90111-05810-00 | BOLT, HEX. SOCKET BUTTON Price: $1.05 |
| 32 | B74-H2501-14-00 | MAIN SWITCH STEERING LOCK This part replaces B74-H2501-12-00. Price: $137.99 |
| 33 | B74-H276E-10-00 | KNOB COMP. Price: $14.49 |
| 34 | 90464-09806-00 | CLAMP Price: $3.50 |
| 35 | 90109-06319-00 | BOLT Price: $2.30 |
| 36 | B5X-H6260-12-00 | REMOTE CONT. UNIT ASSY This part replaces B5X-H6260-11-00. Price: $429.99 |
| 37 | B5X-H6261-15-00 | XMTR COMP This part replaces B5X-H6261-11-00. Price: $215.99 |
| 38 | B65-H5546-00-00 | BAND Price: $2.10 |
| 39 | 90464-30001-00 | CLAMP Price: $8.49 |
| 40 | 1ST-81950-00-00 | RELAY ASSY (1ST-00) This part replaces B74-H1950-00-00. Price: $19.99 |
| 41 | 1PA-H2576-01-00 | SENSOR, LEAN ANGLE This part replaces 1PA-H2576-00-00. Price: $29.99 |
| 42 | BB8-H254B-00-00 | TERMINAL COMP. Price: $35.99 |
| 43 | B3F-H3383-00-00 | BUZZER Price: $43.99 |
