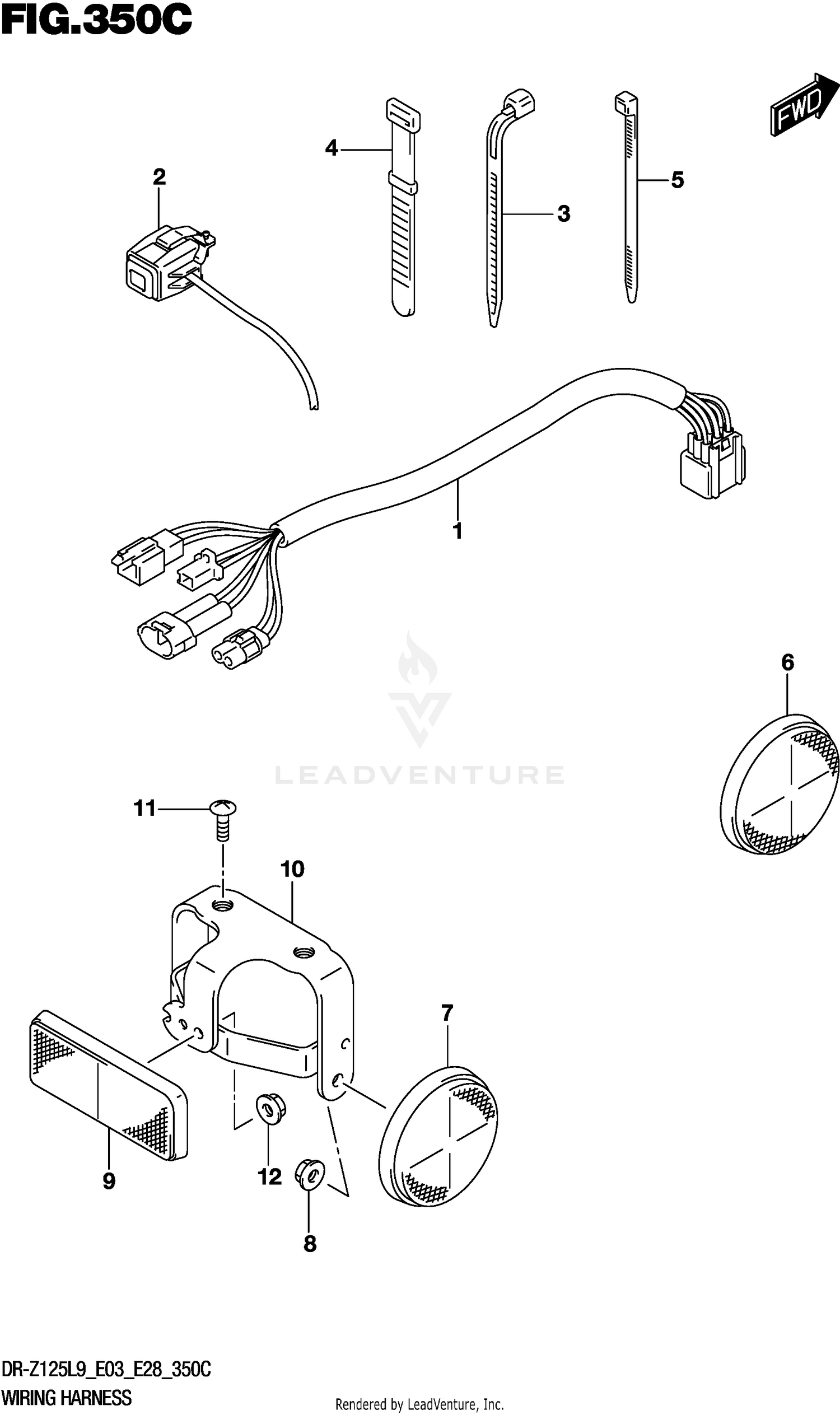

WIRING HARNESS (DR-Z125LL9 E28)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-08G01 | HARNESS, WIRING This part replaces 36610-08G00. Price: $64.80 |
| 2 | 37820-08G00 | SWITCH ASSY, ENGINE STOP Price: $66.52 |
| 3 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 4 | 09407-12402 | CLAMP (L:120) Price: $3.70 |
| 5 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 6 | 35950-14A11 | REFLEX REFLECTOR ASSY, FR SID Price: $18.81 |
| 7 | 35970-14A20 | REFLECTOR ASSY, RR SIDE Price: $19.20 |
| 8 | 08316-1005A | NUT Price: $2.64 |
| 9 | 35970-07F01 | REFLECTOR ASSY,RR Price: $25.79 |
| 10 | 35974-08G10 | BRACKET, SIDE & RR Price: Call Us |
| 11 | 02142-0612A | SCREW Price: $1.65 |
