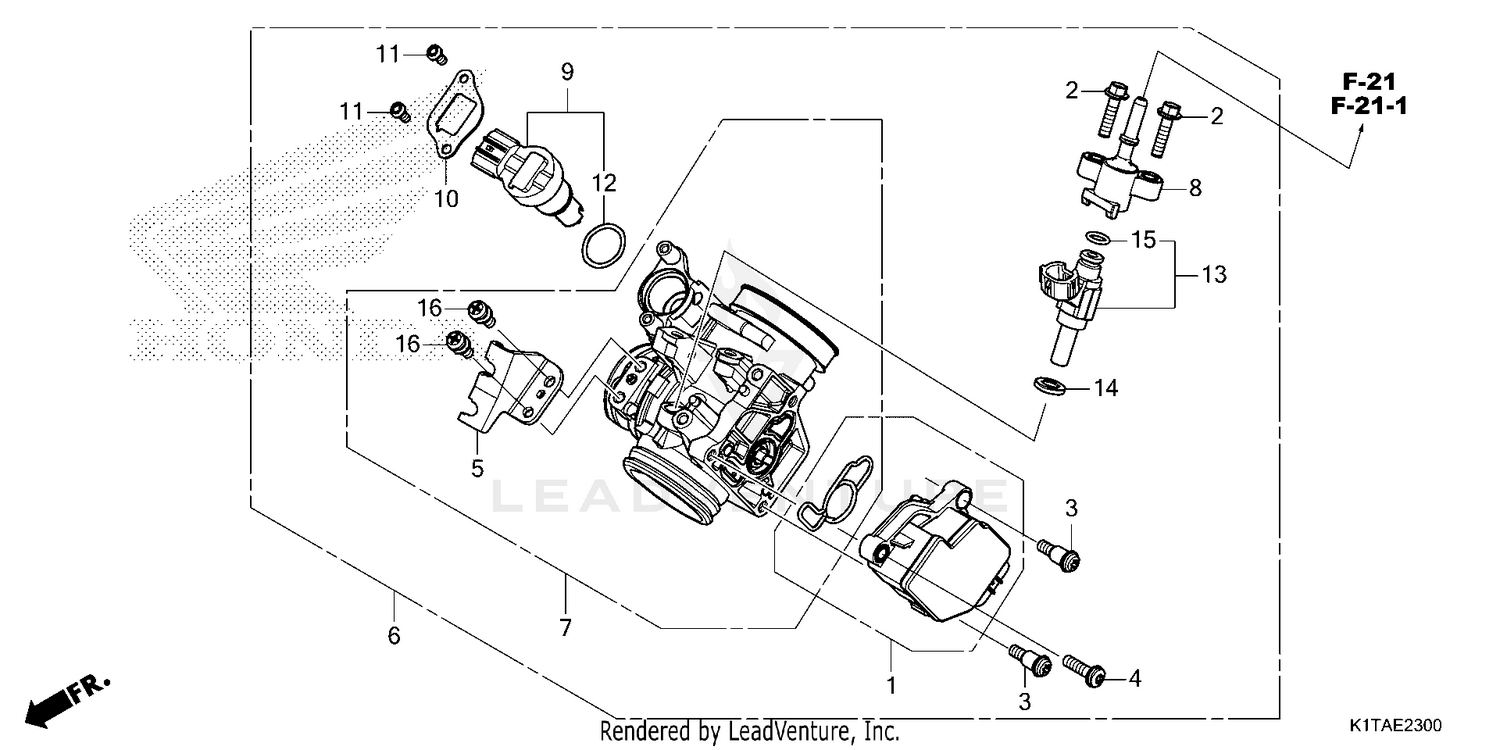

| Ref | Part Number | Description |
|---|
| 1 |
16060-KZZ-D21 |
SENSOR SET Price: $90.84 |
| 2 |
16080-KPH-701 |
BOLT, FLANGE (5X20) Price: $5.65 |
| 3 |
16081-KYJ-901 |
SCREW, TORX (5X8.7) Price: $3.13 |
| 4 |
16082-KYJ-901 |
SCREW, TORX (5X17) Price: $2.47 |
| 5 |
16169-MFR-671 |
STAY, WIRE Price: $19.55 |
| 6 |
16400-K1T-E11 |
BODY ASSY., THROTTLE (GQ9UA A) Price: $412.95 |
| 7 |
16410-K1T-E11 |
BODY SET Price: $116.87 |
| 8 |
16422-K1T-E11 |
JOINT, INJECTOR Price: $85.15 |
| 9 |
16430-KYJ-901 |
VALVE SET, IDLE AIR CONTROL Price: $189.13 |
| 10 |
16432-MFE-641 |
PLATE, IDLE AIR CONTROL VALVE Price: $8.31 |
| 11 |
16433-HN8-A61 |
SCREW, TORX Price: $0.42 |
| 12 |
16435-HN8-A61 |
O-RING (17.8X1.9) Price: $10.73 |
| 13 |
16450-K1T-E11 |
INJECTOR ASSY., FUEL Price: $75.64 |
| 14 |
16472-MKP-T00 |
SEAL RING, INJECTOR Price: $36.18 |
| 15 |
91301-MKP-T01 |
O-RING Price: $14.67 |
| 16 |
93892-05012-08 |
SCREW-WASHER (5X12) (Honda Code 0368621) Price: $1.20 |
