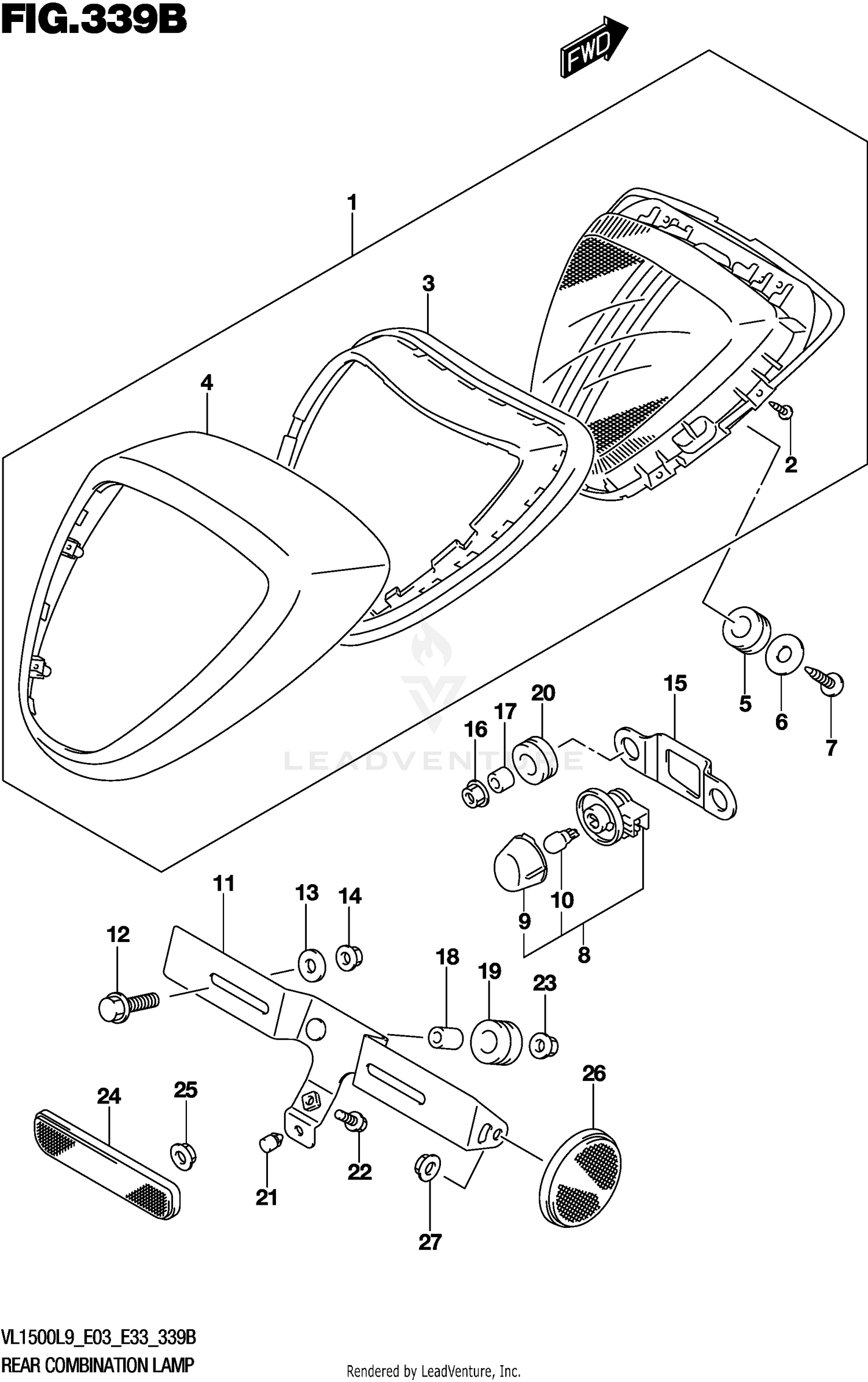

REAR COMBINATION LAMP (VL1500BL9 E33)
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35710-06JB0 | LAMP ASSY Price: $943.01 |
| 5 | 09320-10067 | CUSHION Price: $3.83 |
| 6 | 09160-05501 | WASHER (5.5X20X1.2) Price: $2.25 |
| 7 | 03541-0512A | SCREW Price: $1.65 |
| 8 | 35910-14F01 | LAMP ASSY,LICENSE Price: $32.64 |
| 10 | 09471-12216 | BULB (12V5W) Price: $6.53 |
| 11 | 35927-06J30 | BRACKET Price: $40.74 |
| 12 | 09116-06168 | BOLT (6X16) Price: $3.02 |
| 13 | 09160-06077 | WASHER (6.5X20X1.2) Price: $2.30 |
| 14 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 15 | 35928-43H00 | BRACKET,LICENSE LAMP Price: $12.39 |
| 16 | 09159-05049 | NUT Price: $2.43 |
| 17 | 09180-05066 | SPACER (5.5X9.5X10.5) Price: Call Us |
| 18 | 09180-06290 | SPACER (6.5X10X12) Price: $2.45 |
| 19 | 09320-10051 | CUSHION Price: $3.80 |
| 20 | 09320-10073 | CUSHION This part replaces 09320-10054. Price: $2.39 |
| 21 | 09321-06036 | CUSHION This part replaces 09321-06013. Price: $1.84 |
| 22 | 01550-0625A | BOLT (6X25) Price: $2.37 |
| 23 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 24 | 35970-05H00 | REFLECTOR ASSY,REAR Price: $31.69 |
| 25 | 08316-1005A | NUT Price: $2.64 |
| 26 | 35970-14A20 | REFLECTOR ASSY, RR SIDE Price: $19.20 |
