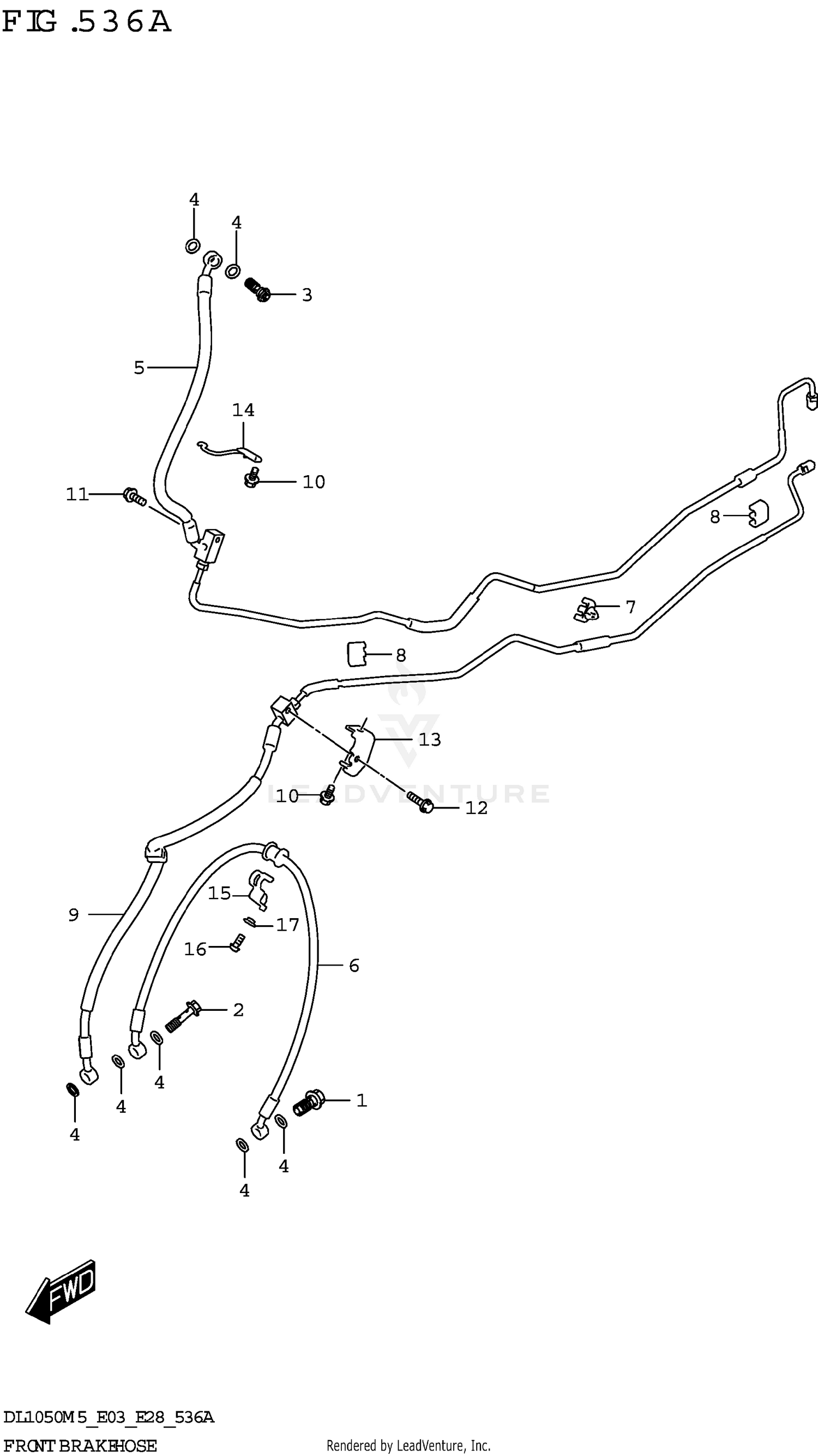

FRONT BRAKE HOSE (DL1050RJ)
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 09360-10062 | UNION This part replaces 09360-10042. Price: $7.84 |
| 2 | 09360-10069 | BOLT Price: $6.53 |
| 3 | 09360-10053 | UNION (10X1.25X22) Price: $9.38 |
| 4 | 09161-10009 | WASHER (10X15X1.5) Price: $2.22 |
| 5 | 59200-06L40 | HOSE ASSY,FR BK MASTER TO UNI Price: $93.56 |
| 6 | 59240-06L20 | HOSE,FR BK CLPR TO CLPR Price: $47.00 |
| 7 | 09403-07344 | CLAMP Price: $2.64 |
| 8 | 09403-06324 | CLAMP Price: $2.48 |
| 9 | 59400-06L40 | HOSE ASSY,FR UNIT TO BK CLPR Price: $88.87 |
| 10 | 01547-0612B | BOLT Price: $1.48 |
| 12 | 01547-0616B | BOLT Price: $2.94 |
| 13 | 59261-06L00 | CLAMP,FR BRAKE HOSE NO.1 Price: $11.43 |
| 14 | 59260-06L00 | GUIDE,FR BRAKE HOSE Price: $13.11 |
| 15 | 59270-15H00 | CLAMP,FR BK HOSE NO.3 Price: $13.85 |
| 16 | 09103-06281 | BOLT (6X14) Price: $3.59 |
