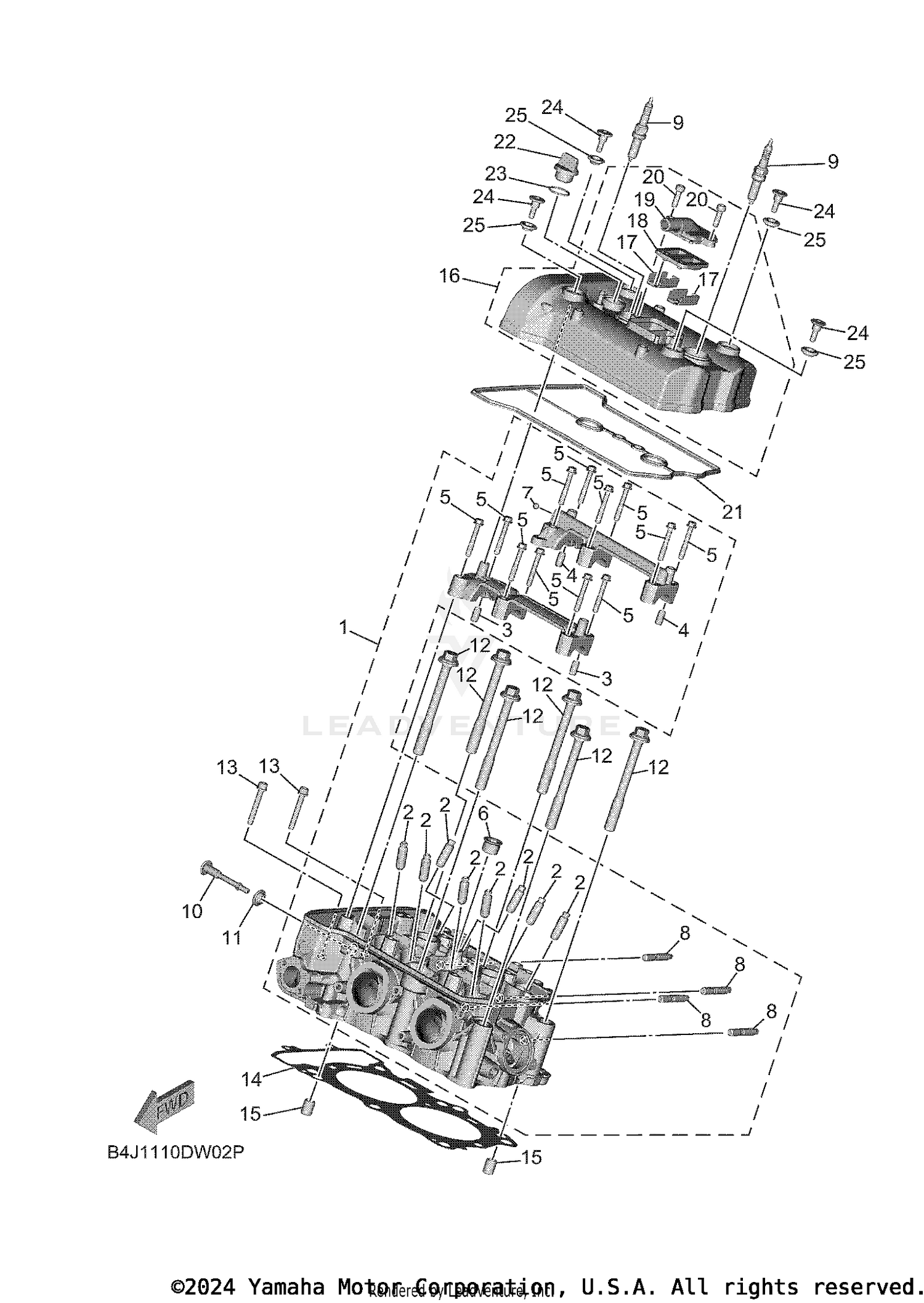

| Ref | Part Number | Description |
|---|
| 1 |
B1R-E1101-09-00 |
CYLINDER HEAD ASSY Price: $506.99 |
| 2 |
23P-11133-10-00 |
GUIDE, VALVE 1 Price: $99.99 |
| 3 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 4 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 5 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 6 |
90340-18002-00 |
PLUG, STRAIGHT SCREW Price: $11.49 |
| 7 |
93501-04011-00 |
BALL Price: $9.49 |
| 8 |
90116-08087-00 |
BOLT, STUD Price: $9.49 |
| 9 |
LMA-R8GI8-00-00 |
PLUG, SPARK (NGK LMAR8GI-8) Price: $23.99 |
| 10 |
90109-06293-00 |
BOLT Price: $15.49 |
| 11 |
5VY-1111G-00-00 |
RUBBER, MOUNT 1 Price: $13.49 |
| 12 |
90119-12004-00 |
BOLT, WITH WASHER Price: $18.49 |
| 13 |
90110-06081-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.99 |
| 14 |
B1R-11181-00-00 |
GASKET, CYLINDER HEA Price: $57.99 |
| 15 |
99530-12016-00 |
PIN, DOWEL Price: $4.89 |
| 16 |
B1R-E1190-01-00 |
COVER, CYLINDER HEAD 1 This part replaces B1R-E1190-00-00. Price: $108.99 |
| 17 |
5VY-1482K-00-00 |
PLATE Price: $5.49 |
| 18 |
5SL-14890-00-00 |
REED VALVE ASSY Price: $97.99 |
| 19 |
B1R-E4899-00-00 |
CAP, CASE Price: $10.49 |
| 20 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 21 |
B1R-11193-00-00 |
GASKET, HEAD COVER 1 Price: $18.49 |
| 22 |
3Y1-15363-10-00 |
PLUG, OIL Price: $19.99 |
| 23 |
93210-19123-00 |
O-RING Price: $8.99 |
| 24 |
90109-066F0-00 |
BOLT Price: $9.49 |
