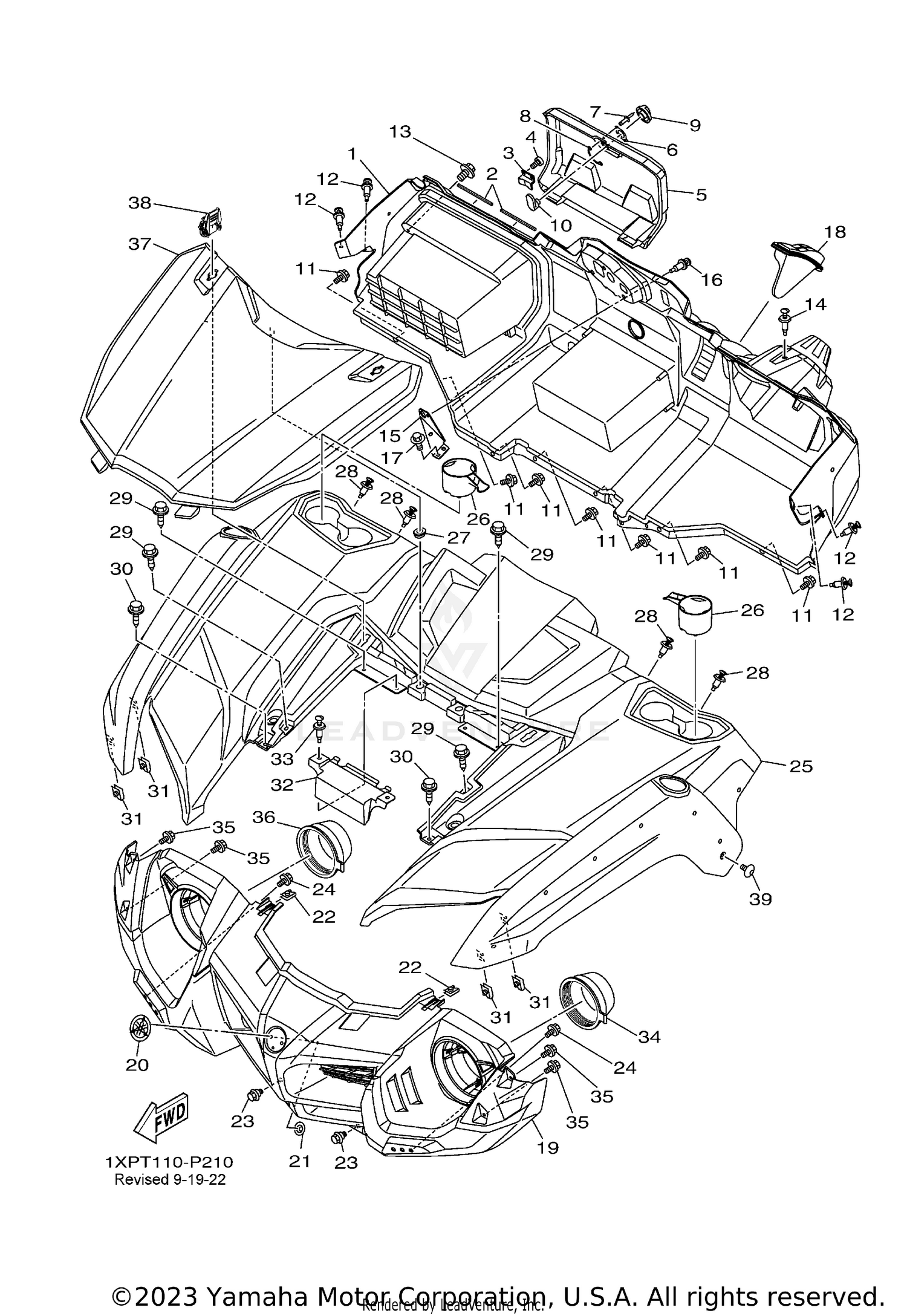

| Ref | Part Number | Description |
|---|
| 1 |
1XD-K7711-00-00 |
PANEL, INSTRUMENT Price: $167.99 |
| 2 |
1XD-F1541-01-00 |
DAMPER 1 This part replaces 1XD-F1541-00-00. Price: $3.75 |
| 3 |
1XD-F139T-00-00 |
BRACKET, COVER Price: $2.90 |
| 4 |
90164-04800-00 |
SCREW, TAPPING Price: $0.60 |
| 5 |
1XD-F160F-00-00 |
LID Price: $24.99 |
| 6 |
1XD-F1515-00-00 |
WASHER, SPECIAL Price: $1.15 |
| 7 |
90267-24143-00 |
RIVET, BLIND Price: $9.49 |
| 8 |
1XD-F1516-00-00 |
WASHER, SPECIAL 2 Price: $2.05 |
| 9 |
1XD-2837G-00-00 |
LOCK 1 Price: $4.40 |
| 10 |
1XD-2837H-00-00 |
LOCK 2 Price: $2.90 |
| 11 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 12 |
90269-07805-00 |
RIVET Price: $1.75 |
| 13 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 14 |
90269-07805-00 |
RIVET Price: $1.75 |
| 15 |
1XD-F258G-00-00 |
BRACKET, DASH UPPER 1 Price: $3.00 |
| 16 |
90269-07805-00 |
RIVET Price: $1.75 |
| 17 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95822-06012-00. Price: $1.95 |
| 18 |
1XD-F6372-00-00 |
COVER, HANDLE LEVER 1 Price: $9.49 |
| 19 |
1XD-F8309-00-00 |
GRILLE, FRONT Price: $96.99 |
| 20 |
1XD-F175B-01-00 |
TUNING FORK MARK Price: $15.49 |
| 21 |
90183-06071-00 |
NUT, SPRING Price: $0.80 |
| 22 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 23 |
90109-06202-00 |
BOLT Price: $3.10 |
| 24 |
90119-06018-00 |
BOLT, WITH WASHER This part replaces 90119-06215-00. Price: $9.49 |
| 25 |
B5F-F1510-20-00 |
FRONT FENDER COMP. Price: $405.99 |
| 26 |
2PG-F1596-00-00 |
HOLDER Price: $7.49 |
| 27 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 28 |
90269-07805-00 |
RIVET Price: $1.75 |
| 29 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 30 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 31 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 32 |
1XD-F163A-01-00 |
COVER, REAR FENDER 1 Price: $3.90 |
| 33 |
90269-07805-00 |
RIVET Price: $1.75 |
| 34 |
3B4-28349-00-00 |
CAP Price: $18.99 |
| 35 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 36 |
3B4-28349-00-00 |
CAP Price: $18.99 |
| 37 |
B5F-F197A-20-00 |
HOOD ASSY 3 Price: $227.99 |
| 38 |
1XD-2175K-10-00 |
LEVER, LOCK Price: $12.49 |
