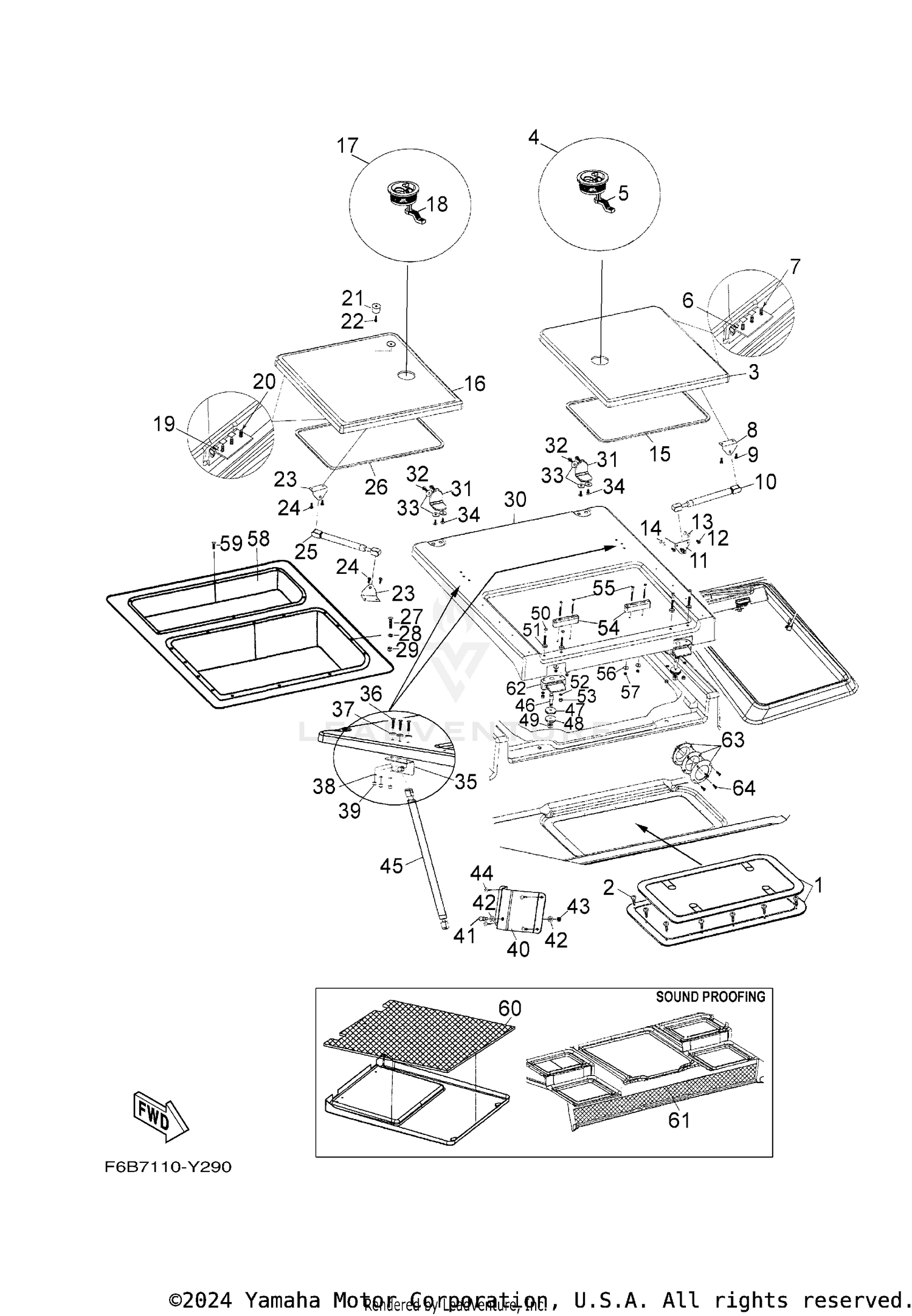

| Ref | Part Number | Description |
|---|
| 1 |
F3M-U5131-00-00 |
HATCH,TANK 1 Price: $222.99 |
| 2 |
90167-08S12-00 |
SCREW, TAPPING Price: $5.99 |
| 3 |
F4T-U517H-00-00 |
LID HATCH Price: $618.99 |
| 4 |
F3H-U5540-00-00 |
LOCK ASSY. Price: $42.99 |
| 5 |
F3H-U2844-00-00 |
LEVER, HATCH LOCK Price: $9.99 |
| 6 |
F4A-U2816-10-00 |
HINGE 1 Price: $48.99 |
| 7 |
90162-12SA1-00 |
SCREW, TAPPING Price: $0.20 |
| 8 |
F3F-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $11.99 |
| 9 |
90167-10S08-00 |
SCREW, #10 X 1/2" Price: $4.99 |
| 10 |
F4T-U2896-00-00 |
SUPPORT, HATCH 2 Price: $66.99 |
| 11 |
F1C-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $11.99 |
| 12 |
90157-10S16-00 |
SCREW, PAN HEAD Price: $4.99 |
| 13 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 14 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 15 |
F4A-U3262-50-00 |
SEAL Price: $41.99 |
| 16 |
F4T-U517H-10-00 |
LID HATCH Price: $610.99 |
| 17 |
F3H-U5540-00-00 |
LOCK ASSY. Price: $42.99 |
| 18 |
F3H-U2844-00-00 |
LEVER, HATCH LOCK Price: $9.99 |
| 19 |
F4A-U2816-10-00 |
HINGE 1 Price: $48.99 |
| 20 |
90162-12SA1-00 |
SCREW, TAPPING Price: $0.20 |
| 21 |
F1C-U5741-01-00 |
CUSHION, RUBBER Price: $5.99 |
| 22 |
90167-06S10-00 |
SCREW, TAPPING Price: $5.99 |
| 23 |
F3F-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $11.99 |
| 24 |
90167-10S08-00 |
SCREW, #10 X 1/2" Price: $4.99 |
| 25 |
F4T-U2896-10-00 |
SUPPORT, HATCH 2 Price: $88.99 |
| 26 |
F4T-U3262-20-00 |
SEAL Price: $33.99 |
| 27 |
90151-14S24-00 |
SCREW, COUNTERSUNK Price: $0.45 |
| 28 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 29 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 30 |
F3M-U516A-00-00 |
ENGINE HATCH COMP. Price: $673.99 |
| 31 |
F1T-U2826-30-00 |
HINGE 5 Price: $23.99 |
| 32 |
90149-14SD2-00 |
SCREW Price: $5.99 |
| 33 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 34 |
90149-14SA1-00 |
SCREW Price: $5.99 |
| 35 |
F3M-U288B-10-00 |
BASE, HATCH SUPPORT Price: $34.99 |
| 36 |
90152-14S24-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 37 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 38 |
90209-14SA6-00 |
WASHER Price: $5.99 |
| 39 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 40 |
F3M-U2899-10-00 |
BRACKET, HATCH SUPPORT 2 Price: $61.99 |
| 41 |
F3M-U146E-00-00 |
STUD, JOINT BALL Price: $17.99 |
| 42 |
90201-15S00-00 |
WASHER, 5/16" FLAT Price: $0.15 |
| 43 |
90185-15S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 44 |
90160-12S16-00 |
SCREW, ROUND TAPPING Price: $5.99 |
| 45 |
F3M-U2896-10-00 |
SUPPORT, HATCH 2 Price: $37.99 |
| 46 |
GP1-U3774-10-00 |
PIN Price: $12.99 |
| 47 |
90209-17SA5-00 |
WASHER Price: $5.99 |
| 48 |
GP1-U5194-01-00 |
WASHER, SPECIAL Price: $17.99 |
| 49 |
95680-10100-00 |
NUT, U Price: $6.99 |
| 50 |
90152-14S40-00 |
SCREW, COUNTERSUNK Price: $0.95 |
| 51 |
90209-14SA6-00 |
WASHER Price: $5.99 |
| 52 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 53 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 54 |
F1C-U3748-11-00 |
BRACKET, SEAT FITTING Price: $32.99 |
| 55 |
90152-10S36-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 56 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 57 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 58 |
F4T-U4629-10-00 |
TRAY Price: $177.99 |
| 59 |
90161-08S16-00 |
SCREW, COUNTERSUNK(# This part replaces 90151-08SA2-00. Price: $4.99 |
| 60 |
F4T-U5164-00-00 |
SOUND-PROOF 1 Price: $221.99 |
| 61 |
F4T-U5165-00-00 |
SOUND-PROOF 2 Price: $177.99 |
| 62 |
GJ3-63850-03-00 |
SEAT LOCK ASSY Price: $70.49 |
| 63 |
F2D-U273A-00-00 |
PLATE 2 ASSY Price: $32.99 |
