| Ref | Part Number | Description |
|---|
| 1 |
76110-758-L02 |

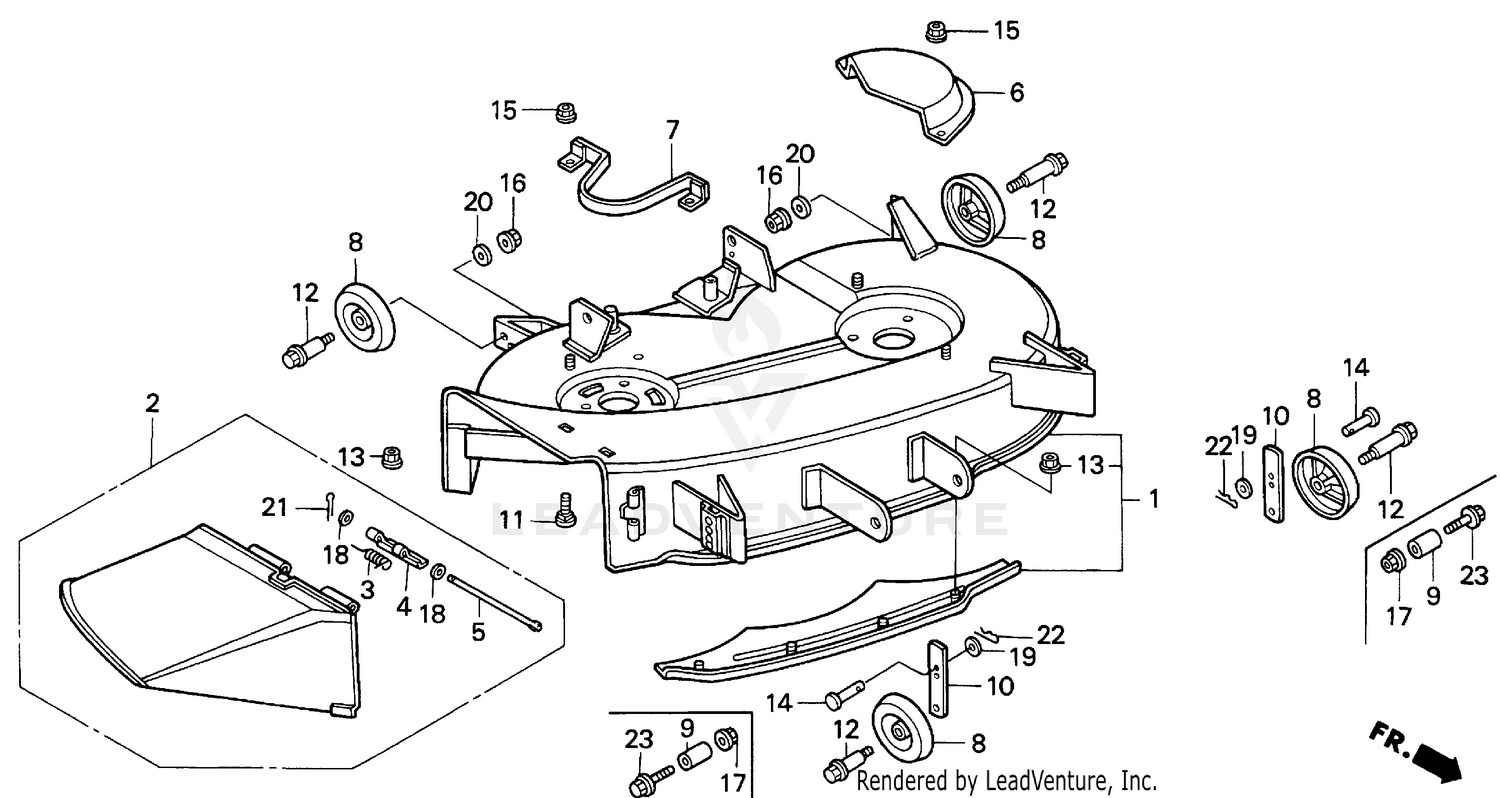

HOUSING, CUTTER Price: $1,329.28 |
| 2 |
76150-758-L01 |
ADAPTER, DISCHARGE Price: $111.74 |
| 3 |
76152-758-L00 |
SPRING, DISCHARGE ADAPTER Price: $6.06 |
| 4 |
76153-758-L00 |
HINGE, DISCHARGE ADAPTER Price: $16.18 |
| 5 |
76154-758-L00 |
PIN, DISCHARGE ADAPTER (NA USE ALT:06814-V09-A01) Price: Call Us |
| 6 |
76156-758-L00 |
COVER, L. BELT Price: $45.84 |
| 7 |
76183-758-L21 |
STOPPER, BELT Price: $37.14 |
| 8 |
76231-763-A00 |
ROLLER, ANTI-SCALP Price: $25.72 |
| 9 |
76232-758-L00 |
COLLAR, ANTI-SCALP ROLLER (12.7X15.9X39.5) Price: $6.02 |
| 10 |
76285-758-L02 |
ARM, ROLLER (12MM) Price: $19.30 |
| 11 |
90101-963-000 |
BOLT, SPECIAL (9X15) Price: $4.20 |
| 12 |
90105-751-000 |
BOLT, ANTI-SCALP ROLLER Price: $14.94 |
| 13 |
94050-08000 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143). Price: $1.18 |
| 14 |
90755-758-L00 |
PIN, ROLLER ARM (8X22) Price: $4.30 |
| 15 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 16 |
94050-10080 |
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405). Price: $4.74 |
| 17 |
94050-12080 |
NUT, FLANGE (12MM) Price: $2.72 |
| 18 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 21 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.30 |
| 22 |
90651-703-000 |
PIN, SNAP (7MM) Price: $1.42 |
