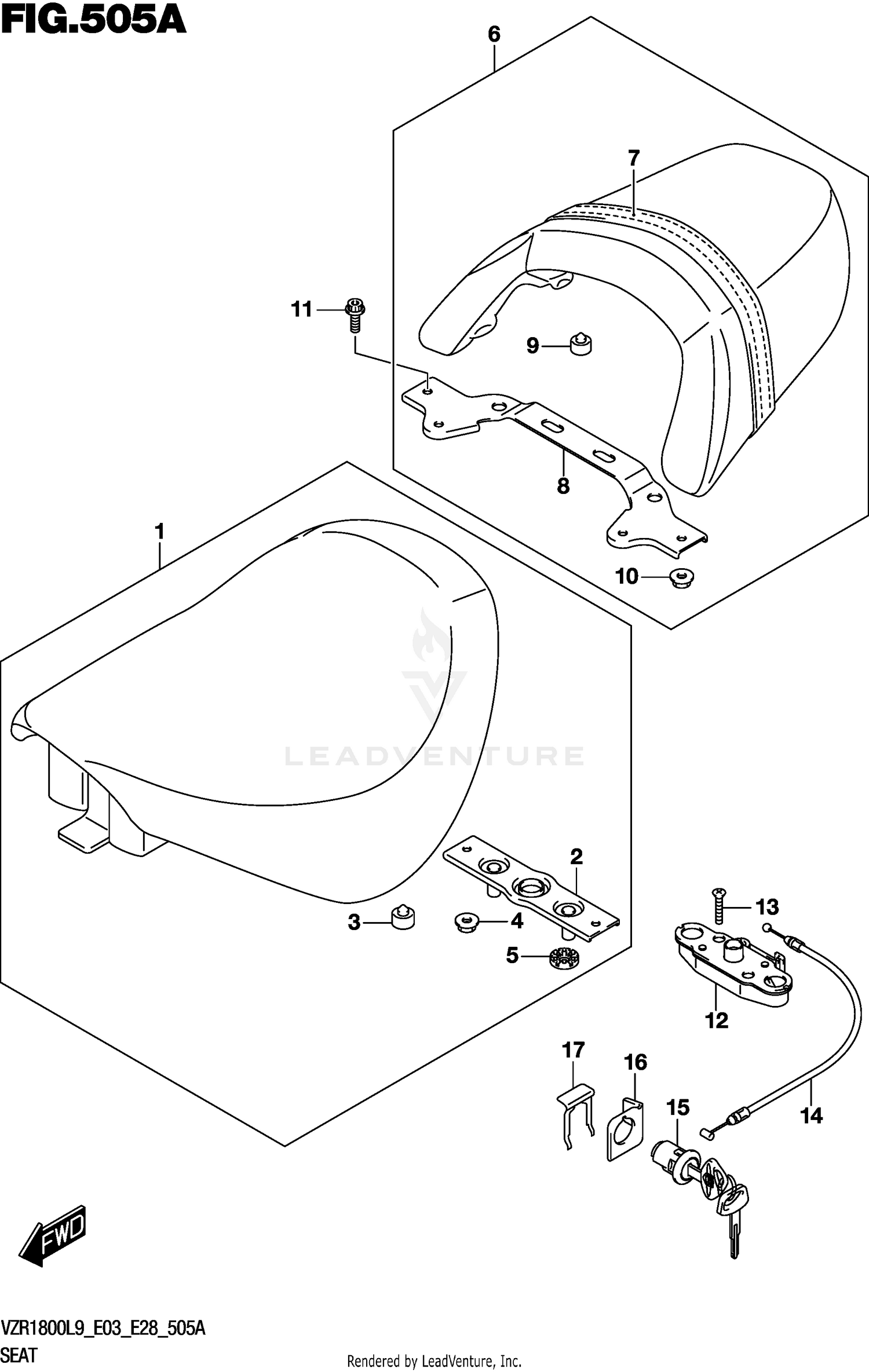

SEAT
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 45100-48G02-48H | SEAT ASSY (BLACK) This part replaces 45100-48G01-48H. Price: $610.22 |
| 4 | 08319-3106A | NUT Price: $2.45 |
| 6 | 45300-48G01-48H | SEAT ASSY,PILLION (BLACK) This part replaces 45300-48G00-48H. Price: $451.98 |
| 7 | 45300-48G01 | BAND ASSY This part replaces 45180-48G00. Price: $24.97 |
| 10 | 08319-3106A | NUT Price: $2.45 |
| 11 | 07120-0616A | BOLT Price: $3.08 |
| 12 | 45220-47H00 | BRACKET,SEAT SUPPORT Price: $149.46 |
| 13 | 02122-0630A | SCREW Price: $2.12 |
| 14 | 45280-48G00 | CABLE,SEAT LOCK Price: $27.36 |
| 15 | 95700-14810 | LOCK SET, SEAT This part replaces 95700-14F00. Price: $132.54 |
| 16 | 45288-14F00 | GUIDE,SEAT LOCK CABLE Price: $6.63 |
