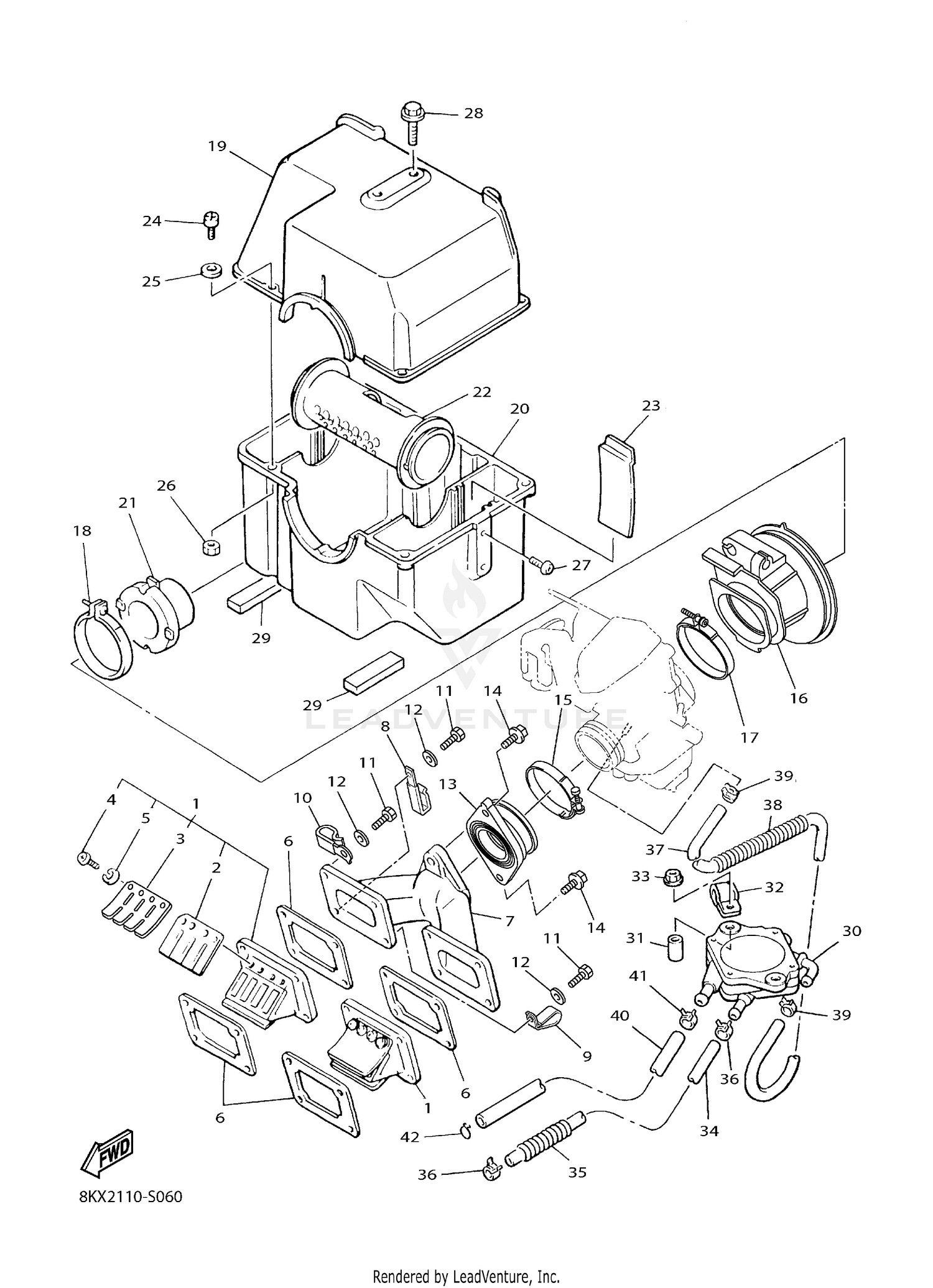

INTAKE [106332] — Parts Catalog

Parts (40)

Ref	Part Number	Description
2	3021-113	Reed, Valve Price: $14.55
3	3021-114	Stopper, Reed Valve Price: $4.99
4	3021-668	Screw, Pan Head Price: $0.79
5	3021-532	Washer Price: $1.49
6	3021-260	Gasket, Manifold Price: $4.72
7	3020-730	Joint, Carburetor Price: $168.43
8	3021-478	Clamp Price: $4.95
9	3021-465	Clamp Price: $4.19
10	3021-477	Clamp Price: $4.94
11	3021-658	Bolt, Hexagon Price: $2.34
12	3020-107	Washer Price: $0.82
13	3021-111	Manifold, Intake Price: $60.43
14	3021-594	Bolt, Flange Price: $4.15
15	3021-462	Hose Clamp Assembly Price: $6.69
16	3021-123	Joint, Air Cleaner 1 Price: $26.90
17	3021-463	Hose Clamp Assembly Price: $10.05
18	3021-464	Hose Clamp Assembly Price: $15.67
19	3020-990	Silencer, Intake 1 Price: $138.95
20	3020-991	Silencer, Intake 2 Price: $197.95
21	3020-732	Pipe Price: $37.95
22	3020-992	Pipe Price: $37.75
23	3020-993	Plate Price: $4.69
24	3021-670	Screw, Pan Head Price: $2.34
25	3021-535	Washer, Plate Price: $1.19
26	3021-598	Nut, Hexagon Price: $0.89
27	3021-671	Screw, Pan Head Price: $0.89
28	3021-269	Bolt, Flange Price: $2.34
29	3020-731	Damper 1 Price: $4.48
30	3020-894	Fuel Pump Assembly Price: $244.95
31	3021-425	Collar Price: $10.05
32	3021-479	Clamp Price: $4.49
33	3021-618	Nut, Flange Price: $1.49
34	3021-455	Hose (L310) Price: $23.53
35	3021-497	Spring, Compression Price: $5.95
36	3021-486	Clip Price: $3.19
37	3021-451	Hose (L420) Price: $29.95
38	3021-498	Spring, Compression Price: $5.95
39	3021-484	Clip Price: $0.79
40	3021-454	Hose (L80) Price: $7.81
41	3021-486	Clip Price: $3.19
