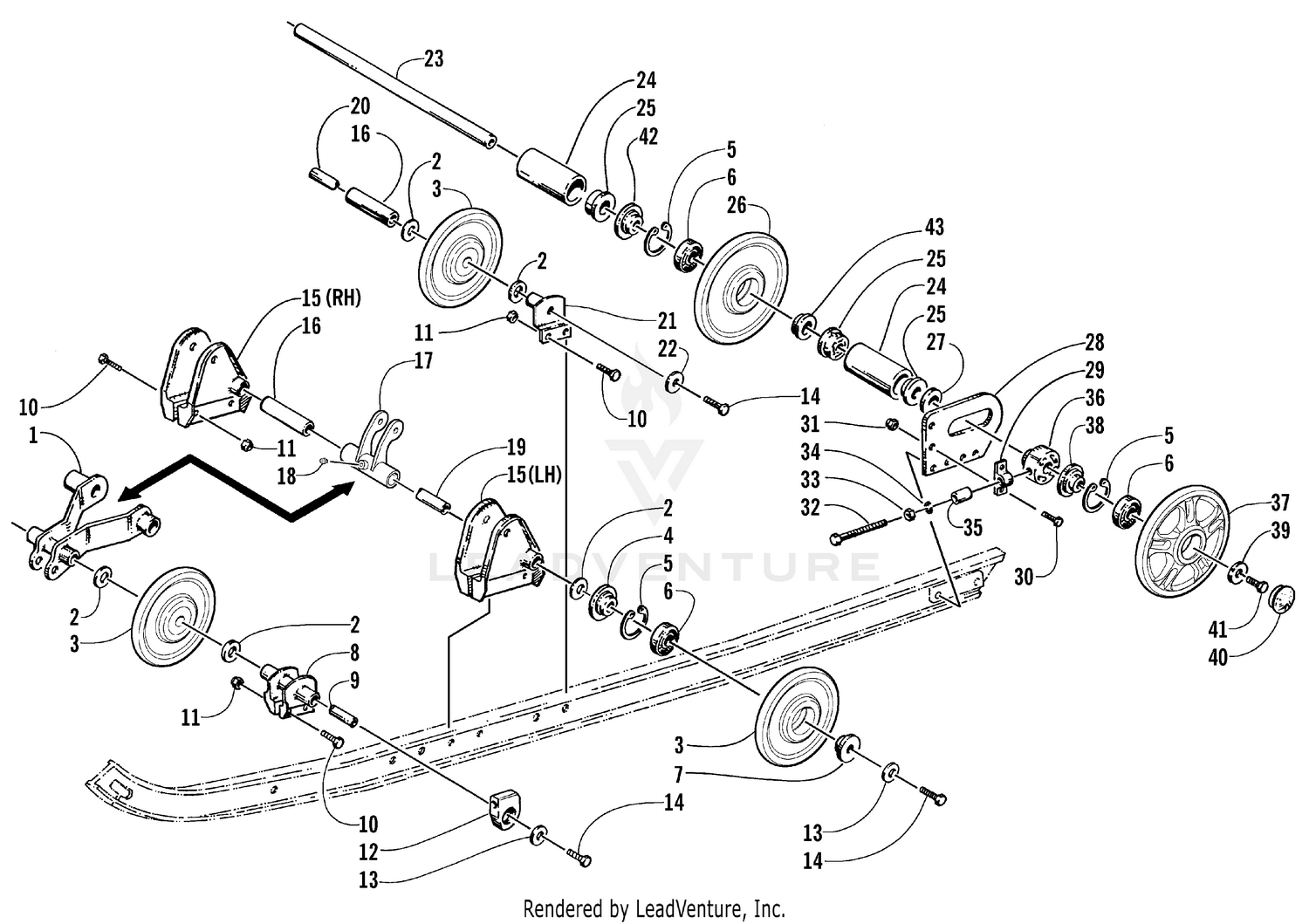

IDLER WHEEL ASSEMBLY [77086]

Parts (38)

Ref	Part Number	Description
1	0704-319	Bracket, Front Shock Price: $41.95
2	0123-439	Washer Price: $4.04
4	0123-343	WASHER,WEAR-BLACK Price: $0.25
5	0123-798	Ring, Retaining Price: $1.80
6	0107-598	Bearing Price: $13.28
7	0123-341	Insert, Wheel - Outside Price: $1.39
8	0704-201	Bracket Price: $24.66
9	0604-578	Axle, Idler Wheel Price: $36.95
10	8002-131	Screw, Cap Price: $1.20
11	8040-426	Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79
12	2604-515	Slide, Spring Price: $7.23
13	0123-260	Washer Price: $1.66
14	8012-132	Screw, Cap Price: $0.49
15	0704-190	Bracket, Mounting - Right Price: $34.95
15	0704-191	Bracket, Mounting - Left Price: $35.95
16	0603-105	Spacer Price: $15.71
19	0604-576	Axle, Idler Wheel Price: $23.95
20	0604-142	Axle, Inner Price: $32.95
21	0704-196	Support, Idler Wheel Price: $31.95
22	0623-140	Washer Price: $0.84
23	0604-208	Axle, Rear Price: $58.95
24	0604-730	Spacer, Rear Idler Wheel Price: $20.16
25	0604-968	Bushing, Spacer - Rear Wheel Price: $10.85
27	0623-220	Washer Price: $2.49
28	1604-153	Housing, Rear Axle Price: $21.95
29	0604-206	Adjuster, Track Price: $14.23
30	8002-041	Screw, Cap Price: $4.29
31	8040-366	Nut, Lock Price: $0.35
32	0623-123	Screw, Cap Price: $2.66
33	8042-486	Nut Price: $1.77
34	8051-277	Washer, Lock Price: $1.70
35	0604-298	SPACER,SHOCK LINK-Z&Y Price: $36.95
36	0604-165	Bushing, Adjuster Price: $9.03
38	1604-774	INSERT,5/8 BORE X 2" (LONG) Price: $7.23
39	0123-570	Washer Price: $7.23
40	0604-246	Cap, Idler Wheel Price: $3.38
41	8002-223	Screw, Cap Price: $10.85
42	1604-773	Insert, 5/8 Bore X 1.580 OD Price: $5.81
