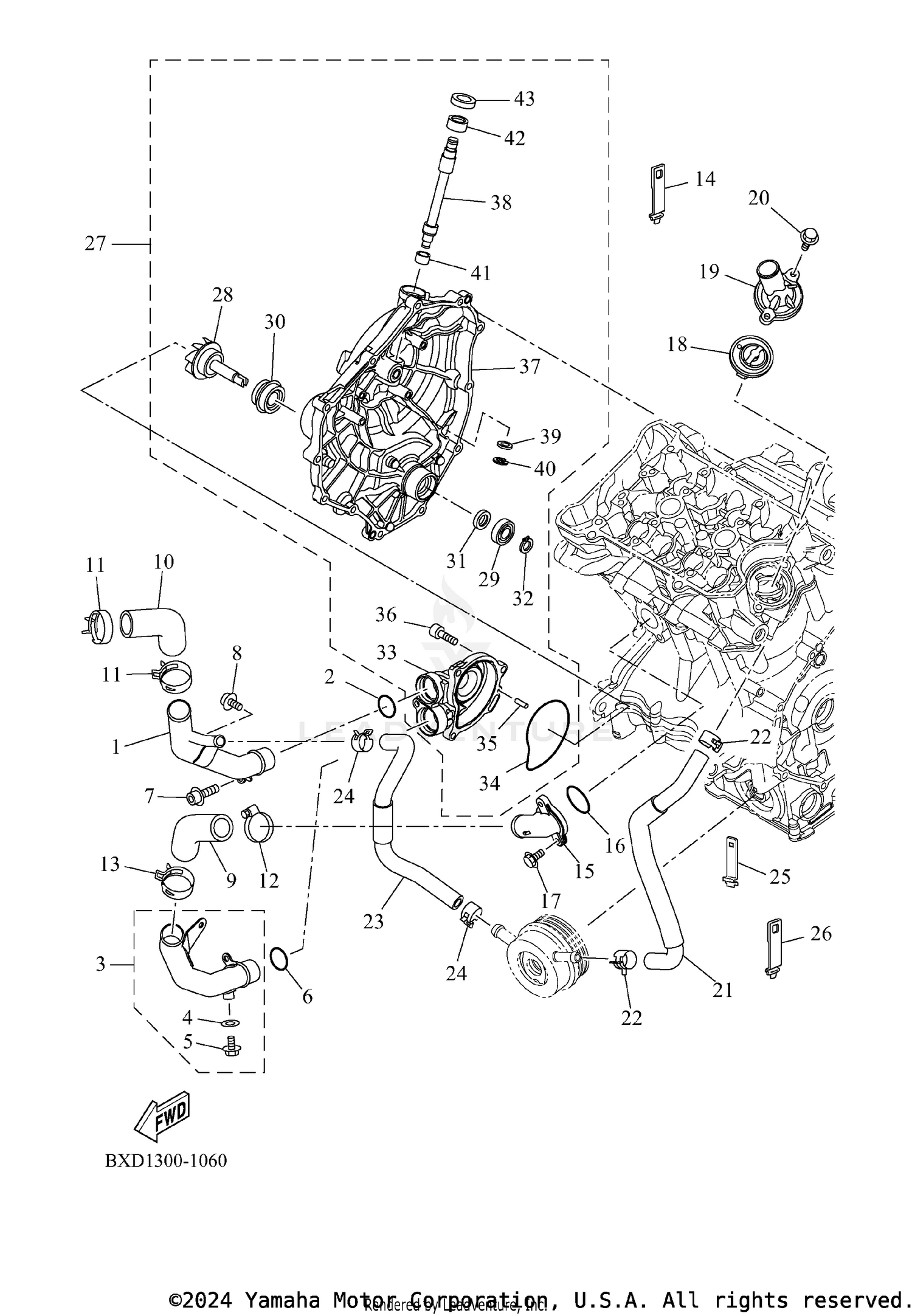

| Ref | Part Number | Description |
|---|
| 1 |
BU3-E2481-00-00 |
PIPE 1 Price: Call Us |
| 2 |
93210-23802-00 |
O-RING Price: Call Us |
| 3 |
BU3-E2482-00-00 |
PIPE 2 Price: Call Us |
| 4 |
90430-06014-00 |
GASKET Price: $8.60 |
| 5 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 6 |
93210-23802-00 |
O-RING Price: Call Us |
| 7 |
91314-06014-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.50 |
| 8 |
90110-06152-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 9 |
BU3-E2576-00-00 |
HOSE 1 Price: Call Us |
| 11 |
90467-290A0-00 |
CLIP Price: $18.49 |
| 12 |
90450-35001-00 |
HOSE CLAMP ASSY Price: $6.49 |
| 13 |
90467-290A0-00 |
CLIP Price: $18.49 |
| 14 |
BEH-1246A-00-00 |
COVER 1 Price: $13.99 |
| 15 |
BU3-E2469-00-00 |
JOINT 1 Price: Call Us |
| 16 |
93210-33006-00 |
O-RING Price: $5.49 |
| 17 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95812-06020-00. Price: $3.50 |
| 18 |
1WS-12410-01-00 |
THERMOSTAT ASSY Price: $39.99 |
| 19 |
BU3-E2413-00-00 |
COVER, THERMOSTAT Price: Call Us |
| 20 |
95817-06020-00 |
BOLT, FLANGE Price: $3.50 |
| 21 |
BRL-12588-00-00 |
HOSE 5 Price: $26.99 |
| 22 |
90467-170A6-00 |
CLIP Price: $2.85 |
| 23 |
BRL-12589-00-00 |
HOSE 6 Price: $15.99 |
| 24 |
90467-170A6-00 |
CLIP Price: $2.85 |
| 25 |
5JW-14723-00-00 |
COVER 1 Price: $18.99 |
| 26 |
BEH-1246A-00-00 |
COVER 1 Price: $13.99 |
| 27 |
BWM-E2420-00-00 |
WATER PUMP ASSY Price: Call Us |
| 28 |
1WS-12450-00-00 |
IMPELLER SHAFT ASSY Price: $38.99 |
| 29 |
93306-001X3-00 |
BEARING Price: $33.99 |
| 30 |
5VK-12438-00-00 |
SEAL, MECHANICAL Price: $66.99 |
| 31 |
2CR-13338-00-00 |
OIL SEAL Price: $10.99 |
| 32 |
99009-12400-00 |
CIRCLIP Price: $3.59 |
| 34 |
1WS-12439-00-00 |
O-RING Price: $8.49 |
| 35 |
93603-12007-00 |
PIN, DOWEL Price: $2.75 |
| 36 |
91314-06025-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06295-00. Price: $9.49 |
| 38 |
2D1-16382-00-00 |
AXLE, PUSH LEVER Price: $91.99 |
| 39 |
92907-08600-00 |
WASHER, PLATE Price: $3.25 |
| 40 |
99080-07600-00 |
CIRCLIP This part replaces 99001-07600-00. Price: $3.55 |
| 41 |
93317-11096-00 |
BEARING Price: $25.99 |
| 42 |
93315-21570-00 |
BEARING Price: $18.49 |
