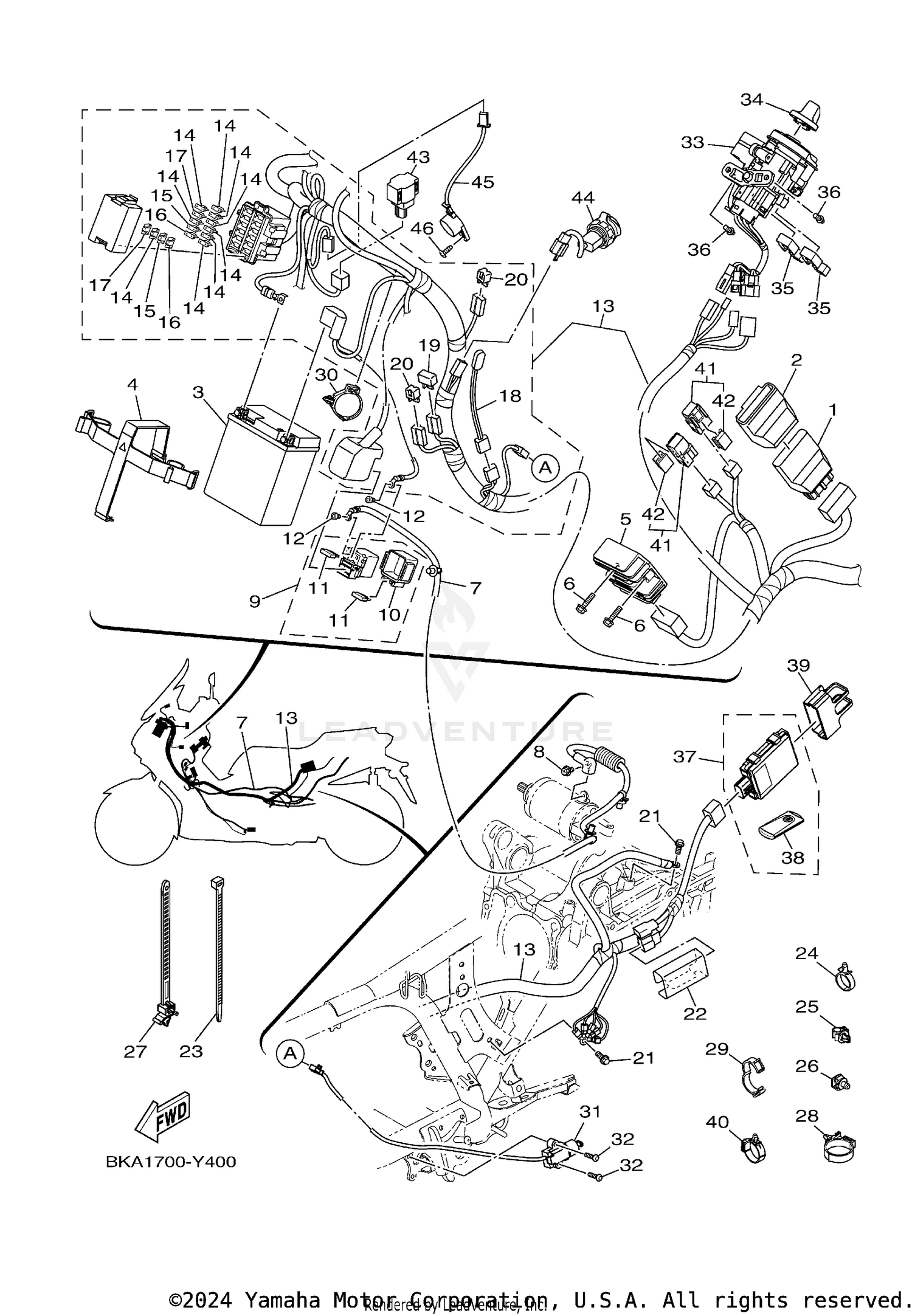

| Ref | Part Number | Description |
|---|
| 1 |
BKA-H591A-01-00 |
ENGINE CONTROL UNIT ASSY This part replaces BKA-H591A-00-00. Price: $168.99 |
| 2 |
B5X-H2591-00-00 |
BAND Price: $2.20 |
| 3 |
GTZ-8V000-00-00 |
BATTERY (GSGTZ8V) " Price: $103.99 |
| 4 |
B74-H2131-00-00 |
BAND, BATTERY Price: $13.49 |
| 5 |
2GS-H1960-10-00 |
RECTIFIER & REGULA Price: $34.99 |
| 6 |
95D32-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $1.15 |
| 7 |
B74-H1815-02-00 |
CORD, STARTER MOTOR Price: $33.99 |
| 8 |
90149-05018-00 |
SCREW Price: $8.49 |
| 9 |
B74-H1940-00-00 |
STARTER RELAY ASSY Price: $32.99 |
| 10 |
1WD-H2155-00-00 |
BAND Price: $2.35 |
| 11 |
B74-H2151-A1-00 |
FUSE (20A) Price: $0.85 |
| 12 |
91312-05008-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 13 |
BKA-H2590-20-00 |
WIRE HARNESS ASSY Price: $417.99 |
| 14 |
BKA-H2151-00-00 |
FUSE Price: $1.30 |
| 15 |
BKA-H2151-10-00 |
FUSE Price: $1.30 |
| 16 |
BKA-H2151-60-00 |
FUSE Price: $1.30 |
| 17 |
BKA-H2151-90-00 |
FUSE Price: $1.30 |
| 18 |
1SD-H5700-00-00 |
THERMISTOR ASSY Price: $71.99 |
| 19 |
4WA-81980-00-00 |
DIODE ASSY Price: $32.99 |
| 20 |
3WP-81980-00-00 |
DIODE ASSY Price: $24.99 |
| 21 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 22 |
2D1-82589-02-00 |
PROTECTER, WIRE HARNESS Price: $11.99 |
| 23 |
1UA-82591-00-00 |
BAND This part replaces 90464-36800-00. Price: $5.49 |
| 24 |
90464-24230-00 |
CLAMP Price: $8.49 |
| 25 |
90464-10008-00 |
CLAMP Price: $3.80 |
| 26 |
90464-12018-00 |
CLAMP Price: $2.65 |
| 28 |
90464-36802-00 |
CLAMP Price: $2.05 |
| 29 |
90464-16003-00 |
CLAMP Price: $7.60 |
| 30 |
90464-34801-00 |
CLAMP Price: $1.25 |
| 31 |
B74-H2566-00-00 |
SWITCH, SIDE STAND Price: $33.99 |
| 32 |
90111-05810-00 |
BOLT, HEX. SOCKET BUTTON Price: $1.05 |
| 33 |
B74-H2501-14-00 |
MAIN SWITCH STEERING LOCK This part replaces B74-H2501-13-00. Price: $137.99 |
| 34 |
B74-H276E-10-00 |
KNOB COMP. Price: $14.49 |
| 35 |
90464-09806-00 |
CLAMP Price: $3.50 |
| 36 |
90109-068D6-00 |
BOLT This part replaces 90109-068D5-00. Price: $3.65 |
| 37 |
BKA-H6260-11-00 |
REMOTE CONT. UNIT ASSY This part replaces BKA-H6260-10-00. Price: $384.99 |
| 38 |
B5X-H6261-15-00 |
XMTR COMP This part replaces B5X-H6261-14-00. Price: $215.99 |
| 39 |
B65-H5546-00-00 |
BAND Price: $2.10 |
| 40 |
90464-30001-00 |
CLAMP Price: $8.49 |
| 41 |
1ST-81950-00-00 |
RELAY ASSY (1ST-00) Price: $19.99 |
| 42 |
5JJ-81952-00-00 |
HOLDER, RELAY Price: $10.99 |
| 43 |
1PA-H2576-01-00 |
SENSOR, LEAN ANGLE This part replaces 1PA-H2576-00-00. Price: $29.99 |
| 44 |
B6H-H254B-00-00 |
TERMINAL COMP. Price: $25.99 |
| 45 |
B3F-H3383-00-00 |
BUZZER Price: $43.99 |
