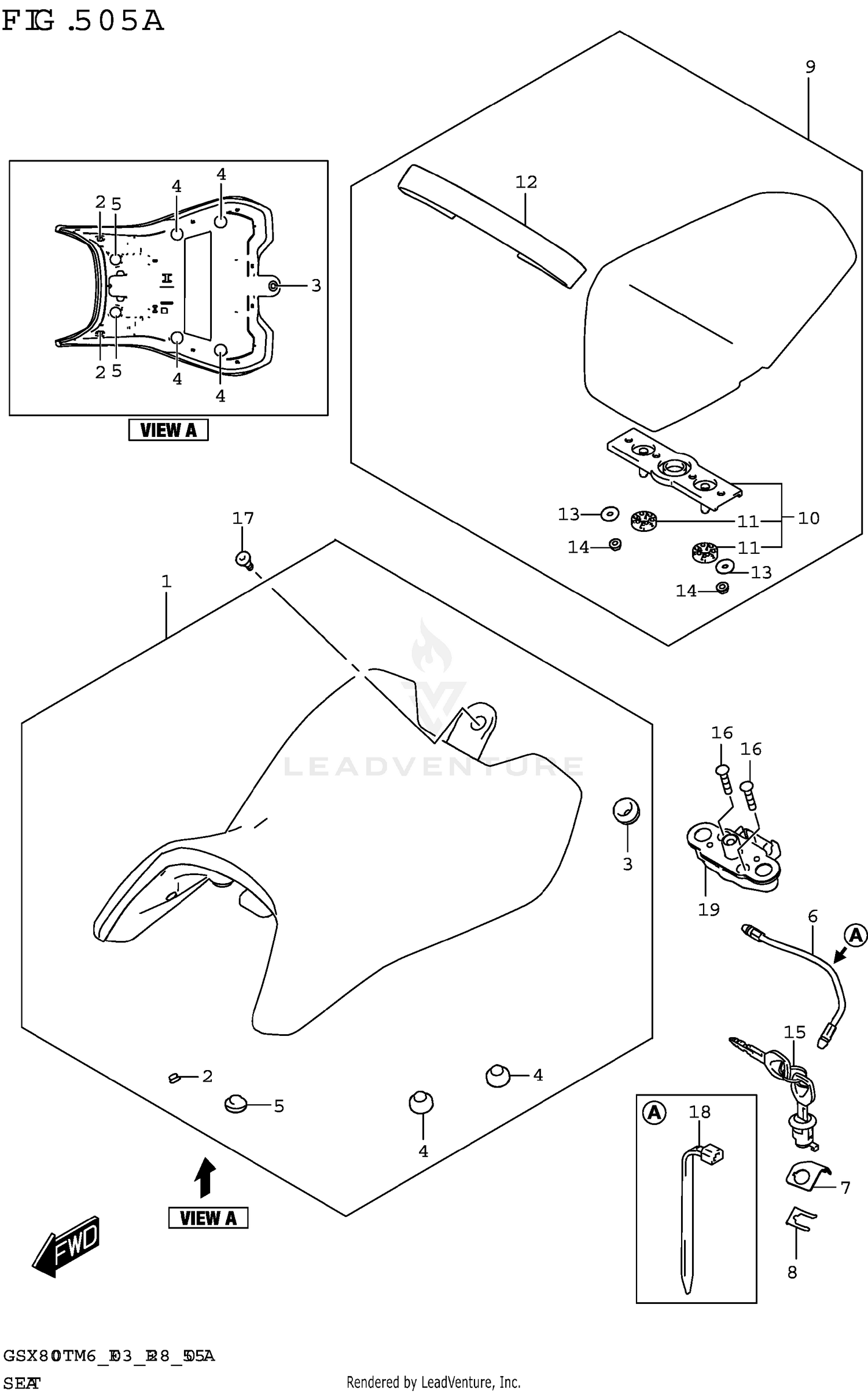

SEAT (GSX800TRQ)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 45100-47L00-B8Q | SEAT ASSY (BLACK) Price: $296.62 |
| 2 | 45148-27J00 | CUSHION,SEAT MOUNT Price: $18.61 |
| 4 | 09321-10012 | CUSHION Price: $3.36 |
| 6 | 45280-20K00 | CABLE, SEAT LOCK Price: $8.97 |
| 7 | 45288-14F00 | GUIDE,SEAT LOCK CABLE Price: $6.63 |
| 8 | 45289-11F00 | PLATE,SEAT LOCK ASSY Price: $7.66 |
| 9 | 45300-47L00-B8Q | SEAT ASSY,PILLION (BLACK) Price: $260.46 |
| 13 | 09160-06154 | WASHER (6.5X20X1.6) Price: $2.10 |
| 14 | 08316-1006B | NUT Price: $3.02 |
| 15 | 95700-14810 | LOCK SET,SEAT Price: $132.54 |
| 16 | 09126-06019 | SCREW (6X30) Price: $2.22 |
| 17 | 09139-06244 | SCREW Price: $5.05 |
| 18 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
