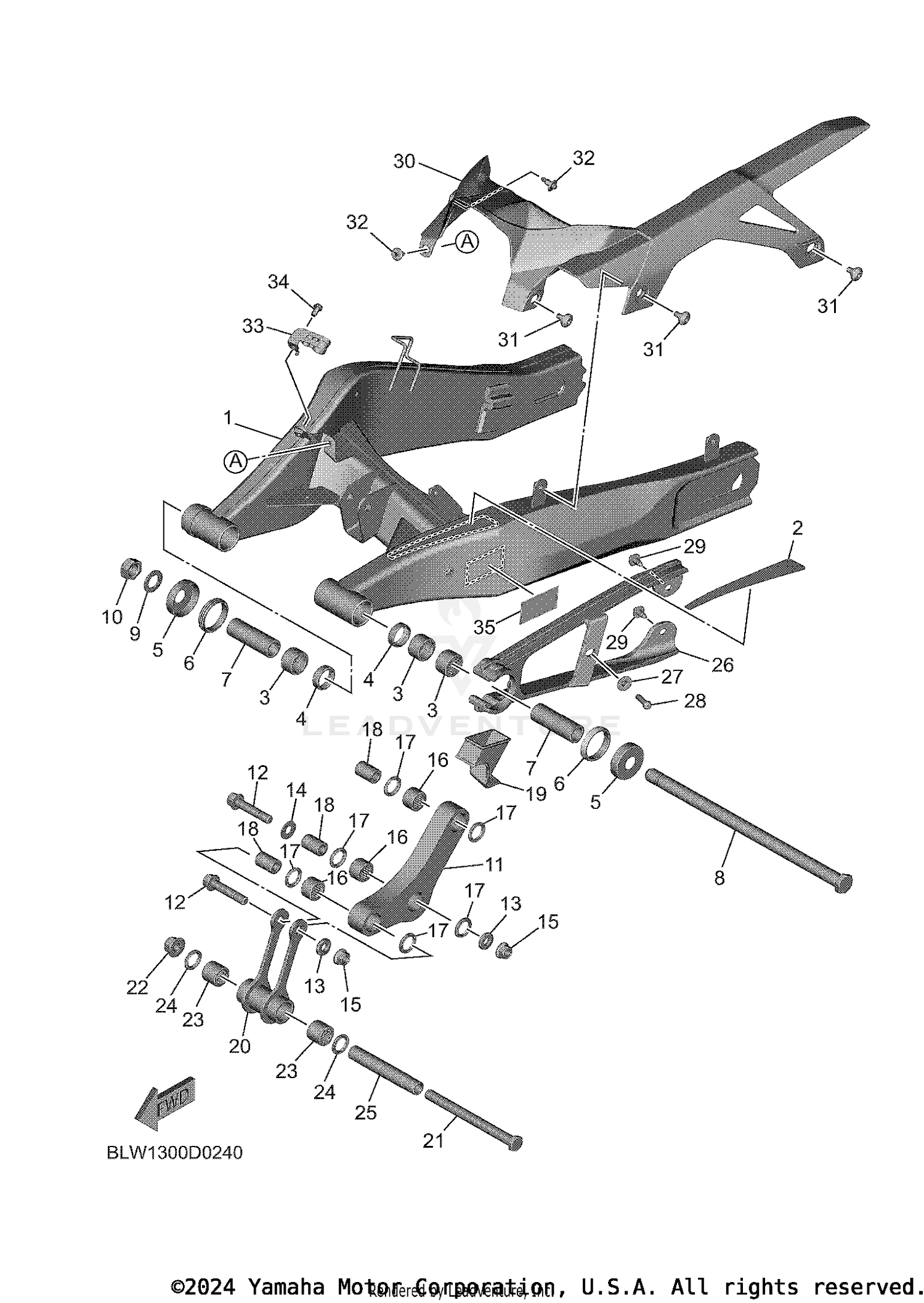

| Ref | Part Number | Description |
|---|
| 1 |
BLW-22110-00-00 |
REAR ARM COMP. Price: $664.99 |
| 2 |
BU2-22358-00-00 |
SEAL 1 Price: $9.49 |
| 3 |
93317-22262-00 |
BEARING Price: $42.99 |
| 4 |
93106-22019-00 |
OIL SEAL (DC 22-28-8) Price: $12.49 |
| 5 |
30X-2219X-00-00 |
COVER Price: $17.99 |
| 6 |
93108-35004-00 |
OIL SEAL (35-41-8) Price: $17.49 |
| 7 |
90380-16158-00 |
BUSH, SOLID Price: $34.99 |
| 8 |
BW3-22141-00-00 |
SHAFT, PIVOT Price: $50.99 |
| 9 |
90201-164H4-00 |
WASHER, PLATE Price: $10.49 |
| 10 |
90185-16002-00 |
NUT, SELF-LOCKING Price: $18.49 |
| 11 |
1WS-2217A-00-00 |
ARM, RELAY Price: $104.99 |
| 12 |
90105-10498-00 |
BOLT, FLANGE Price: $13.99 |
| 13 |
90387-10132-00 |
COLLAR Price: $6.49 |
| 14 |
92990-10200-00 |
WASHER, PLAIN This part replaces 92902-10200-00. Price: $3.72 |
| 15 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 16 |
93315-31758-00 |
BEARING Price: $44.99 |
| 17 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 18 |
90387-1012A-00 |
COLLAR Price: $23.99 |
| 19 |
1WS-22189-00-00 |
BOOT, RUBBER Price: $8.49 |
| 20 |
1WS-2217F-00-00 |
ROD, CONNECTING 1 Price: $68.99 |
| 21 |
90101-12079-00 |
BOLT Price: $9.49 |
| 22 |
95602-12200-00 |
NUT, SELF-LOCKING Price: $5.49 |
| 23 |
93317-31771-00 |
BEARING Price: $39.99 |
| 24 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 25 |
1WS-22184-00-00 |
BUSH Price: $25.99 |
| 26 |
BLW-22151-00-00 |
SEAL, GUARD Price: $42.99 |
| 27 |
90387-06170-00 |
COLLAR Price: $9.49 |
| 28 |
92012-06020-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 29 |
90269-07007-00 |
RIVET Price: $4.40 |
| 30 |
BLW-21650-00-00 |
REAR FENDER COMP. Price: $55.99 |
| 31 |
90109-06346-00 |
BOLT Price: $3.85 |
| 32 |
90269-07007-00 |
RIVET Price: $4.40 |
| 33 |
BLW-2588F-00-00 |
HOLDER, BRAKE HOSE 5 Price: $15.49 |
| 34 |
92017-06010-00 |
BOLT, BUTTON HEAD Price: $5.49 |
