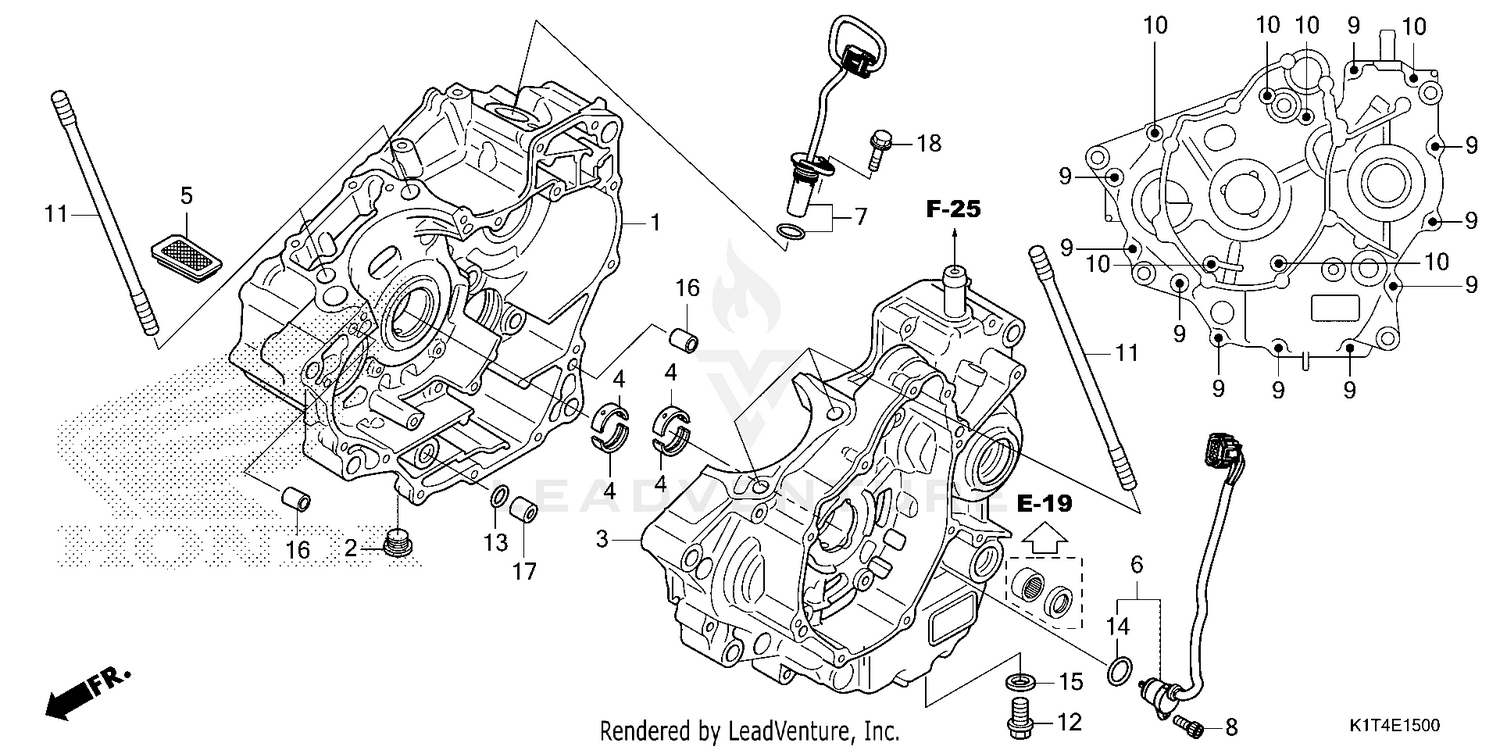

| Ref | Part Number | Description |
|---|
| 1 |
11100-K33-700 |
CRANKCASE, R. Price: $209.87 |
| 2 |
11107-KYJ-900 |
BOLT, SEALING (16MM) Price: $3.60 |
| 3 |
11200-K1T-E10 |
CRANKCASE, L. Price: $210.55 |
| 4 |
13312-K33-D01 |
BEARING A, CRANKSHAFT (BLUE) Price: $14.27 |
| 4 |
13313-K33-D01 |
BEARING B, CRANKSHAFT (BLACK) Price: $14.27 |
| 4 |
13314-K33-D01 |
BEARING C, CRANKSHAFT (BROWN) Price: $14.27 |
| 5 |
15421-KYJ-900 |
SCREEN, OIL FILTER Price: $3.69 |
| 6 |
35759-K1T-E11 |
SWITCH ASSY., CHANGE Price: $96.51 |
| 7 |
37700-KZZ-901 |
SENSOR ASSY., SPEED Price: $52.44 |
| 8 |
90011-MGP-000 |
BOLT, SOCKET KNOCK (6MM) Price: $8.11 |
| 9 |
90014-KYJ-900 |
BOLT, FLANGE (6X40) (NSHF) Price: $0.71 |
| 10 |
90016-KYJ-900 |
BOLT, FLANGE (6X70) (NSHF) Price: $0.98 |
| 11 |
90032-K33-D00 |
BOLT, STUD (10X178) Price: $4.00 |
| 12 |
90061-KYJ-900 |
BOLT, DRAIN PLUG (12MM) Price: $1.09 |
| 13 |
91301-KYJ-901 |
O-RING (11.8X1.9) Price: $0.51 |
| 14 |
91305-KC1-850 |
O-RING (16.5X2.5) Price: $2.24 |
| 15 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 16 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 17 |
94301-12160 |
PIN A, DOWEL (12X16) Price: $2.58 |
