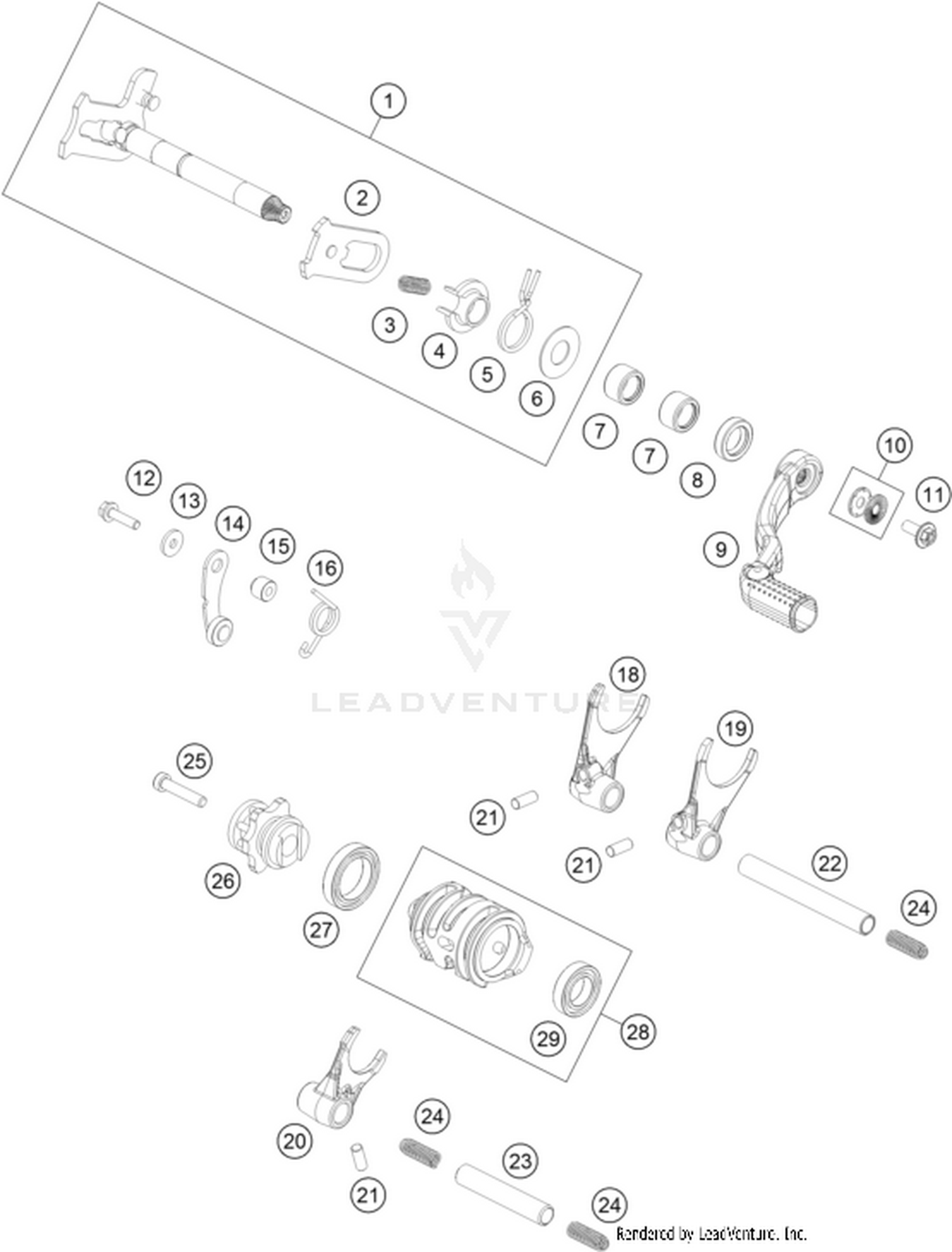

34 SHIFTING MECHANISM
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 50534005044 | Shift shaft cmpl. Price: Call Us |
| 2 | 61234008044 | SLIDING PLATE Price: Call Us |
| 3 | 56534013100 | TENSIONING SPRING 0,8MM Price: Call Us |
| 4 | 54634020000 | SPRING GUIDE Price: Call Us |
| 5 | 54834014000 | RETURN SPRING 03 Price: Call Us |
| 6 | 54634050000 | STOP DISK 14X30X1 Price: Call Us |
| 9 | 50434031000 | SHIFT LEVER CPL. Price: Call Us |
| 10 | 50233041500 | PAIR NORDLOCK WASHER M6 Price: Call Us |
| 11 | 0024060156S | HH collar screw M6x15 TX30 Price: Call Us |
| 12 | 0025050206 | HH collar screw M5x20 TX30 Price: Call Us |
| 13 | 0349000050 | WASHER DIN7349-5X15X2 Price: Call Us |
| 14 | 50334024144 | LOCATING LEVER CPL. 08 Price: Call Us |
| 15 | 54634052300 | SLEEVE FOR LOCKING LEVER Price: Call Us |
| 16 | 54834023000 | LOCKING LEVER SPRING 03 Price: Call Us |
| 18 | 50434003000 | SHIFTING FORK 1ST/3RD GEAR Price: Call Us |
| 20 | 50434001000 | SHIFTING FORK 5/6 GEAR Price: Call Us |
| 21 | 0402061480 | NEEDLE ROLLER DIN5402 6X14,8 Price: Call Us |
| 22 | 54834020000 | SHIFT. RAIL C. SHAFT 250/300 Price: Call Us |
| 23 | 54834019000 | SHIFT. RAIL MAIN SHAFT 250/300 Price: Call Us |
| 24 | 58038023200 | PRESSURE SPRING 0,9MM Price: Call Us |
| 25 | 0012060303 | AH SCREW DIN6912 M6X30 8.8 Price: Call Us |
| 26 | 50434015100 | Shift drum locating cpl. Price: Call Us |
| 27 | 0625618050 | BALL BEARING 61805 C3 Price: Call Us |
| 28 | 50534012033 | Shift roller cpl. Price: Call Us |
