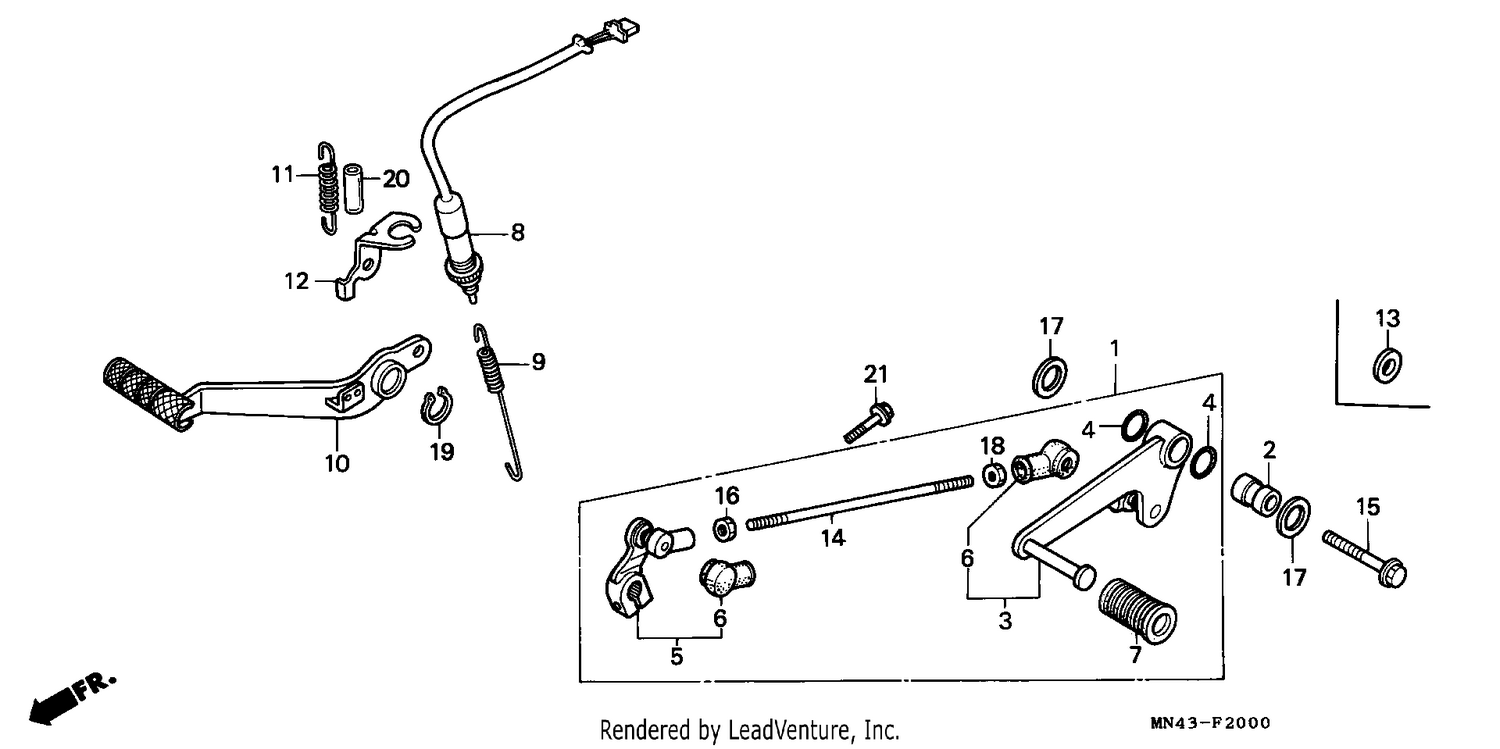

| Ref | Part Number | Description |
|---|
| 1 |
24700MN4000 |
PEDAL ASSY., GEAR CHANGE Price: Call Us |
| 2 |
24705MB0000 |
COLLAR, GEAR CHANGE PEDAL PIVOT Price: Call Us |
| 3 |
24705MN4000 |
PEDAL COMP., CHANGE Price: Call Us |
| 5 |
24710MN4000 |
ARM COMP., CHANGE Price: Call Us |
| 6 |
24724422000 |
COVER, DUST Price: Call Us |
| 7 |
24781KR3770 |
RUBBER, GEAR CHANGE PEDAL Price: Call Us |
| 8 |
35350MF2880 |
SWITCH ASSY., RR. STOP Price: Call Us |
| 9 |
35357KT8000 |
SPRING, STOP SWITCH Price: Call Us |
| 10 |
46500KT8000 |
PEDAL, RR. BRAKE Price: Call Us |
| 11 |
46514MN4000 |
SPRING, BRAKE PEDAL RETURN Price: Call Us |
| 12 |
50352KT8000 |
BRACKET, RR. BRAKE STOP SWITCH Price: Call Us |
| 14 |
90065MN4000 |
BOLT, TIE ROD Price: Call Us |
| 15 |
90122GR2010 |
BOLT, FLANGE, 8X35 Price: Call Us |
| 16 |
90201700000 |
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD) Price: Call Us |
| 18 |
94002060200S |
NUT, HEX., 6MM Price: Call Us |
| 19 |
9451115000 |
CIRCLIP, EXTERNAL, 15MM Price: Call Us |
| 20 |
950034300420 |
TUBE, VINYL, 13X15X40 (95003-43001-10M) Price: Call Us |
