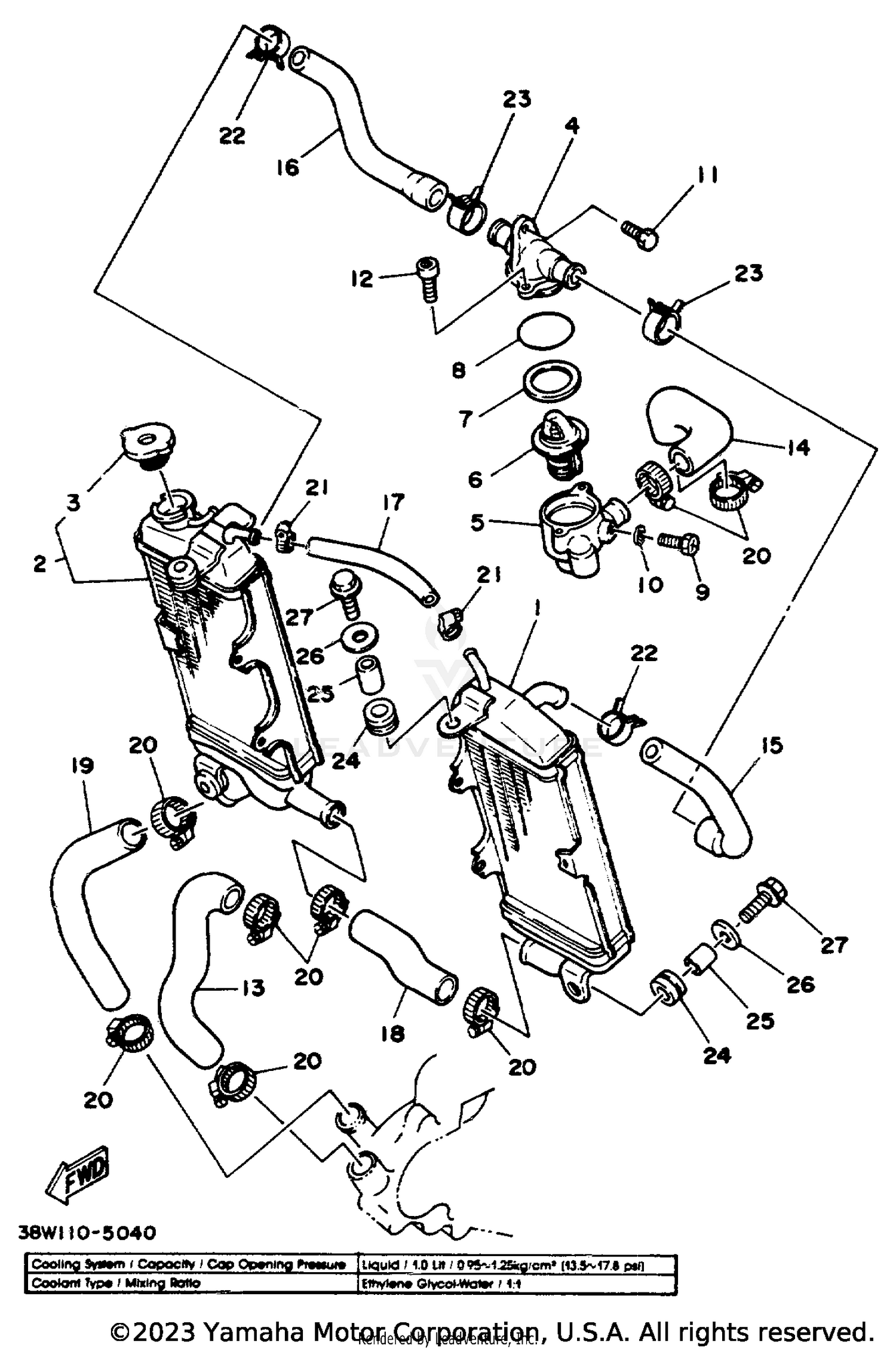

RADIATOR-HOSE
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 38W-12460-00-00 | RADIATOR ASSEMBLY Price: $252.99 |
| 2 | 38W-1240A-00-00 | RADIATOR ASSEMBLY 2 Price: $436.99 |
| 3 | 4FL-12462-00-00 | CAP, RADIATOR This part replaces 22W-12462-00-00. Price: $68.99 |
| 4 | 38W-1240G-00-00 | THERMOSTAT CVR ASSEMBLYASSY Price: $49.33 |
| 5 | 38W-12417-00-00 | HOUSING, THERMOSTAT Price: $61.99 |
| 6 | 38W-12410-00-00 | THERMOSTAT ASSEMBLY Price: $67.87 |
| 7 | 33M-12412-00-00 | SEAL, THERMOSTAT Price: $12.49 |
| 8 | 93210-40659-00 | O-RING This part replaces 93210-41615-00. Price: $10.49 |
| 9 | 90153-06029-00 | SCREW, HEXAGON This part replaces 90153-06045-00. Price: $11.49 |
| 10 | 90430-06014-00 | GASKET Price: $8.60 |
| 11 | 90153-06034-00 | SCREW, HEXAGON Price: $8.49 |
| 12 | 91317-06016-00 | BOLT (4MY) This part replaces 91316-06016-00. Price: $1.25 |
| 13 | 38W-12481-00-00 | PIPE 1 Price: $39.99 |
| 14 | 38W-12482-00-00 | PIPE 2 Price: $35.99 |
| 15 | 38W-12483-00-00 | PIPE 3 Price: $31.99 |
| 16 | 38W-12484-00-00 | PIPE 4 Price: $13.44 |
| 17 | 38W-12485-00-00 | PIPE 5 Price: $6.12 |
| 18 | 38W-12476-00-00 | PIPE 6 Price: $23.99 |
| 19 | 38W-12477-00-00 | PIPE 7 Price: $31.99 |
| 20 | 90450-38040-00 | HOSE CLAMP ASSY This part replaces 90460-31253-00. Price: $19.49 |
| 21 | 90460-12268-00 | CLAMP, HOSE Price: $17.49 |
| 22 | 90467-20050-00 | CLIP This part replaces 90467-20086-00. Price: $5.49 |
| 23 | 90467-22097-00 | CLIP This part replaces 90467-22100-00. Price: $10.49 |
| 24 | 90480-15363-00 | GROMMET Price: $9.49 |
| 25 | 90387-07598-00 | COLLAR Price: $6.49 |
| 26 | 90201-06086-00 | WASHER, PLATE This part replaces 90201-060A3-00. Price: $8.49 |
