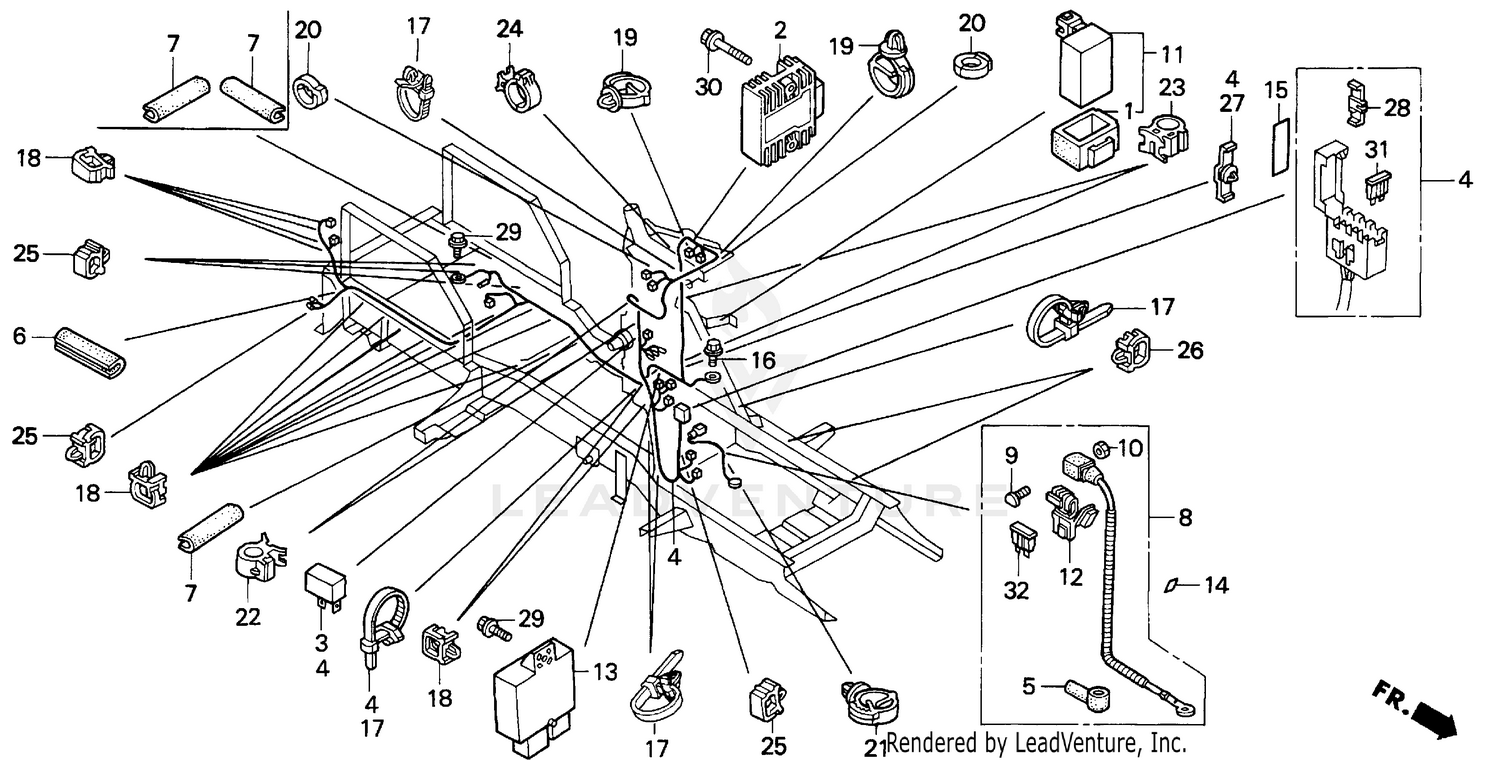

| Ref | Part Number | Description |
|---|
| 2 |
31600-ZE2-861 |
SEE PART DETAILS - PRI; RECTIFIER ASSY., REGULATOR (10A) Price: $224.24 |
| 4 |
32100-758-702 |
WIRE HARNESS ASSY., MAIN Price: $294.74 |
| 5 |
32136-758-700 |
COVER, TERMINAL Price: $3.70 |
| 6 |
32142-758-000 |
PROTECTOR, HARNESS Price: $2.82 |
| 7 |
32142-758-700 |
PROTECTOR, HARNESS Price: $4.28 |
| 8 |
32410-758-701 |
CABLE ASSY., STARTER Price: Call Us |
| 9 |
32601-SA5-003 |
SEE PART DETAILS - SUP; BOLT, BATTERY TERMINAL (SUMITOMO) Price: $11.88 |
| 9 |
32601-SK7-900 |
SEE PART DETAILS - PRI; BOLT, BATTERY TERMINAL Price: $11.88 |
| 10 |
32602-SA5-003 |
NUT, BATTERY TERMINAL (SUMITOMO) Price: $7.30 |
| 13 |
38450-758-702 |
RELAY ASSY., COMBINATION Price: $161.67 |
| 16 |
90149-SE0-003 |
BOLT, GROUND (6X16) (SN) Price: $10.86 |
| 17 |
90649-SC2-003 |
BAND, WIRE HARNESS (150MM) (NATURAL) DUAL QTY = (2) (SINGLE) Price: $8.76 |
| 18 |
90650-SB6-003 |
CLIP, HARNESS (15MM) (BLUE) Price: $5.50 |
| 19 |
90681-763-A01 |
CLIP, WIRE HARNESS Price: $11.04 |
| 20 |
90683-KJ2-003 |
CLIP, WIRE HARNESS Price: $4.92 |
| 21 |
90683-SA0-003 |
CLIP, WIRE HARNESS (25MM) (Honda Code 1226265). Price: $12.48 |
| 23 |
90690-GHB-651 |
CLIP, CABLE (15MM) Price: $2.74 |
| 24 |
90690-GHB-661 |
CLIP, CABLE (20MM) Price: $2.74 |
| 25 |
91504-750-003 |
CLIP, WIRE HARNESS (Honda Code 1803444). Price: $3.96 |
| 26 |
91505-ZA0-601 |
CLIP, HARNESS (7MM) Price: $4.72 |
| 27 |
91507-693-003 |
CLIP, WIRE HARNESS (50MM) (BLACK)(HARNESS TAPING) Price: $9.78 |
| 28 |
91553-SF4-003 |
CLIP, WIRE HARNESS (BLACK) Price: $6.94 |
| 29 |
95701-06012-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984. Price: $2.04 |
| 30 |
95701-06020-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2374759). Price: $0.48 |
| 31 |
98200-30500 |
SEE PART DETAILS - PRI; FUSE, BLADE (5A) (Honda Code 1938737). Price: $1.64 |
