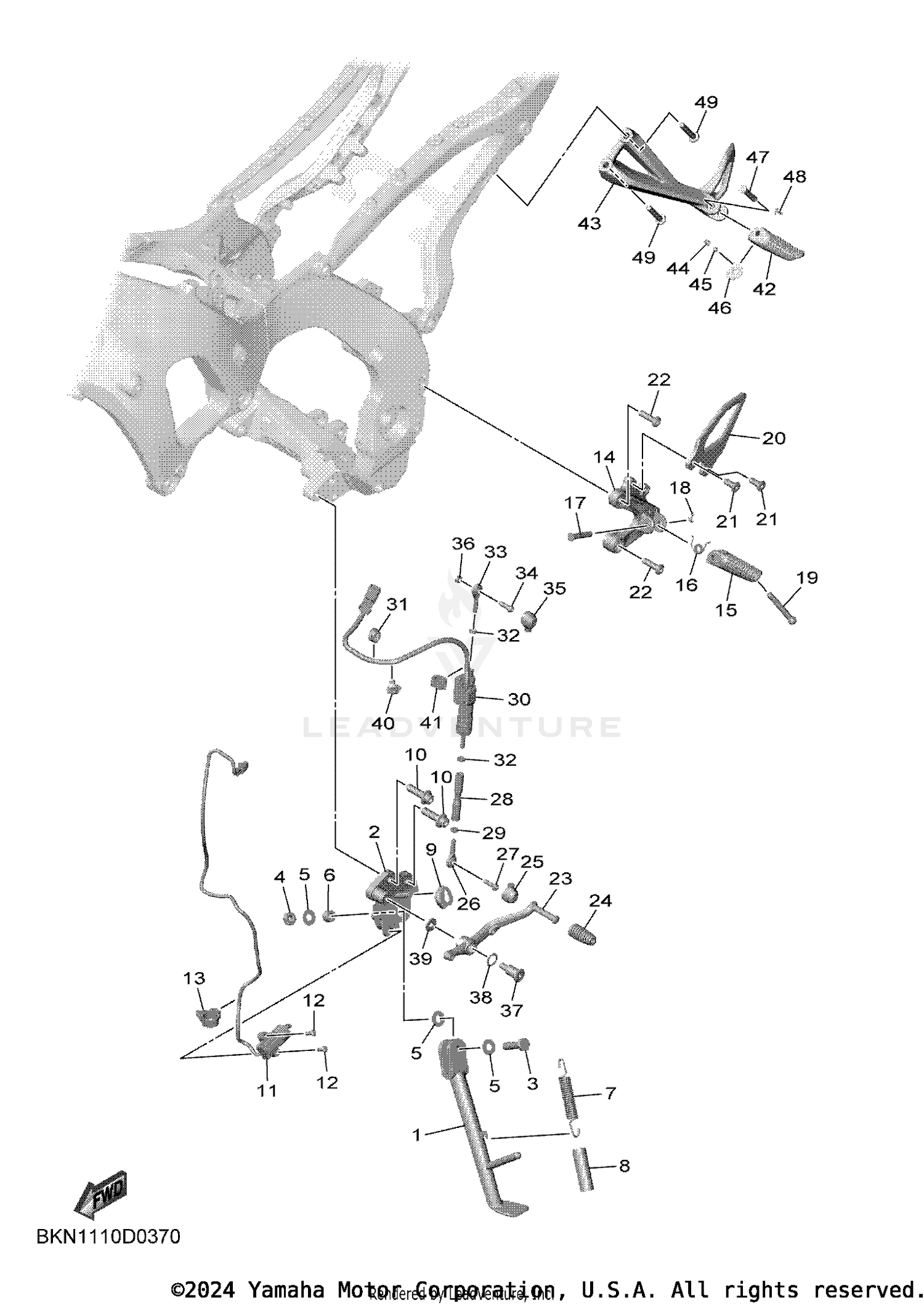

| Ref | Part Number | Description |
|---|
| 1 |
BME-27311-00-00 |
STAND, SIDE Price: $60.99 |
| 2 |
B7N-27321-00-00 |
BRACKET, SIDE STAN Price: $120.99 |
| 3 |
90101-10034-00 |
BOLT Price: $9.49 |
| 4 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 5 |
90201-10075-00 |
WASHER, PLATE Price: $3.55 |
| 6 |
90387-10020-00 |
COLLAR Price: $19.49 |
| 7 |
90506-26014-00 |
SPRING TENSION Price: $9.49 |
| 8 |
90445-197J2-00 |
HOSE (L60) Price: $4.95 |
| 9 |
B7N-27315-00-00 |
LINK, SIDE STAND Price: $2.75 |
| 10 |
90110-10060-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.40 |
| 11 |
BKN-82566-00-00 |
SWITCH, SIDE STAND Price: $90.99 |
| 12 |
90149-05038-00 |
SCREW This part replaces 90149-05037-00. Price: $2.65 |
| 13 |
90464-20016-00 |
CLAMP Price: $6.49 |
| 14 |
BEA-27442-00-00 |
BRACKET 2 Price: $103.99 |
| 15 |
B7N-27451-00-00 |
FOOTREST 3 Price: $19.49 |
| 16 |
90508-18134-00 |
SPRING, TORSION Price: $9.49 |
| 17 |
91702-08040-00 |
PIN, CLEVIS This part replaces 91701-08040-00. Price: $4.85 |
| 18 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 19 |
90109-08235-00 |
BOLT This part replaces 90109-08233-00. Price: $8.49 |
| 20 |
BKN-27445-00-00 |
PLATE 1 Price: $57.99 |
| 21 |
90111-08093-00 |
BOLT,HEX. SOCKET BUTTON Price: $3.50 |
| 22 |
90110-08220-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 23 |
BKN-18111-00-00 |
PEDAL, SHIFT Price: $75.99 |
| 24 |
5YT-18113-00-00 |
COVER, SHIFT PEDAL Price: $8.49 |
| 25 |
4XV-18154-00-00 |
COVER, DUST Price: $8.49 |
| 26 |
5LV-18117-00-00 |
JOINT, ROD 2 Price: $36.99 |
| 27 |
92012-06020-00 |
BOLT, BUTTON HEAD This part replaces 90111-06098-00. Price: $9.49 |
| 28 |
B7N-18115-00-00 |
ROD, SHIFT Price: $33.99 |
| 29 |
90170-06228-00 |
NUT (COUNTER CLOCKWISE) Price: $10.49 |
| 30 |
BLG-82480-01-00 |
SHIFT SENSOR ASSY. Price: $280.99 |
| 31 |
90464-13227-00 |
CLAMP Price: $8.49 |
| 32 |
95380-06700-00 |
NUT This part replaces 95304-06700-00. Price: $9.49 |
| 33 |
5LV-18116-00-00 |
JOINT, ROD 1 Price: $62.99 |
| 34 |
92012-06020-00 |
BOLT, BUTTON HEAD This part replaces 90111-06098-00. Price: $9.49 |
| 35 |
4XV-18154-00-00 |
COVER, DUST Price: $8.49 |
| 36 |
90387-06322-00 |
COLLAR Price: $8.49 |
| 37 |
4C8-27434-10-00 |
BOLT This part replaces 4C8-27434-01-00. Price: $24.99 |
| 38 |
90206-14086-00 |
WASHER, WAVE Price: $9.49 |
| 39 |
90201-08326-00 |
WASHER, PLATE Price: $9.49 |
| 40 |
90464-25009-00 |
CLAMP Price: $9.49 |
| 41 |
90464-14010-00 |
CLAMP Price: $3.65 |
| 42 |
B7N-27431-00-00 |
FOOTREST, REAR 1 Price: $16.49 |
| 43 |
BKN-2741L-00-00 |
BRACKET 4 Price: $123.99 |
| 44 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 45 |
93501-04011-00 |
BALL Price: $9.49 |
| 46 |
5VX-27437-00-00 |
WASHER, SPECIAL Price: $8.49 |
| 47 |
90240-08063-00 |
PIN, CLEVIS Price: $9.49 |
| 48 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
