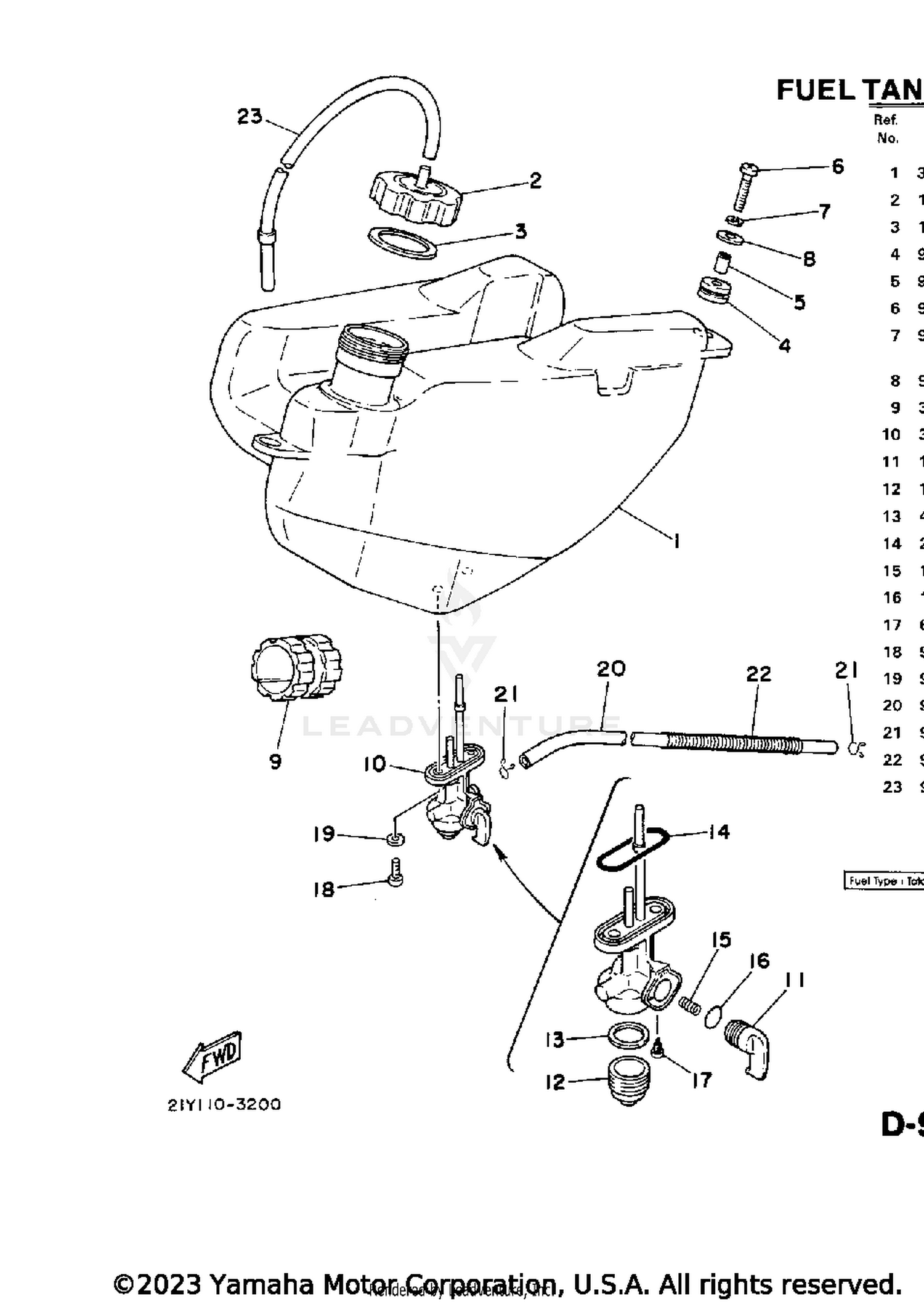

| Ref | Part Number | Description |
|---|
| 1 |
3X3-24110-00-00 |
FUEL TANK Price: $87.99 |
| 2 |
1W1-24611-00-00 |
BODY, CAP Price: $29.99 |
| 3 |
1W1-24612-00-00 |
GASKET, CAP Price: $10.99 |
| 4 |
90480-15064-00 |
GROMMET Price: $10.49 |
| 5 |
90387-06088-00 |
COLLAR This part replaces 90387-064A5-00. Price: $1.90 |
| 6 |
97885-06030-00 |
SCREW, PAN HEAD This part replaces 98580-06030-00. Price: $5.05 |
| 7 |
92995-06100-00 |
WASHER, PAN HEAD Price: $3.45 |
| 8 |
90201-063J2-00 |
WASHER, PLATE Price: $6.49 |
| 9 |
3X3-24181-00-00 |
DAMPER, LOCATING 1 Price: $7.99 |
| 10 |
3X3-24500-00-00 |
FUEL COCK ASSEMBLY 1 Price: $85.99 |
| 11 |
1A0-24524-01-00 |
LEVER, COCK Price: $11.49 |
| 12 |
1A0-24521-01-00 |
CUP, FILTER Price: $28.99 |
| 13 |
498-24522-00-00 |
GASKET Price: $43.99 |
| 14 |
214-24512-00-00 |
GASKET Price: $33.99 |
| 15 |
1A0-24529-01-00 |
SPRING Price: $7.49 |
| 16 |
1A0-24512-00-00 |
GASKET Price: $8.49 |
| 17 |
619-24535-00-00 |
SCREW, LEVER FITTING Price: $2.25 |
| 18 |
90149-06011-00 |
SCREW Price: $2.05 |
| 19 |
90202-05187-00 |
WASHER, PLATE Price: $1.70 |
| 20 |
90445-09021-00 |
HOSE (L865) This part replaces 90445-09271-00. Price: $39.99 |
| 21 |
90467-08003-00 |
CLIP, SCISSOR Price: $11.49 |
| 22 |
90501-08668-00 |
SPRING, COMPRESSION This part replaces 90501-08430-00. Price: $12.49 |
