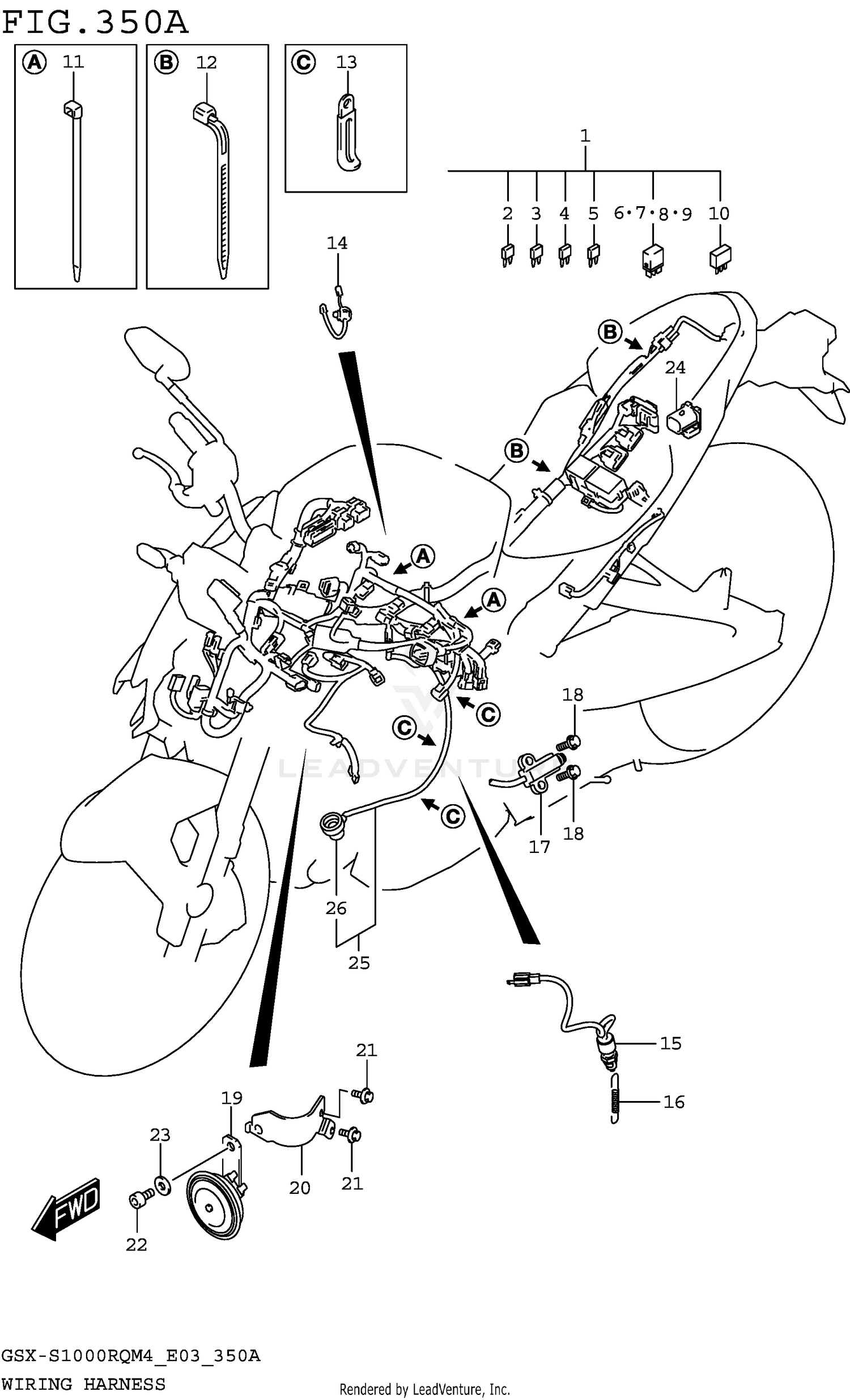

WIRING HARNESS (GSX-S1000RQM4 E03)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-48KL0 | HARNESS,WIRING Price: $900.83 |
| 11 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 12 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 13 | 36651-07L00 | CLAMP, OIL PRESS LEAD (ENGINE Price: $15.04 |
| 14 | 36852-10L00 | WIRE,FAN MOTOR LEAD Price: $33.18 |
| 15 | 37740-31D10 | SWITCH ASSY, STOP LAMP Price: $22.42 |
| 16 | 09443-06054 | SPRING Price: $4.04 |
| 17 | 37840-48K00 | SWITCH ASSY, SIDE STAND Price: $108.03 |
| 18 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 19 | 38500-48K00 | HORN ASSY Price: $42.72 |
| 20 | 38590-04K10 | PLATE, HORN Price: $14.46 |
| 21 | 09116-06006 | BOLT (6X16) Price: $2.27 |
| 22 | 07130-0812A | BOLT Price: $3.91 |
| 23 | 09160-08127 | WASHER (8.5X22X2) Price: $2.58 |
| 24 | 36654-28K00 | CAP,OBD CONNECTOR Price: $9.43 |
| 25 | 36851-48K00 | WIRE, OIL PRESSURE SWITCH LEA Price: $17.23 |
