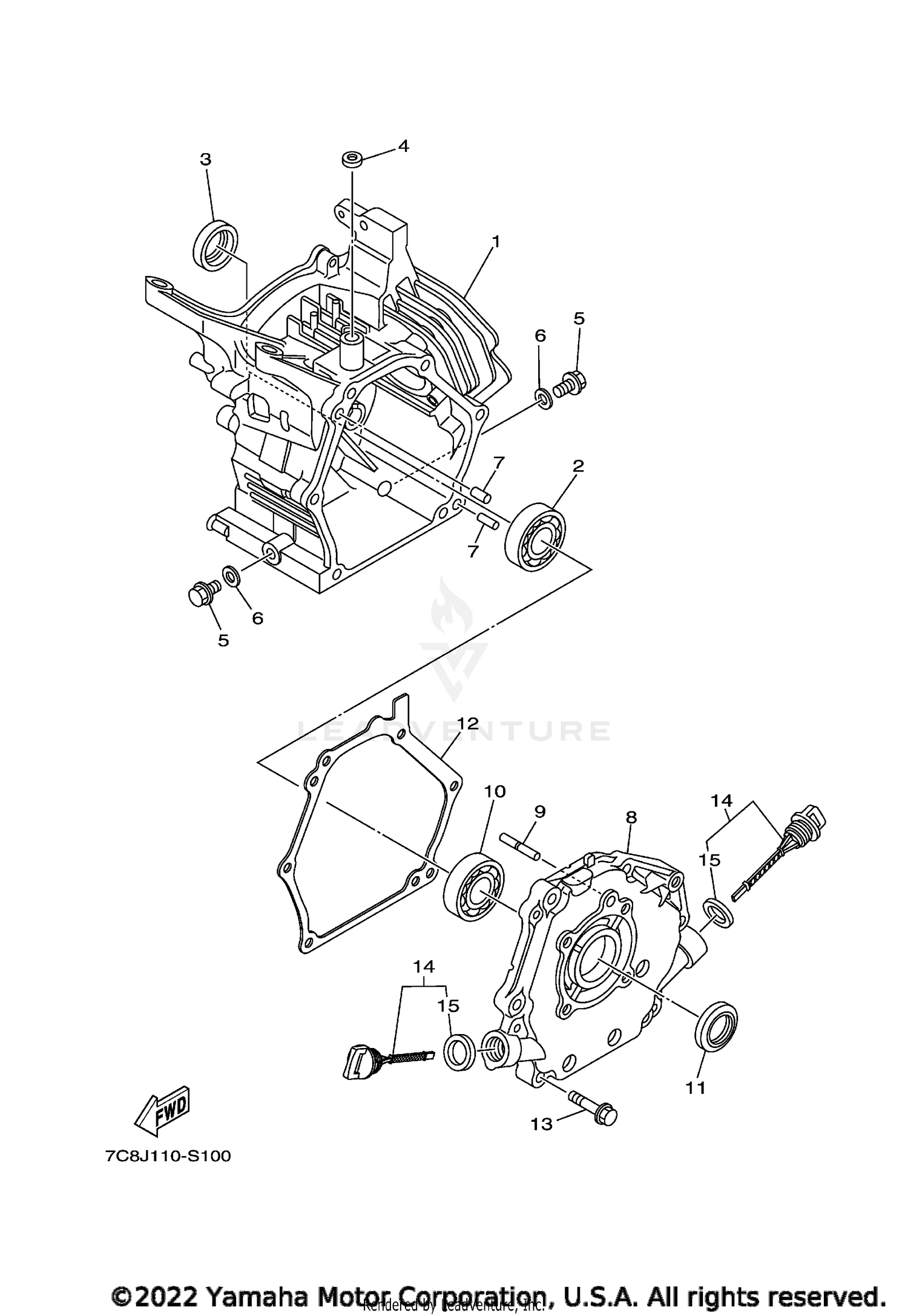

CRANKCASE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 7C8-E5121-00-00 | CRANKCASE 2 Price: $206.99 |
| 2 | 93306-255Y3-00 | BEARING Price: $29.99 |
| 3 | 93102-25090-00 | OIL SEAL This part replaces 93102-25806-00. Price: $16.49 |
| 4 | 93104-06800-00 | OIL SEAL Price: $4.40 |
| 5 | 95022-10016-00 | BOLT, FLANGE Price: $9.49 |
| 6 | 90430-10188-00 | GASKET This part replaces 90430-10801-00. Price: $7.49 |
| 7 | 91808-16023-00 | PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 8 | 7DB-E5411-00-00 | COVER, CRANKCASE 1 Price: $88.99 |
| 9 | 7CN-E1971-00-00 | SHAFT, FLYWEIGHT Price: $7.49 |
| 10 | 93306-255Y3-00 | BEARING Price: $29.99 |
| 11 | 93102-25805-00 | OIL SEAL Price: $11.49 |
| 12 | 7CN-E5451-10-00 | GASKET, CRANKCASE COVER 1 Price: $17.99 |
| 13 | 95822-08035-00 | BOLT, FLANGE Price: $4.50 |
| 14 | 7BX-E536A-00-00 | PLUG, OIL LEVEL Price: $11.99 |
