Parts Catalog

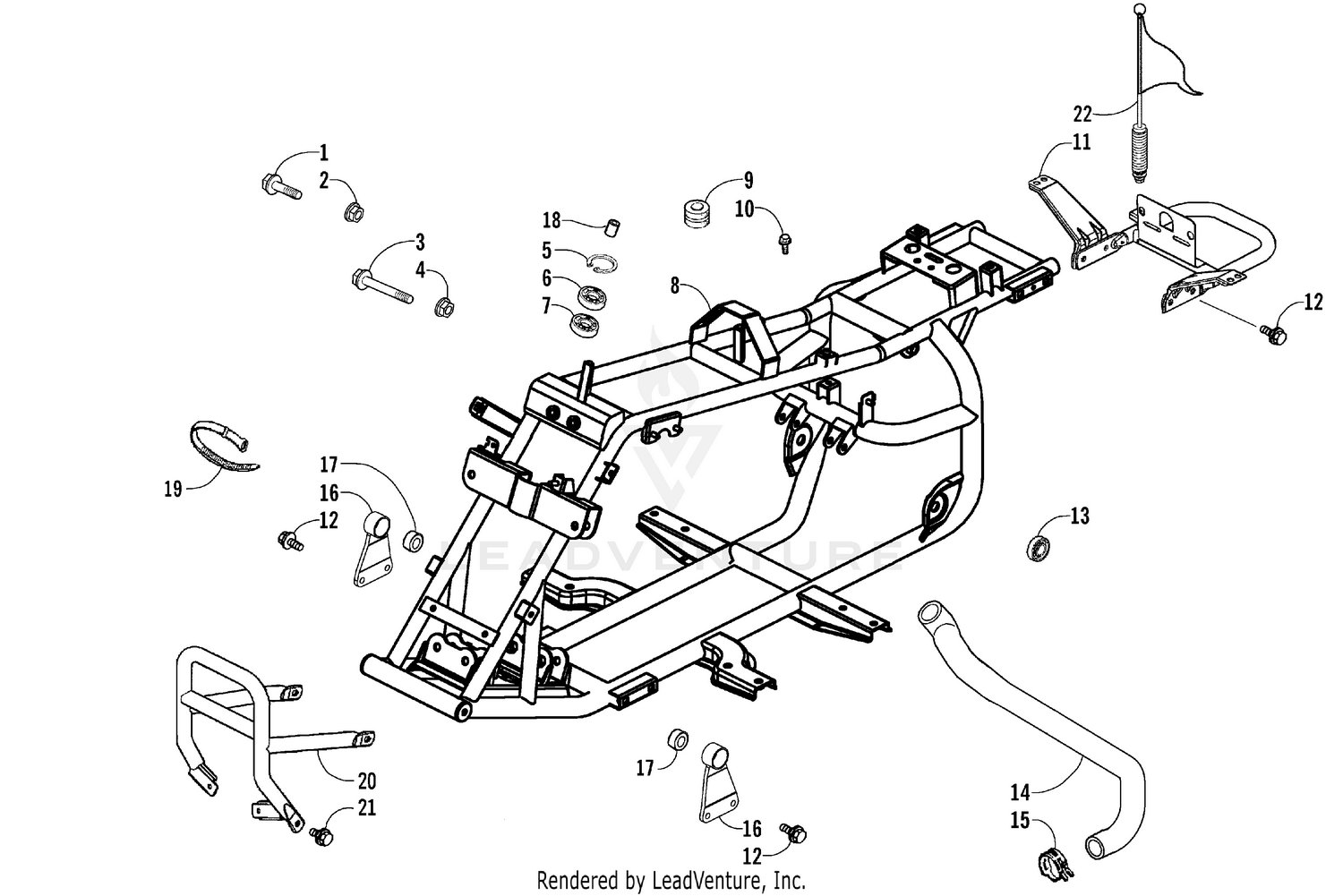

FRAME AND RELATED PARTS ASSEMBLY [84004]

Parts (20)

Ref	Part Number	Description
1	3303-616	BOLT FLANGE 8*35 Price: $2.03
2	3303-269	NUT U FLANGE 8MM Price: $1.72
3	3304-548	BOLT FLANGE 10*70 Price: $3.76
4	3304-031	NUT U 10MM Price: $2.72
5	3303-347	CIR CLIP IN 32 Price: $2.72
6	3303-295	OIL SEAL 18*32*7 Price: $2.98
7	3303-298	OIL SEAL 22*35*7 Price: $3.46
8	3303-181	Body Frame, Complete Price: $590.95
9	3303-239	RUBBER TAIL LIGHT Price: $1.87
10	3303-308	BOLT HEX 5*12 Price: $0.72
11	3303-236	GRIP ASSY REAR Price: $67.95
12	3304-543	BOLT FLANGE 8*16 Price: $1.56
13	3303-392	BEARING BALL RADIAL 6002 Price: $20.38
14	3303-477	DUCT L COVER Price: $26.95
15	3303-074	CLIP HOSE Price: $3.61
17	3304-542	RUBBER BUSHING ENGINE HANGER Price: $7.85
18	3303-445	COLLAR FR DIST Price: $7.23
19	3303-289	BAND OIL HANDLE Price: $0.89
20	3305-261	PIPE COMP FRONT BUMPER Price: $127.95
21	3303-365	BOLT FLANGE 8*12 (RB 3304-544) Price: $0.59
