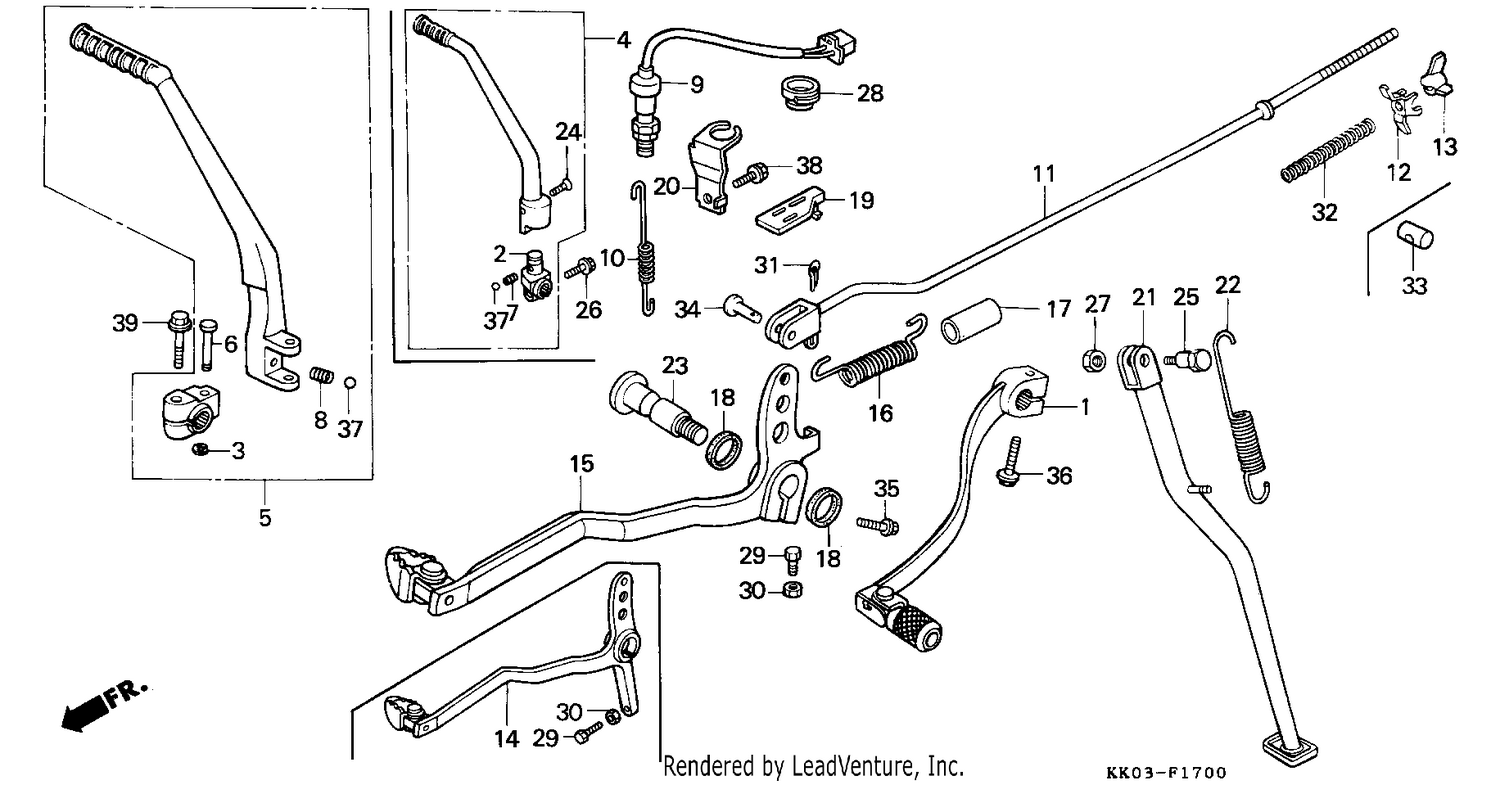

| Ref | Part Number | Description |
|---|
| 1 |
24700KT0770 |
PEDAL COMP., CHANGE Price: Call Us |
| 3 |
28293124000 |
CLIP, KICK STARTER ARM Price: Call Us |
| 5 |
28300KT0670 |
ARM ASSY., KICK STARTER Price: Call Us |
| 6 |
28321427770 |
PIN, KICK STARTER Price: Call Us |
| 8 |
28333124000 |
SPRING, KICK STARTER STOPPER Price: Call Us |
| 11 |
43451KT0000 |
ROD, RR. BRAKE Price: Call Us |
| 13 |
43459434000 |
NUT, BRAKE ADJUSTING Price: Call Us |
| 15 |
46500KT0670 |
PEDAL COMP., BRAKE Price: Call Us |
| 16 |
46511KT0670 |
SPRING, BRAKE PEDAL Price: Call Us |
| 17 |
46515KL4000 |
TUBE, BRAKE PEDAL SPRING Price: Call Us |
| 18 |
46525KK0003 |
DUST SEAL, 17X20X2.5 Price: Call Us |
| 19 |
46526KT0680 |
PROTECTOR, MIDDLE ARM Price: Call Us |
| 21 |
50530KT1770 |
BAR, SIDE STAND Price: Call Us |
| 22 |
50535KN5670 |
SPRING, SIDE STAND Price: Call Us |
| 23 |
90101KK0000 |
SHAFT, RR. BRAKE PIVOT Price: Call Us |
| 25 |
90108MN1670 |
SCREW, SIDE STAND PIVOT Price: Call Us |
| 27 |
90304GE8003 |
NUT, U, 10MM Price: Call Us |
| 29 |
92225060250A |
BOLT, HEX., 6X25 Price: Call Us |
| 30 |
94001060000S |
NUT, HEX., 6MM Price: Call Us |
| 31 |
9420120120 |
PIN, SPLIT, 2.0X12 Price: Call Us |
| 32 |
43472KB9750 |
SPRING A, BRAKE ROD Price: Call Us |
| 33 |
9501532001 |
JOINT B, BRAKE ARM Price: Call Us |
| 34 |
9501553000 |
PIN C, JOINT Price: Call Us |
| 35 |
957010802500 |
BOLT, FLANGE, 8X25 Price: Call Us |
| 36 |
965000602007 |
BOLT, FLANGE, 6X20 Price: Call Us |
| 37 |
9621108000 |
BALL, STEEL, #8 (1/4) Price: Call Us |
