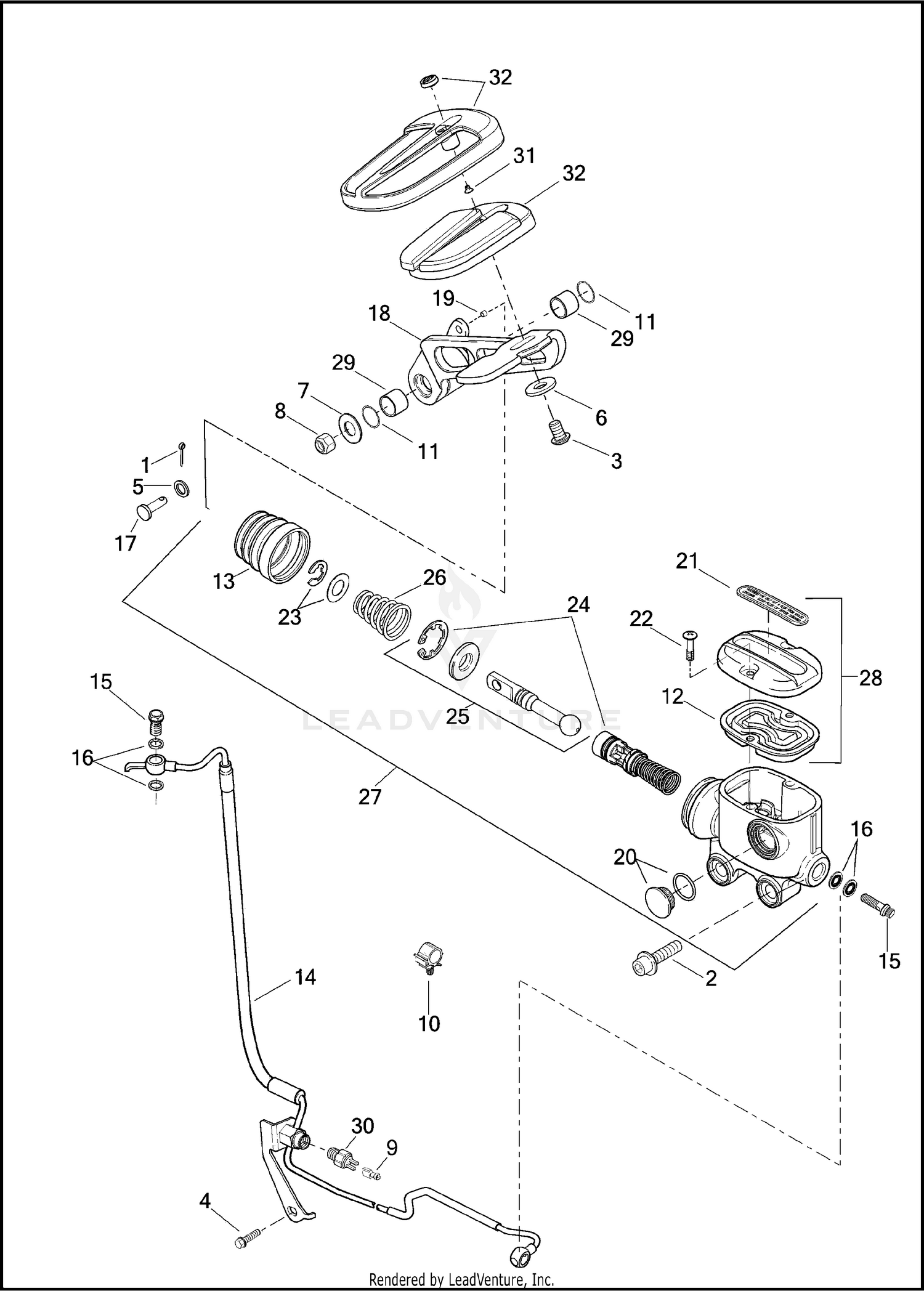

| Ref | Part Number | Description |
|---|
| 1 |
515 |
COTTER PIN Price: $0.59 |
| 2 |
2479 |
SCREW 5/16-18 X 1-1/8 SEMS SOCKET HD. Price: $7.07 |
| 3 |
3340 |
SCREW 5/16-18 X 1/2 HEX HD. (GRADE 8) Price: $1.22 |
| 4 |
3563 |
SCREW 1/4-20 X 3/8 HEX FLANGE HD. (GRADE 5) Price: $4.71 |
| 5 |
6220W |
WASHER 1/4 X 7/16 X 1/32 Price: $1.22 |
| 6 |
6333 |
WASHER 5/16 X 7/8 X 5/64 Price: $1.22 |
| 7 |
6334 |
WASHER 7/16 X 29/32 X 1/16 Price: $0.55 |
| 8 |
7825 |
LOCKNUT 7/16-20 X 7/16 X 5/8 Price: $1.22 |
| 9 |
9907 |
WIRE TERMINAL Price: $0.63 |
| 10 |
10340B |
CLIP BRAKE HOSE, NON-ABS This part replaces 10340A. Price: $1.22 |
| 11 |
11364 |
O-RING Price: $0.55 |
| 12 |
11902 |
GASKET MASTER CYLINDER RESERVOIR COVER Price: $7.66 |
| 13 |
12102 |
DUST BOOT Price: $6.36 |
| 14 |
40611-09 |
BRAKELINE RIGHT-REAR, MASTER CYLINDER TO ABS MODULE Price: $78.18 |
| 15 |
41750-06B |
BOLT, BANJO BRAKELINE Price: $4.24 |
| 16 |
41751-06A |
GASKET Price: $1.69 |
| 17 |
42460-80B |
CLEVIS PIN Price: $2.41 |
| 18 |
42638-08A |
LEVER ASSEMBLY FOOT-BRAKE, W/ 515, 6334, 7825, 11364, 42644-00, 57217-02 & BRAKE LEVER Not Available Price: |
| 19 |
42644-00 |
BEARING .25 X .177 Price: $8.64 |
| 20 |
42854-06 |
KIT, SIGHT GLASS Price: $9.67 |
| 21 |
42856-06 |
DECAL RESERVOIR COVER Price: $4.70 |
| 22 |
42882-06 |
SCREW Price: $1.49 |
| 23 |
42889-06 |
PUSHROD SPRING E-CLIP KIT MASTER CYLINDER Price: $4.71 |
| 24 |
42932-08A |
REBUILD KIT MASTER CYLINDER Price: $43.03 |
| 25 |
42933-08A |
PUSHROD KIT MASTER CYLINDER Price: $21.20 |
| 26 |
42934-08 |
SPRING PEDAL RETURN Price: $6.80 |
| 27 |
46459-08B |
MASTER CYLINDER ASSEMBLY W/ 12, 13, 20, 21, 22, 23, 24, 25, 26 & 28 (CHROME) Not Available Price: |
| 28 |
46463-08 |
MASTER CYLINDER COVER KIT REAR, DOT4, (CHROME) W/ 11902, 42856-06 & 42882-06 Price: $79.95 |
| 29 |
57217-02A |
BUSHING BRAKE LEVER (USED W/ 42515-00A & 42597-00A) This part replaces 57217-02. Price: $3.69 |
| 30 |
72023-51E |
KIT SWITCH REAR STOP LAMP, W/ 9907 Price: $35.60 |
| 31 |
12600025 |
SCREW Not Available Price: |
