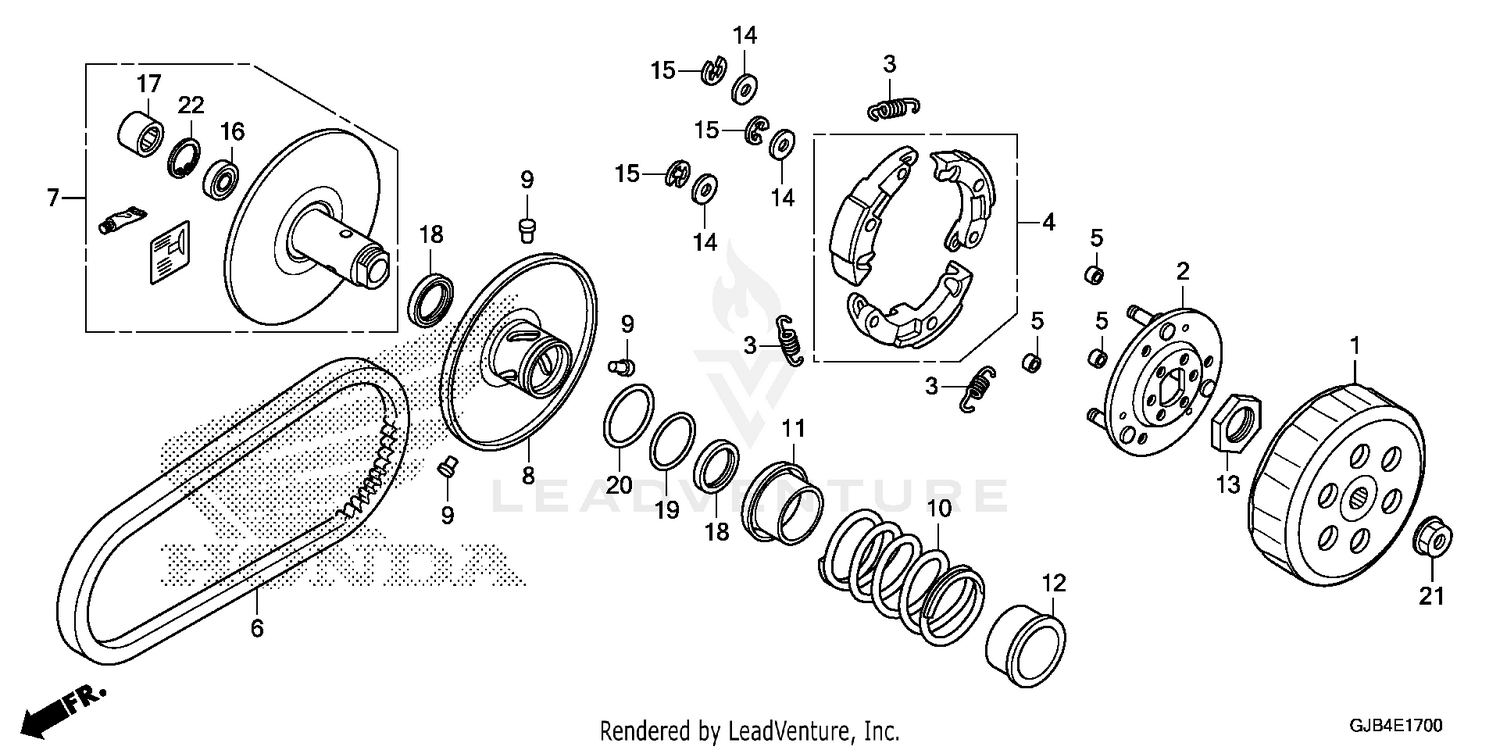

| Ref | Part Number | Description |
|---|
| 1 |
22100-GGZ-J00 |
CLUTCH OUTER Price: $15.85 |
| 2 |
22350-GAH-A00 |
PLATE, DRIVE Price: $39.84 |
| 2 |
22350-GGZ-J00 |
PLATE, DRIVE Price: $8.44 |
| 3 |
22401-GG2-900 |
SPRING, CLUTCH Price: $4.40 |
| 4 |
22535-GAK-305 |
WEIGHT SET, CLUTCH Price: $82.24 |
| 5 |
22804-148-000 |
RUBBER, CLUTCH DAMPER Price: $3.62 |
| 6 |
23100-GGZ-J01 |
BELT, DRIVE Price: $20.00 |
| 7 |
23205-GGZ-J00 |
FACE SET, DRIVEN Price: $44.90 |
| 8 |
23220-GGZ-J00 |
FACE, MOVABLE DRIVEN Price: $25.35 |
| 9 |
23225-GR1-750 |
PIN, GUIDE Price: $4.58 |
| 10 |
23233-GGZ-J01 |
SPRING, DRIVEN FACE Price: $6.36 |
| 11 |
23237-GGZ-J01 |
COLLAR, SEAL Price: $3.13 |
| 12 |
23238-GGZ-J01 |
COLLAR, SPRING Price: $2.58 |
| 13 |
90202-GGZ-J00 |
NUT, SPECIAL (28MM) Price: $1.20 |
| 14 |
90442-044-000 |
WASHER, THRUST (6MM) Price: $2.45 |
| 15 |
90454-GB2-000 |
CIRCLIP (6MM) Price: $1.82 |
| 16 |
91006-GGL-J01 |
BEARING, RADIAL BALL (6901U) Price: $10.91 |
| 17 |
91103-GGL-J01 |
BEARING, NEEDLE (17X25X18) Price: $15.78 |
| 18 |
91211-GFC-771 |
OIL SEAL (34X39X3) (ARAI) Price: $8.51 |
| 19 |
91301-KA5-741 |
O-RING (36X1.5) (ARAI) Price: $8.78 |
| 20 |
91302-GGL-J01 |
O-RING (39.8X2.2) Price: $2.67 |
| 21 |
94050-10000 |
NUT, FLANGE (10MM) Price: $1.62 |
