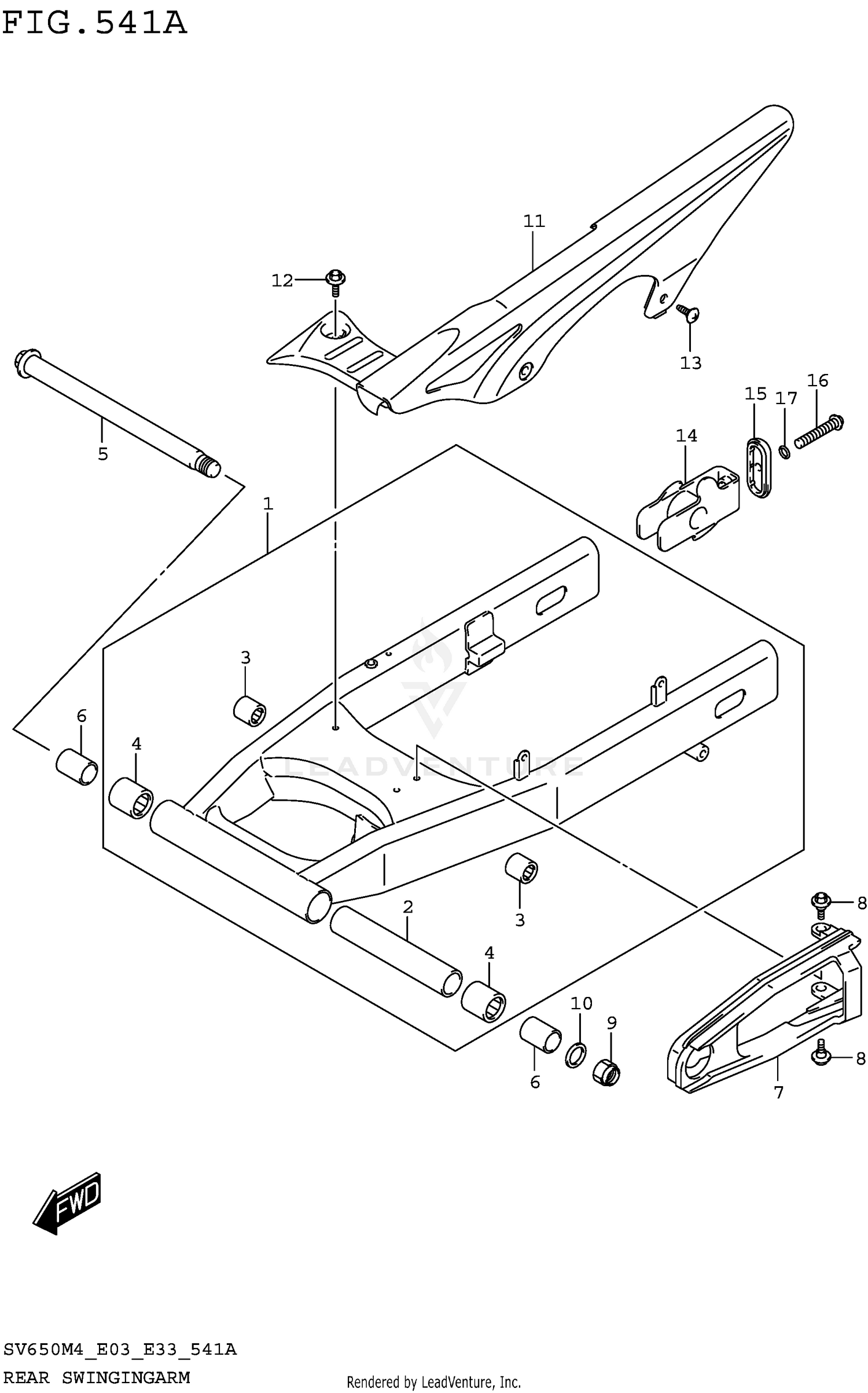

REAR SWINGINGARM
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 61000-44H11-YAP | SWINGINGARM ASSY,REAR (BLACK) Price: $924.69 |
| 4 | 09263-25073 | BEARING (25X33X35) Price: $37.67 |
| 5 | 61211-31E00 | SHAFT,RR SWGARM PIVOT Price: $139.02 |
| 6 | 61251-21E00 | SPACER,RR SWGARM PIVOT Price: $32.46 |
| 7 | 61273-44H01 | BUFFER,CHAIN TOUCH DEFENSE Price: $36.46 |
| 8 | 09111-06072 | BOLT (6X17.8) Price: $2.45 |
| 9 | 09159-18007 | NUT Price: $20.68 |
| 10 | 09160-18030 | WASHER (18.5X28X2.6) Price: $3.12 |
| 11 | 61310-44H00 | CASE,CHAIN Price: $99.31 |
| 12 | 09111-06107 | BOLT (6X12) Price: $3.02 |
| 13 | 09139-06168 | SCREW, UPPER This part replaces 09139-06165. Price: $3.20 |
| 14 | 61410-44H00 | ADJUSTER,CHAIN Price: $43.10 |
| 16 | 09106-08119 | BOLT (8X50) Price: $4.99 |
