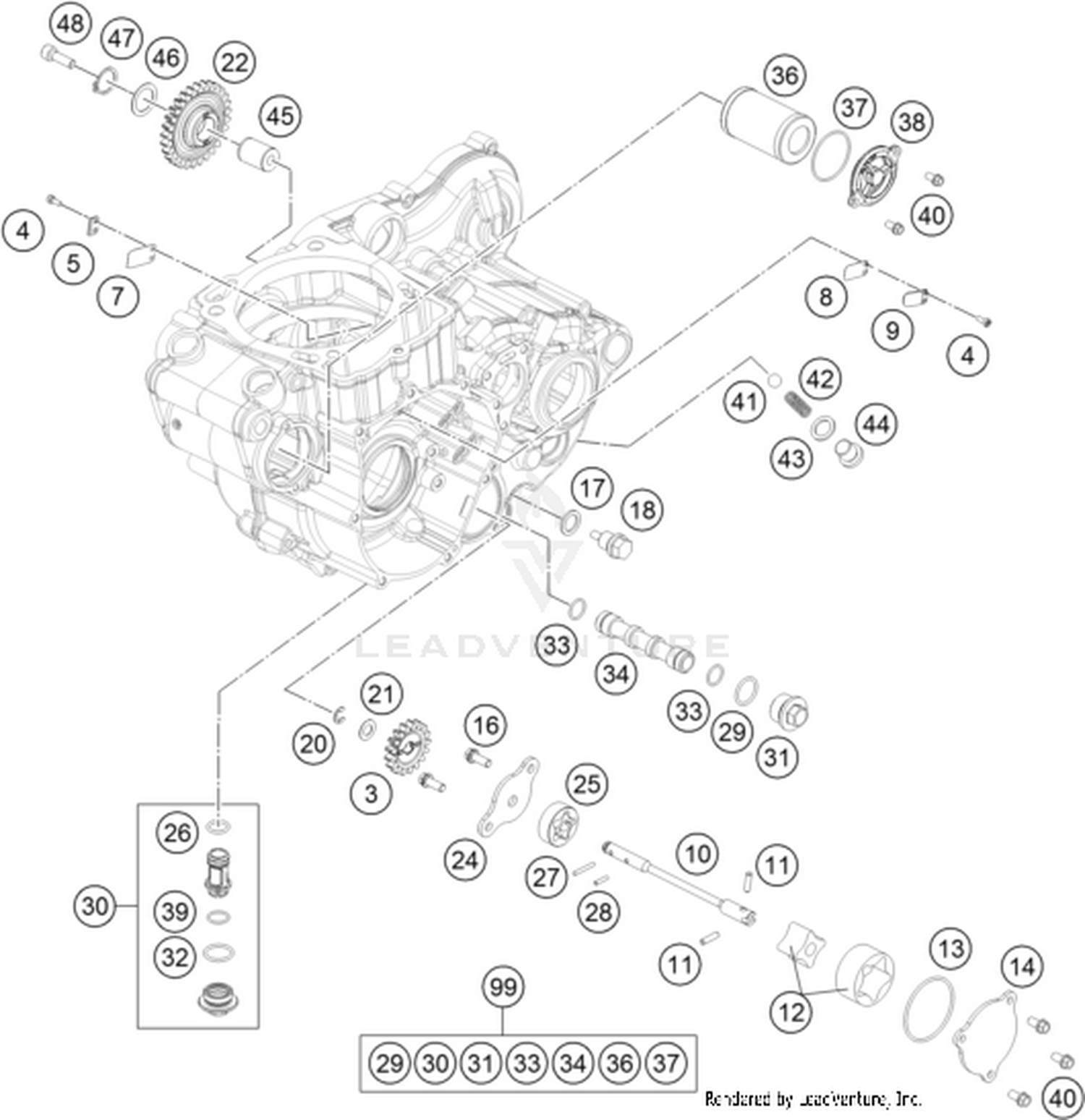

| Ref | Part Number | Description |
|---|
| 3 |
78038001017 |
OIL PUMP GEAR 17 T Price: Call Us |
| 4 |
0458030080 |
CYLIND.SCREW M3X8 ISO 14580 SS Price: Call Us |
| 5 |
75030003050 |
STOP SHEET MEMBRANE 07 Price: Call Us |
| 7 |
75030003051 |
MEMBRANE 07 Price: Call Us |
| 8 |
81205027003 |
MEMBRAN CRANKCASE Price: Call Us |
| 9 |
81205027004 |
TAB WASHER MEMBRAN CSC Price: Call Us |
| 10 |
78138102000 |
OIL PUMP SHAFT SP-DP Price: Call Us |
| 12 |
61238011100 |
ROTOR SET 22MM This part replaces 61238111000. Price: Call Us |
| 13 |
0770440020 |
O-RING 44,00X2,00 VITON Price: Call Us |
| 14 |
78038004000 |
OIL PUMP COVER SUCTION PUMP Price: Call Us |
| 16 |
0025060166S |
HH collar screw M6x16 TX30 SL Price: Call Us |
| 17 |
58038022000 |
CU-seal ring DIN7603-12X18X1.5 Price: Call Us |
| 20 |
0799060000 |
TAB WASHER DIN6799-RS 6,0 Price: Call Us |
| 21 |
58038007755 |
STOP DISK 8,1 X 15 X 0,5 Price: Call Us |
| 22 |
78138001029 |
IDLER GEAR 1 29Z Price: Call Us |
| 24 |
78138003000 |
OIL PUMP COVER Price: Call Us |
| 25 |
59038011012 |
OILPUMP ROTOR 12MM G-95R/003 Price: Call Us |
| 26 |
0770012021 |
O-RING 12X2 VITON GREEN Price: Call Us |
| 27 |
0402251980 |
NEEDLEROL.DIN5402 NRA 2,5X19,8 Price: Call Us |
| 28 |
0402251180 |
NEEDLE ROLLER DIN5402 2,5X11,8 Price: Call Us |
| 29 |
0770020170 |
O-RING 17,17X1,78 GLO Price: Call Us |
| 30 |
78138015001 |
OIL SCREEN CPL. Price: Call Us |
| 31 |
59038017100 |
PLUG M20X1,5 WS=13 Price: Call Us |
| 32 |
0770170200 |
O-RING 17,00X2,00 Price: Call Us |
| 33 |
07701250151 |
O-RING 12,5X1,5 VITON V75 Price: Call Us |
| 34 |
59038016200 |
Oil screen This part replaces 59038016100. Price: Call Us |
| 36 |
77038005044 |
OIL FILTER WITH GASKET 06 Price: Call Us |
| 37 |
07700390261 |
O-RING 39,34X2,62 Price: Call Us |
| 39 |
0770125015 |
O-RING 12,5X1,5 NBR Price: Call Us |
| 40 |
0025050166 |
HH collar screw M5x16 TX30 Price: Call Us |
| 41 |
0401090003 |
BALL DIN5401-9 Price: Call Us |
| 42 |
58038023300 |
PRESSURE SPRING L=25MM D=1MM Price: Call Us |
| 43 |
58038022000 |
CU-seal ring DIN7603-12X18X1.5 Price: Call Us |
| 45 |
78040028000 |
BUSHING PIN Price: Call Us |
| 46 |
0988172405 |
SHIM WASHER DIN0988-17X24X0,5 Price: Call Us |
| 47 |
0471170010 |
CIRCLIP DIN0471-17X1 Price: Call Us |
| 48 |
0912060208 |
AH SCREW DIN0912-M 6X20 SS Price: Call Us |
