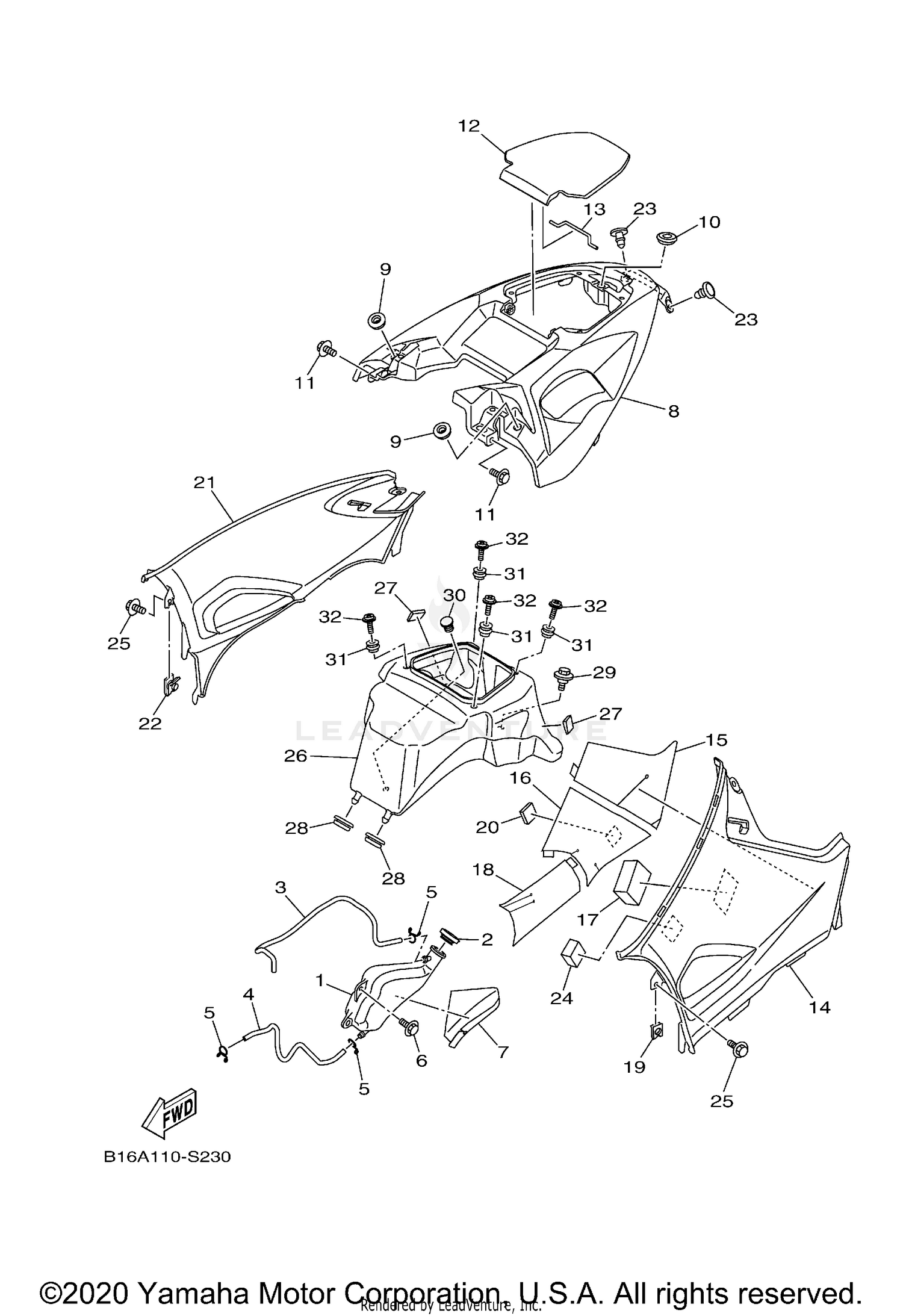

| Ref | Part Number | Description |
|---|
| 1 |
1HP-F1871-01-00 |
TANK, RECOVERY Price: $17.99 |
| 2 |
1S3-21875-00-00 |
CAP Price: $10.99 |
| 3 |
90445-08841-00 |
HOSE (L540) Price: $3.65 |
| 4 |
90445-08840-00 |
HOSE (L420) Price: $2.25 |
| 5 |
90467-08003-00 |
CLIP, SCISSOR Price: $11.49 |
| 6 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
| 7 |
1HP-F176E-01-00 |
PLATE This part replaces 1HP-F176E-00-00. Price: $4.75 |
| 8 |
B16-F171C-30-00 |
TOP COVER COMP. Price: $133.99 |
| 9 |
90480-13567-00 |
GROMMET Price: $5.49 |
| 10 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 11 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
| 12 |
B16-F17P0-30-00 |
LID COVER COMP. Price: $83.99 |
| 13 |
3B4-2177K-00-00 |
PIN, HINGE Price: $14.49 |
| 14 |
B4F-F17E0-30-00 |
SIDE COVER COMP. 1 Price: $149.99 |
| 15 |
B16-F174A-02-00 |
INSULATOR, SIDE COVER This part replaces B16-F174A-01-00. Price: $8.49 |
| 16 |
B16-F173N-02-00 |
SEAL 4 This part replaces B16-F173N-01-00. Price: $15.49 |
| 17 |
3B4-2174Y-00-00 |
DAMPER Price: $9.49 |
| 18 |
B16-F173M-02-00 |
SEAL 3 This part replaces B16-F173M-01-00. Price: $8.49 |
| 19 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 20 |
3B4-2177N-01-00 |
DAMPER, LOCATING 4 This part replaces 3B4-2177N-00-00. Price: $30.99 |
| 21 |
B4F-F17F0-30-00 |
SIDE COVER COMP. 2 Price: $98.99 |
| 22 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 23 |
90269-07010-00 |
RIVET Price: $4.70 |
| 24 |
90520-50800-00 |
DAMPER, PLATE Price: $8.49 |
| 25 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
| 26 |
B16-F177A-01-00 |
BOX Price: $73.99 |
| 27 |
90520-10027-00 |
DAMPER, PLATE Price: $1.60 |
| 28 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 29 |
90109-06202-00 |
BOLT Price: $3.10 |
| 30 |
90605-502U1-00 |
PLUG, BLIND Price: $6.99 |
| 31 |
90179-05523-00 |
NUT Price: $7.49 |
