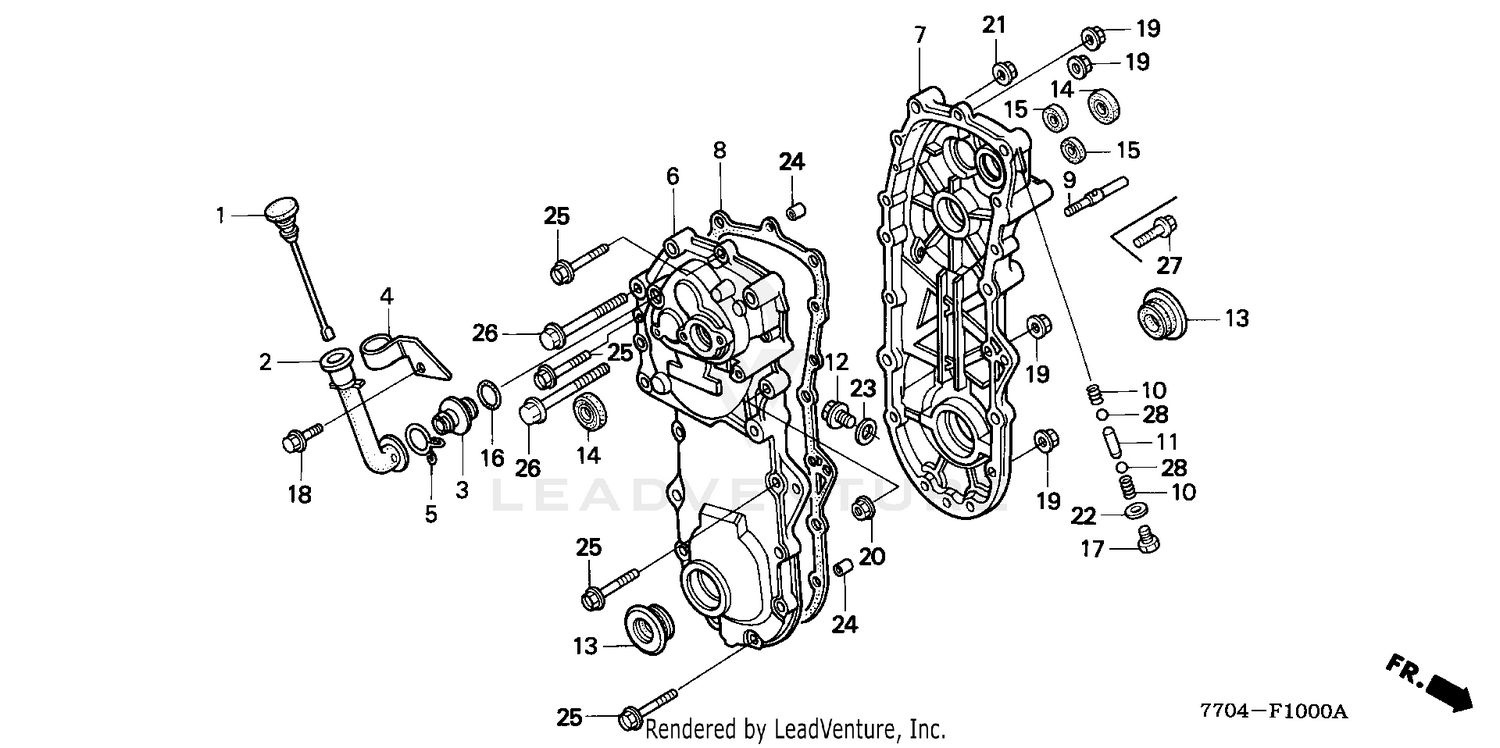

| Ref | Part Number | Description |
|---|
| 1 |
15621-723-750 |
DIPSTICK, OIL Price: $9.42 |
| 2 |
15631-723-751 |
PIPE, OIL FILLER Price: $10.24 |
| 3 |
15645-723-751 |
JOINT, OIL PIPE Price: $21.08 |
| 4 |
15646-723-980 |
STAY, OIL PIPE Price: $7.58 |
| 5 |
17348-673-000 |
CLIP, AIR HOSE (20.5MM) Price: $12.68 |
| 6 |
21111-734-630 |
CASE, R. TRANSMISSION Price: $524.50 |
| 7 |
21211-734-632 |
CASE, L. TRANSMISSION Price: $637.26 |
| 8 |
21281-734-J03 |
GASKET, TRANS CASE This part replaces 21281-734-J01. Price: $40.26 |
| 9 |
22551-733-000 |
SHAFT, TENSIONER ARM Price: $31.32 |
| 10 |
24271-765-000 |
SPRING, BALL SETTING Price: $2.64 |
| 11 |
24481-719-000 |
PIECE, INTERLOCK Price: $5.94 |
| 12 |
90131-896-650 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231). Price: $2.76 |
| 13 |
91251-734-003 |
SEAL, WATER (25X46X8.5) Price: $43.56 |
| 14 |
91201-862-003 |
SEE PART DETAILS - PRI; OIL SEAL (17X30X8) Price: $16.74 |
| 15 |
91253-706-003 |
OIL SEAL (12X22X6) Price: $12.82 |
| 16 |
91303-800-000 |
O-RING (16MM) (Honda Code 0065094). Price: $2.80 |
| 17 |
92101-08010-0A |
BOLT, HEX. (8X10) Price: $1.82 |
| 18 |
93404-06016-00 |
SEE PART DETAILS - PRI; BOLT-WASHER (6X16) Price: $2.04 |
| 19 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 20 |
94050-08000 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143). Price: $1.18 |
| 21 |
94050-10000 |
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867). Price: $1.94 |
| 22 |
94102-08000 |
WASHER, PLAIN (8MM) (Honda Code 0199596). Price: $1.18 |
| 23 |
94109-12000 |
SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868). Price: $1.54 |
| 24 |
94301-08140 |
SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310). Price: $2.82 |
| 25 |
95701-06035-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2105864). Price: $2.36 |
| 26 |
95701-10090-00 |
BOLT, FLANGE (10X90) Price: $4.16 |
