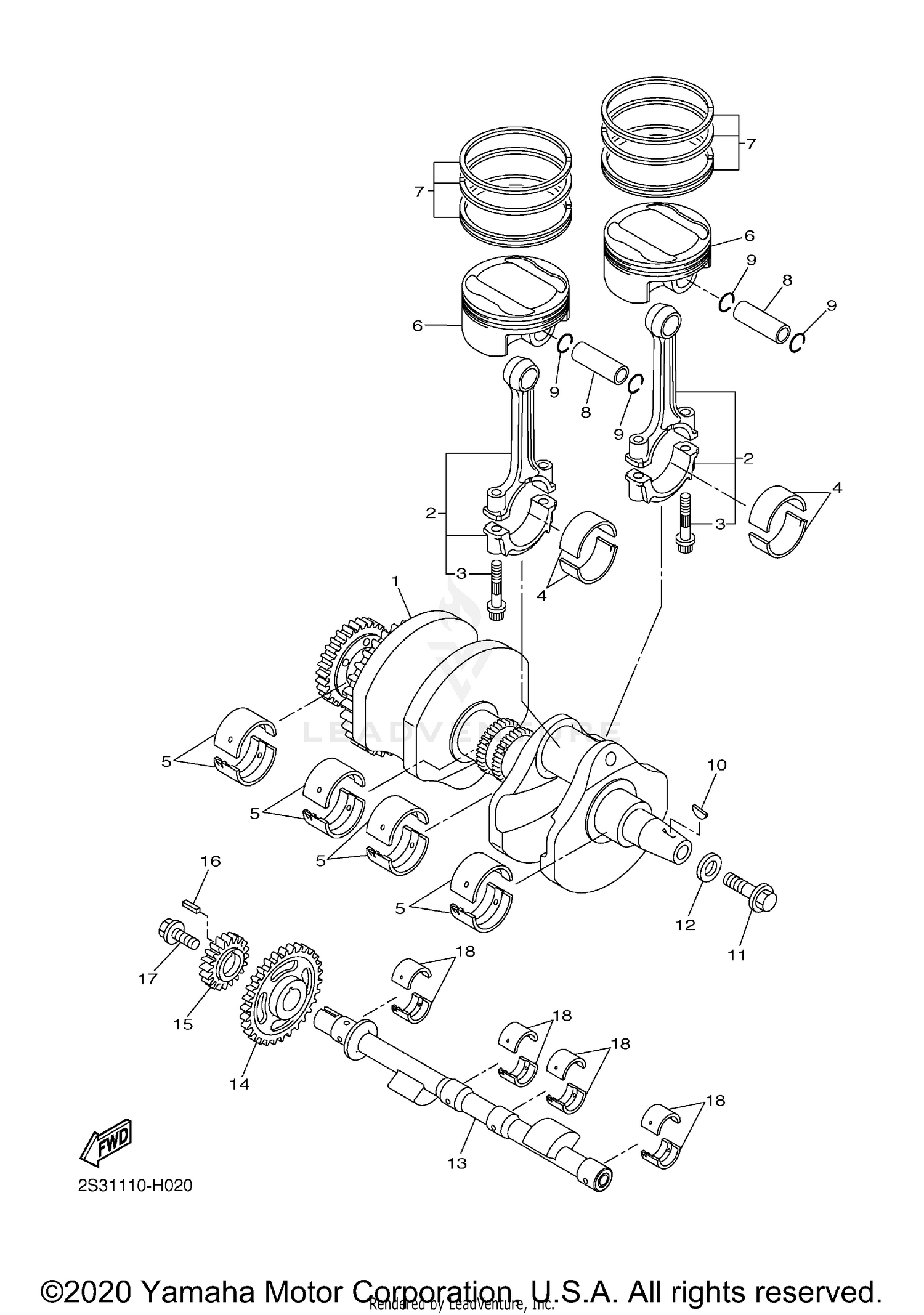

| Ref | Part Number | Description |
|---|
| 1 |
2S3-11400-00-00 |
CRANKSHAFT ASSY Price: $1,064.99 |
| 2 |
2S3-11650-00-00 |
CONNECTING ROD ASSY Price: $212.99 |
| 3 |
2S3-11654-00-00 |
BOLT, CONNECTING ROD Price: $7.49 |
| 6 |
2S3-11631-00-00 |
PISTON (STD) Price: $199.99 |
| 7 |
2S3-11603-01-00 |
PISTON RING SET (STD) This part replaces 2S3-11603-00-00. Price: $62.99 |
| 8 |
2S3-11633-00-00 |
PIN, PISTON Price: $30.99 |
| 9 |
93450-19095-00 |
CIRCLIP Price: $2.90 |
| 10 |
90280-05029-00 |
KEY, WOODRUFF Price: $12.49 |
| 11 |
90105-12005-00 |
BOLT, FLANGE Price: $25.99 |
| 12 |
90201-12008-00 |
WASHER, PLATE Price: $16.49 |
| 13 |
2S3-11454-00-00 |
WEIGHT 1 Price: $311.99 |
| 14 |
2S3-11531-00-00 |
GEAR, BALANCE WEIGHT Price: $120.99 |
| 15 |
2S3-12436-01-00 |
GEAR, DRIVE Price: $54.99 |
| 16 |
90282-04056-00 |
KEY, STRAIGHT Price: $2.20 |
| 17 |
90105-10445-00 |
BOLT, WASHER BASED Price: $12.49 |
