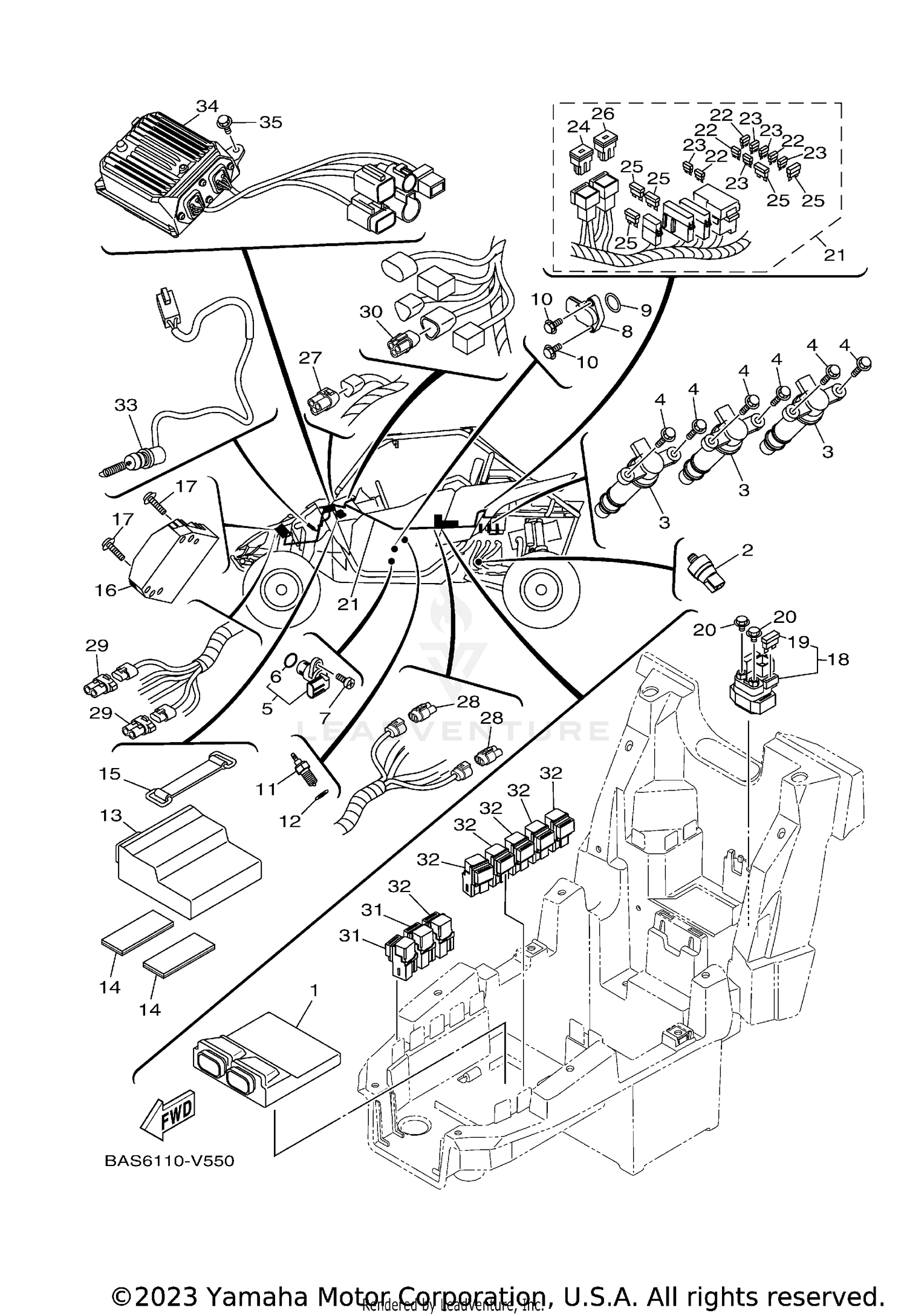

| Ref | Part Number | Description |
|---|
| 1 |
B5H-8591A-21-00 |
ENGINE CONTROL UNI Price: $1,049.99 |
| 2 |
8FP-82504-01-00 |
OIL PRESSURE SWITCH ASSY Price: $71.99 |
| 3 |
2HC-82310-00-00 |
IGNITION COIL ASSY Price: $127.99 |
| 4 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95812-06025-00. Price: $1.75 |
| 5 |
1TP-83755-00-00 |
SENSOR, SPEED Price: $84.99 |
| 6 |
4D9-81168-00-00 |
O-RING Price: $7.49 |
| 7 |
91317-06016-00 |
BOLT (4MY) This part replaces 90110-06193-00. Price: $1.25 |
| 8 |
2HC-85899-10-00 |
SENSOR, GEAR POSITION Price: $95.99 |
| 9 |
93210-17008-00 |
O-RING Price: $2.65 |
| 10 |
90110-05038-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 11 |
3GB-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 12 |
90430-10148-00 |
GASKET Price: $5.99 |
| 13 |
B5H-86510-00-00 |
MOTOR CONTROL UNIT A Price: $1,590.99 |
| 14 |
1HP-H2176-01-00 |
DAMPER This part replaces 34D-82176-00-00. Price: $2.40 |
| 15 |
2T4-82131-00-00 |
BAND, BATTERY Price: $9.99 |
| 16 |
B5H-81960-00-00 |
RECTIFIER & REGULATO Price: $286.99 |
| 17 |
90105-06833-00 |
BOLT, FLANGE Price: $2.30 |
| 18 |
4D3-81940-00-00 |
STARTER RELAY ASSY (RC19-077A) Price: $115.99 |
| 19 |
36Y-82151-00-00 |
FUSE (15A-BLUE) Price: $6.49 |
| 20 |
95022-06008-00 |
BOLT, FLANGE Price: $9.49 |
| 21 |
B5H-82590-11-00 |
WIRE HARNESS ASSY Price: $1,549.99 |
| 22 |
67F-82151-50-00 |
FUSE (15A) This part replaces 5JJ-82151-10-00. Price: $4.05 |
| 23 |
67F-82151-40-00 |
FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 24 |
JR9-82151-00-00 |
SLOW BLOW FUSE This part replaces 5PS-82151-00-00. Price: $13.49 |
| 25 |
5JJ-82151-60-00 |
FUSE (30A-BL) Price: $8.49 |
| 26 |
5JW-82151-10-00 |
FUSE (50A) Price: $17.99 |
| 27 |
8CR-82378-00-00 |
CONNECTOR Price: $13.49 |
| 28 |
B57-82378-00-00 |
CONNECTOR Price: $8.49 |
| 29 |
B5H-82378-00-00 |
CONNECTOR Price: $8.49 |
| 30 |
B5H-82529-00-00 |
CONNECTOR Price: $5.49 |
| 31 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 32 |
8DM-81950-11-00 |
RELAY ASSY (8DM-11) Price: $33.99 |
| 33 |
B90-82530-01-00 |
STOP SWITCH ASSY This part replaces B90-82530-00-00. Price: $57.99 |
| 34 |
B5H-859A0-01-00 |
POWER STRG. CONT. UNIT ASSY This part replaces B5H-859A0-00-00. Price: $875.99 |
