| Ref | Part Number | Description |
|---|
| 1 |
31600-MKN-D51 |
RECTIFIER ASSY., REGULATOR Price: $228.55 |
| 2 |
31700-124-008 |
RECTIFIER ASSY., SILICON (SHINDENGEN) Price: $36.00 |
| 3 |
31700-196-000 |
RECTIFIER, SILICON Price: $32.00 |
| 4 |
32100-MKY-LA0 |

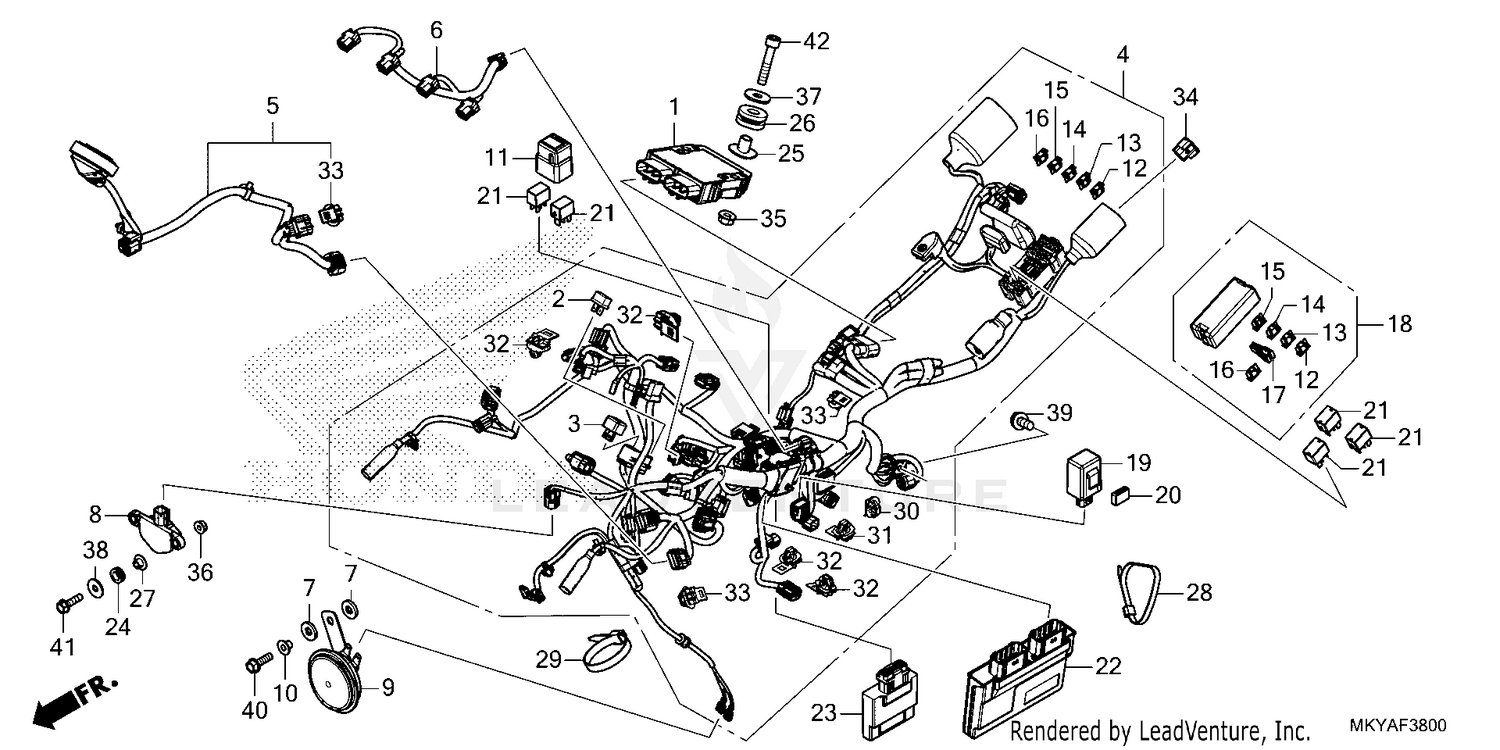

WIRE HARNESS Price: $790.02 |
| 5 |
32103-MKY-E00 |
SUB-HARNESS, FR. Price: $40.36 |
| 6 |
32104-MKY-D50 |
SUB-HARNESS, INJECTOR Price: $22.22 |
| 7 |
33714-KL3-620 |
RUBBER, TAILLIGHT BRACKET Price: $2.87 |
| 8 |
35160-KVS-751 |
SENSOR ASSY., BANK ANGLE (M6) Price: $123.91 |
| 9 |
38110-KPP-T01 |
HORN (HIGH) Price: $40.00 |
| 10 |
38117-KFE-701 |
COLLAR, HORN SETTING Price: $0.87 |
| 11 |
38200-K56-N00 |
SUSPENSION (2P) Price: $4.55 |
| 12 |
38221-SNA-A31 |
FUSE, BLADE (7.5A) Price: $3.90 |
| 13 |
38221-SNA-A41 |
FUSE, BLADE (10A) Price: $3.90 |
| 14 |
38221-SNA-A51 |
FUSE, BLADE (15A) Price: $3.90 |
| 15 |
38221-SNA-A61 |
FUSE, BLADE (20A) Price: $3.90 |
| 16 |
38221-SNA-A81 |
FUSE, BLADE (30A) Price: $2.53 |
| 17 |
38235-SNA-A01 |
PULLER, MINI FUSE Price: $4.68 |
| 18 |
38255-MKY-EA1 |
COVER, POWER BOX Price: $10.95 |
| 20 |
38306-KK4-000 |
SUSPENSION, TURN SIGNAL RELAY (MITSUBA) Price: $3.78 |
| 21 |
38501-MKR-D11 |
RELAY, POWER (MICRO ISO 4P) Price: $14.87 |
| 22 |
38770-MKY-LA3 |
PGM-FI UNIT Price: $436.77 |
| 23 |
38840-MKY-E82 |
CONTROL UNIT, CLUTCH Price: $224.29 |
| 24 |
64535-MFJ-D00 |
RUBBER, SIDE COVER Price: $2.22 |
| 25 |
77326-MJS-J70 |
COLLAR, PILLION SEAT MOUNTING Price: $4.62 |
| 26 |
77327-MJS-J70 |
RUBBER, PILLION SEAT MOUNTING Price: $5.11 |
| 27 |
90129-MGZ-J00 |
COLLAR, BANK ANGLE SENSOR Price: $2.62 |
| 29 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $3.65 |
| 30 |
91534-SWA-003 |
CLIP, CONNECTOR (DARK GRAY) Price: $10.00 |
| 31 |
91535-STK-003 |
CLIP, CONNECTOR (DARK BLUE) Price: $7.70 |
| 32 |
91535-TA0-003 |
CLIP, CONNECTOR (DARK BROWN) Price: $5.20 |
| 33 |
91565-SEL-003 |
CLIP, CONNECTOR (BLACK) (Honda Code 7386865) Price: $4.62 |
| 34 |
91771-MKK-H11 |
CAP, DUMMY (6P) (RED) Price: $25.67 |
| 35 |
94050-06070 |
NUT, FLANGE (6MM) Price: $1.52 |
| 36 |
94050-06080 |
NUT, FLANGE (6MM) Price: $0.68 |
| 37 |
94103-06700 |
WASHER, PLAIN (6MM) Price: $0.75 |
| 38 |
94103-06800 |
WASHER, PLAIN (6MM) Price: $0.82 |
| 39 |
95701-06014-08 |
BOLT, FLANGE (6X14) Price: $1.70 |
| 40 |
95701-06020-07 |
BOLT, FLANGE (6X20) Price: $1.70 |
| 41 |
95701-06022-08 |
BOLT, FLANGE (6X22) Price: $1.88 |
