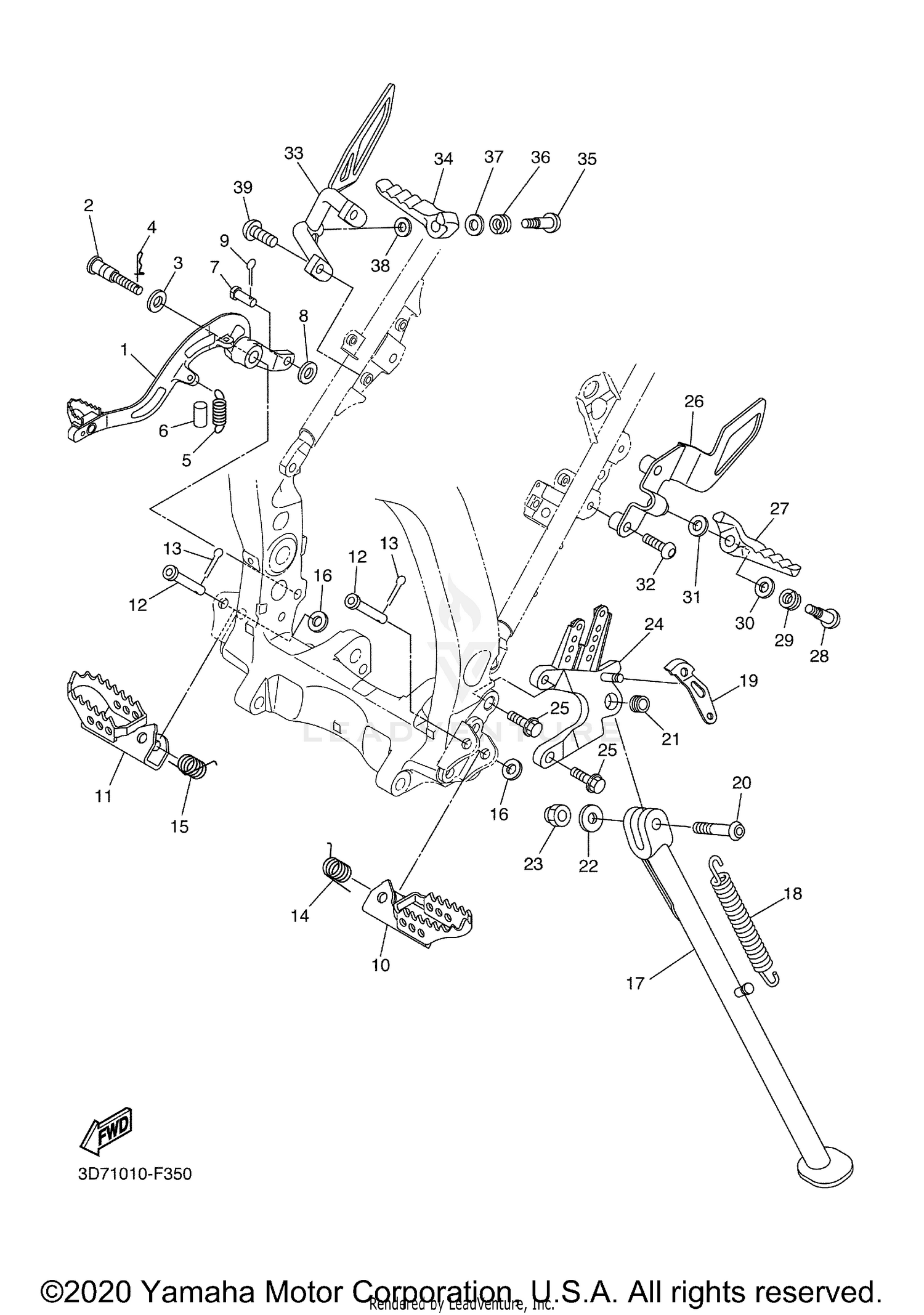

| Ref | Part Number | Description |
|---|
| 1 |
3D7-27200-11-00 |
PEDAL, BRAKE Price: $208.99 |
| 2 |
3D7-27217-00-00 |
BOLT Price: $33.99 |
| 3 |
90201-08060-00 |
WASHER, PLATE Price: $11.49 |
| 4 |
90468-16191-00 |
CLIP Price: $9.49 |
| 5 |
90506-16007-00 |
SPRING, TENSION Price: $9.49 |
| 6 |
90445-16012-00 |
HOSE Price: $19.49 |
| 7 |
90240-08120-00 |
PIN, CLEVIS Price: $14.49 |
| 8 |
90201-08044-00 |
WASHER, PLATE Price: $9.49 |
| 9 |
91490-20015-00 |
PIN. COTTER This part replaces 91402-20012-00. Price: $2.20 |
| 10 |
3D7-27411-00-00 |
FOOTREST 1 Price: $83.99 |
| 11 |
3D7-27421-00-00 |
FOOTREST 2 Price: $83.99 |
| 12 |
90240-10004-00 |
PIN, CLEVIS Price: $15.49 |
| 13 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 14 |
90508-28016-00 |
SPRING, TORSION Price: $6.49 |
| 15 |
90508-28020-00 |
SPRING, TORSION Price: $8.49 |
| 16 |
90201-10119-00 |
WASHER, PLATE Price: $1.00 |
| 17 |
3D7-27311-03-00 |
STAND, SIDE This part replaces 3D7-27311-01-00. Price: $119.99 |
| 18 |
90506-35473-00 |
SPRING, TENSION Price: $18.49 |
| 19 |
3D7-27315-00-00 |
LINK, SIDE STAND Price: $12.99 |
| 20 |
90111-10007-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 21 |
90387-1003G-00 |
COLLAR Price: $23.99 |
| 22 |
92990-10200-00 |
WASHER, PLAIN Price: $3.72 |
| 23 |
95617-10100-00 |
NUT, U This part replaces 95612-10100-00. Price: $9.49 |
| 24 |
3D7-27321-00-00 |
BRACKET, SIDE STAND Price: $134.99 |
| 25 |
90105-10245-00 |
BOLT, FLANGE This part replaces 90105-10244-00. Price: $8.49 |
| 26 |
3D7-27432-11-00 |
BRACKET 1 Price: $109.99 |
| 27 |
3XP-27431-02-00 |
FOOTREST, REAR 1 Price: $39.99 |
| 28 |
90109-085F5-00 |
BOLT Price: $5.99 |
| 29 |
90504-18031-00 |
SPRING, COMPRESSION This part replaces 90504-18005-00. Price: $10.49 |
| 30 |
92907-10600-00 |
WASHER, PLATE Price: $9.49 |
| 31 |
90201-083P5-00 |
WASHER, PLATE Price: $6.49 |
| 32 |
92012-08030-00 |
BOLT, BUTTON HEAD Price: $6.49 |
| 33 |
3D7-27442-01-00 |
BRACKET 2 Price: $126.99 |
| 34 |
3XP-27441-02-00 |
FOOTREST, REAR 2 Price: $37.99 |
| 35 |
90109-085F5-00 |
BOLT Price: $5.99 |
| 36 |
90504-18031-00 |
SPRING, COMPRESSION This part replaces 90504-18005-00. Price: $10.49 |
| 37 |
92907-10600-00 |
WASHER, PLATE Price: $9.49 |
| 38 |
90201-083P5-00 |
WASHER, PLATE Price: $6.49 |
