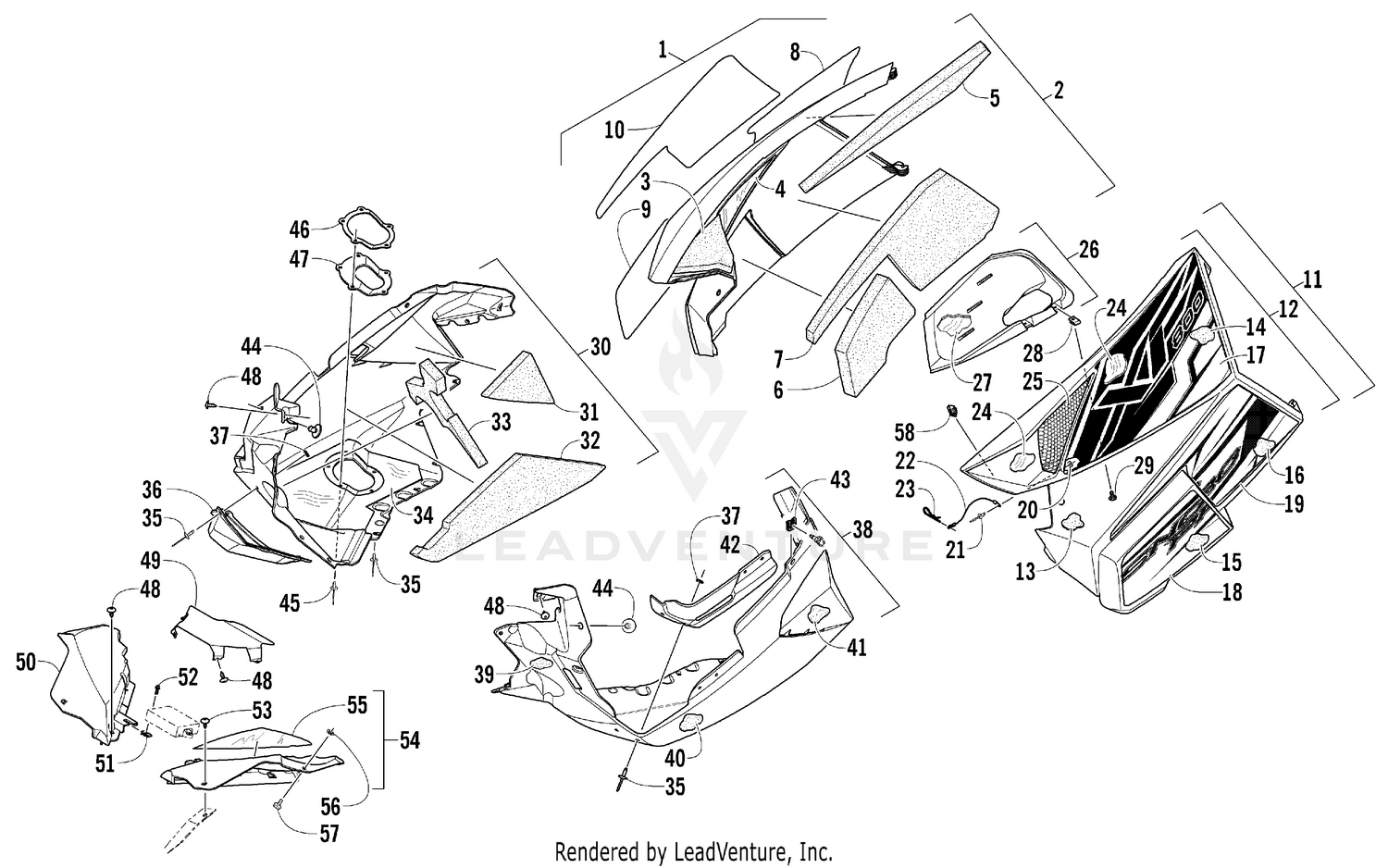

SKID PLATE AND SIDE PANEL ASSEMBLY [96985]

Parts (49)

Ref	Part Number	Description
3	0617-626	Foam, Side Panel - Upper Front - Right Price: $5.09
4	6606-414	Foil, Protective Price: $17.95
5	0617-628	Foam, Side Panel - Upper Rear - Right Price: $45.95
6	0617-632	Foam, Side Panel - Lower Front - Right Price: $24.20
7	0617-634	Foam, Side Panel - Lower Rear - Right Price: $47.95
8	0621-068	Decal, Side Panel - Upper - Right Price: $2.69
9	0621-074	Decal, Side Panel - Lower Front - Right Price: $33.95
10	0621-076	Decal, Side Panel - Upper - Right Price: $2.06
13	0617-631	Foam, Side Panel - Center Front - Left Price: $2.59
14	0617-629	Foam, Side Panel - Upper Rear - Left Price: $19.35
15	0617-681	Foam, Side Panel - Lower Front - Left Price: $7.23
16	0617-635	Foam, Side Panel - Lower Rear - Left Price: $19.29
17	0621-069	Decal, Side Panel - Upper - Left Price: $2.69
18	0621-075	Decal, Side Panel - Lower Front - Left Price: $33.95
19	0621-077	Decal, Side Panel - Lower Rear - Left Price: $64.75
20	8050-127	Washer Price: $1.57
21	8060-486	Rivet Price: $0.29
22	0607-447	Cable Price: $11.02
23	0605-283	Clip, Hairpin Price: $2.29
24	0619-206	Foil, Protective Price: $237.95
25	5706-531	Screen, Intake Price: $22.99
27	6606-462	Foil, Protective Price: $3.38
28	1623-030	Clip, U-Nut Price: $1.08
29	0623-797	Screw, Self-Tapping Price: $0.42
31	0617-640	Foam, Skid Plate - Upper Rear - Right Price: $4.23
32	0617-638	Foam, Skid Plate - Center Front - Right Price: $17.95
33	0617-636	Foam, Skid Plate - Upper Front - Right Price: $45.95
34	2612-850	Foil, Protective Price: $12.95
35	8061-708	Rivet Price: $1.08
36	2612-754	Deflector, Heat Price: $31.95
37	0123-802	Washer Price: $0.23
39	0617-637	Foam, Skid Plate - Upper Front - Left Price: $7.95
40	0617-639	Foam, Skid Plate - Center Front - Left Price: $19.35
41	0617-641	Foam, Skid Plate - Upper Rear - Left Price: $4.72
42	6606-613	Panel, Reinforcement Price: $14.49
43	1623-748	Clip, Retaining Price: $6.06
44	5606-639	Pin, Retaining Price: $10.95
45	8061-710	Rivet Price: $1.20
46	2612-796	Plate, Exhaust Outlet Price: $28.95
47	2612-795	Seal, Exhaust Outlet Price: $19.35
48	1623-129	Screw, Self-Tapping Price: $0.29
49	6606-295	Shield, Heat - EMC Price: $20.95
50	6606-342	Fascia, Front - Right - Black Price: $39.95
51	0423-031	Clip, U-Nut Price: $1.08
52	8476-620	Screw, Machine This part replaces 8408-620. Price: $0.48
53	0623-784	Screw, Self-Tapping Price: $0.09
55	6606-405	Foil, Protective Price: $31.27
56	2623-001	RETAINER,PUSHNUT - 3/16" STUD Price: $0.48
57	1623-999	Screw, Thumb Price: $5.34
