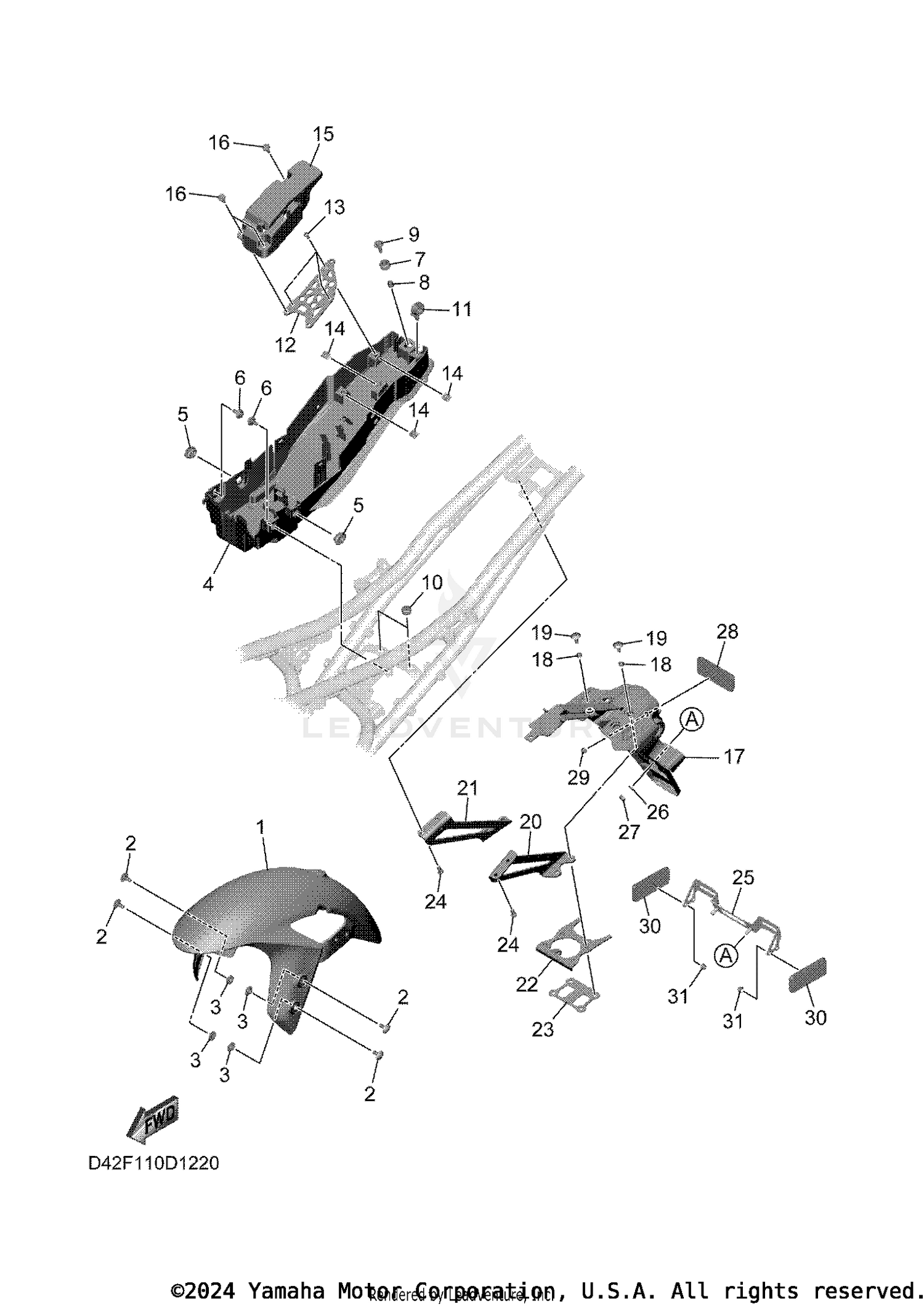

| Ref | Part Number | Description |
|---|
| 2 |
90111-06196-00 |
BOLT,HEX. SOCKET B Price: $2.30 |
| 3 |
90387-07717-00 |
COLLAR Price: $9.49 |
| 4 |
D42-8212B-00-00 |
BOX, BATTERY 1 Price: $54.99 |
| 5 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 6 |
90109-06220-00 |
BOLT Price: $11.49 |
| 7 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 8 |
90387-06113-00 |
COLLAR This part replaces 90387-060A7-00. Price: $12.49 |
| 9 |
90119-06118-00 |
BOLT, WITH WASHER This part replaces 90119-06267-00. Price: $9.49 |
| 10 |
90338-14008-00 |
PLUG Price: $3.85 |
| 11 |
90464-12M58-00 |
CLAMP Price: $3.15 |
| 12 |
D42-2162G-00-00 |
PLATE 1 Price: Call Us |
| 13 |
92012-05012-00 |
BOLT, BUTTON HEAD Price: $4.75 |
| 14 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 15 |
D42-2116H-00-00 |
COVER 9 Price: $17.99 |
| 16 |
90269-06081-00 |
RIVET Price: $8.49 |
| 17 |
BEB-21629-00-00 |
GUARD, MUD Price: $76.99 |
| 18 |
90387-06106-00 |
COLLAR This part replaces 90387-06372-00. Price: $8.49 |
| 19 |
90111-06061-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06089-00. Price: $9.49 |
| 20 |
BEB-2164F-00-00 |
STAY 1 Price: $26.99 |
| 21 |
BEB-2164G-00-00 |
STAY 2 Price: $25.99 |
| 22 |
BAT-21682-00-00 |
STAY, PLATE Price: $15.49 |
| 23 |
BAT-2161G-00-00 |
BRACKET 6 Price: $10.49 |
| 24 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS This part replaces 90105-06226-00. Price: $1.10 |
| 25 |
2RC-84751-00-00 |
BRACKET, LICENSE Price: $35.99 |
| 26 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 27 |
95617-06100-00 |
NUT, U This part replaces 95602-06100-00. Price: $2.90 |
| 28 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
| 29 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 30 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
