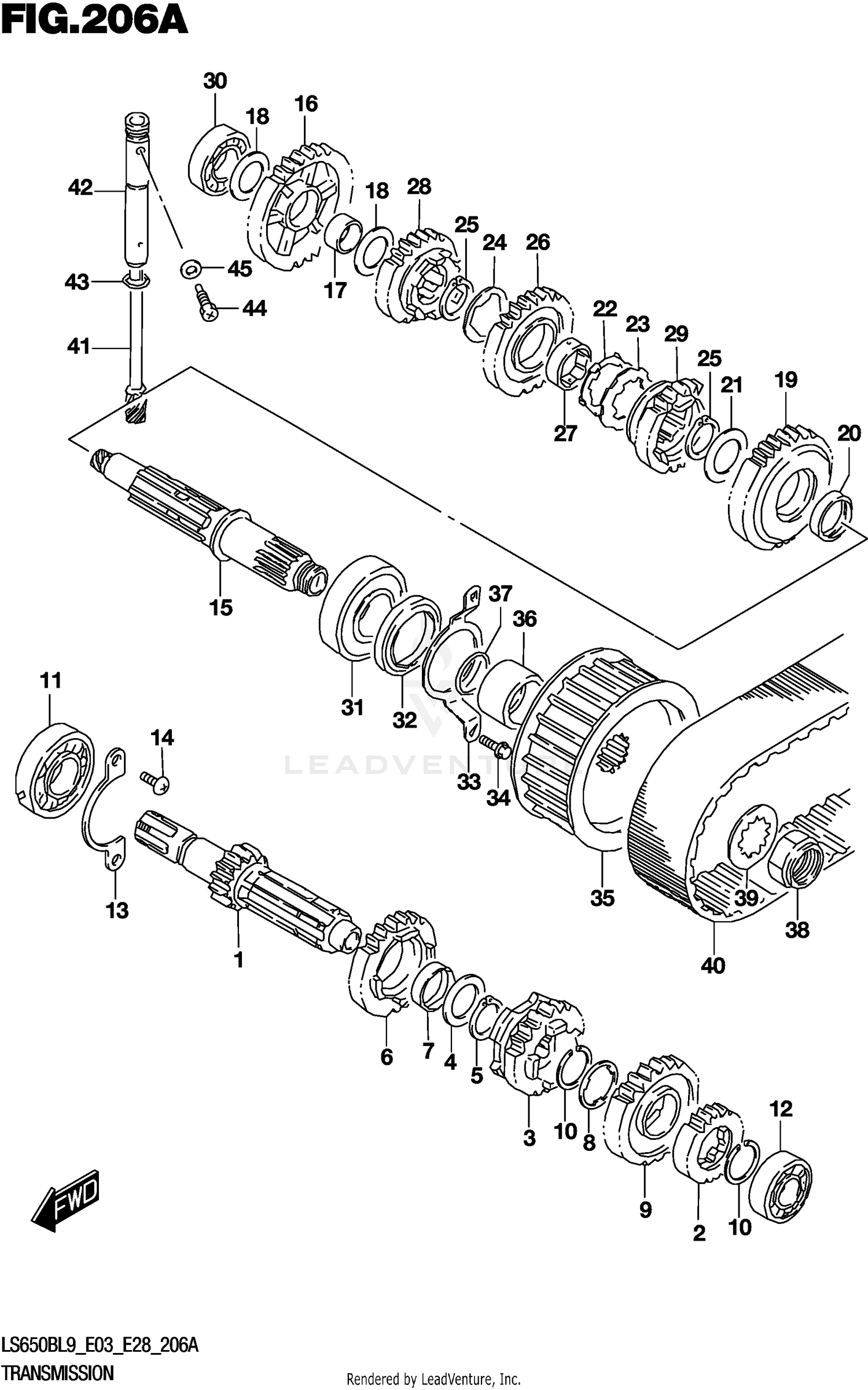

TRANSMISSION
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 24121-24B12 | COUNTERSHAFT (NT:15) Price: $238.51 |
| 2 | 24221-24B21 | GEAR Price: $69.86 |
| 3 | 24231-24B30 | GEAR Price: $157.45 |
| 4 | 08211-25351 | WASHER (T:1.0) Price: $3.91 |
| 5 | 09380-25003 | RING,SNAP Price: $3.76 |
| 6 | 24241-24B20 | GEAR Price: $75.91 |
| 7 | 24252-19F00 | BUSH Price: $18.49 |
| 8 | 09167-25012 | WASHER,LOCK (25.1X31X1.0) Price: $3.89 |
| 9 | 24251-24B13 | GEAR Price: $119.05 |
| 10 | 09380-25010 | CIRCLIP Price: $3.36 |
| 13 | 24741-24B00 | RETAINER Price: $5.20 |
| 14 | 02112-0612A | SCREW Price: $1.73 |
| 15 | 24130-24B12 | DRIVE SHAFT Price: $216.17 |
| 16 | 24311-24B11 | GEAR Price: $100.11 |
| 17 | 09300-20032 | BUSH (20X24X13) Price: $18.39 |
| 18 | 09181-20195 | SHIM (20X30X1) Price: $3.02 |
| 19 | 24321-24B20 | GEAR Price: $84.70 |
| 20 | 09300-25020 | BUSH,25X29X8 (25X29X8) Price: $17.71 |
| 21 | 08211-25351 | WASHER (T:1.0) Price: $3.91 |
| 24 | 09167-25016 | WASHER,LOCK (25.5X35X1) Price: $3.91 |
| 25 | 09380-25003 | RING,SNAP Price: $3.76 |
| 26 | 24331-24B20 | GEAR Price: $75.85 |
| 27 | 24332-24510 | BUSH,DRIVEN GEAR Price: $20.17 |
| 28 | 24341-24B20 | GEAR Price: $80.94 |
| 29 | 24351-24B13 | GEAR Price: $89.00 |
| 32 | 09283-36003 | OIL SEAL (36X50X6) Price: $15.35 |
| 33 | 24751-24B00 | RETAINER Price: $7.96 |
| 34 | 01547-0612A | BOLT Price: $2.45 |
| 35 | 27510-24B01 | PULLEY Price: $153.86 |
| 36 | 27531-24B00 | SPACER Price: $34.27 |
| 37 | 09280-24010 | O RING (D:2.4,ID:23.7) Price: $6.87 |
| 38 | 09159-20004 | NUT Price: $19.09 |
| 39 | 09167-25027 | LOCK WASHER Price: $2.47 |
| 40 | 27611-24B00-133 | BELT Price: $372.60 |
| 41 | 26131-24B00 | GEAR Price: $35.42 |
| 42 | 26481-24B01 | SLEEVE Price: $47.27 |
| 43 | 09280-10001 | O RING (D:1.3 Price: $2.39 |
| 44 | 09135-06501 | BOLT (6X10) Price: $3.70 |
