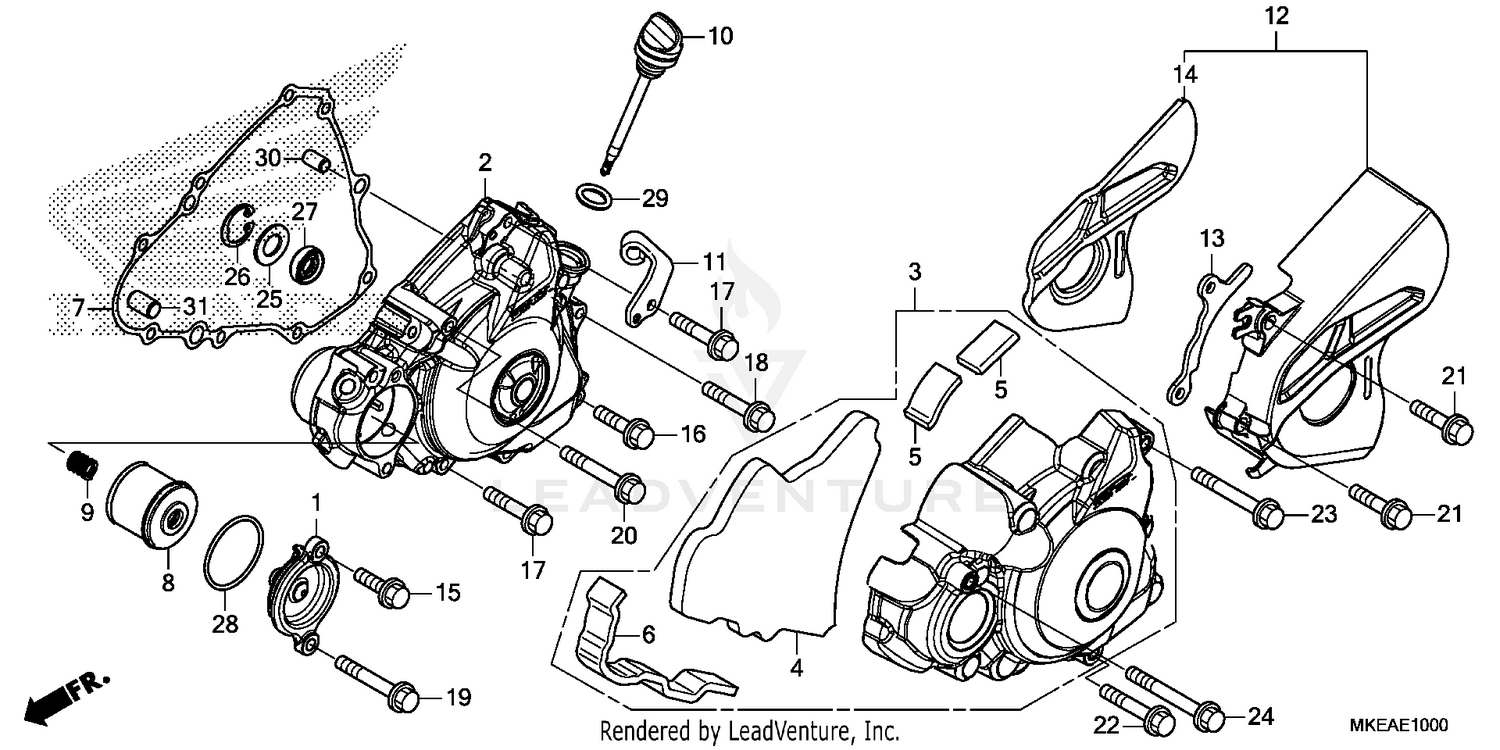

| Ref | Part Number | Description |
|---|
| 1 |
11333-MKE-A00 |
COVER, OIL FILTER Price: $50.38 |
| 2 |
11340-MKE-A50 |
COVER, L. CRANKCASE Price: $271.41 |
| 3 |
11370-MKE-A50 |
OVER COVER, L. CRANKCASE Price: $84.73 |
| 4 |
11376-MKE-A50 |
MAT A, L. COVER Price: $6.49 |
| 5 |
11377-MKE-A50 |
MAT B, L. COVER Price: $1.04 |
| 6 |
11378-MKE-A50 |
MAT C, L. COVER Price: $4.22 |
| 7 |
11395-MKE-A01 |
GASKET, L. COVER Price: $22.80 |
| 8 |
15412-MEN-671 |
FILTER, ENGINE OIL Price: $9.44 |
| 9 |
15414-MEB-670 |
SPRING, OIL FILTER Price: $3.00 |
| 10 |
15651-MKE-A50 |
DIPSTICK, OIL Price: $10.71 |
| 11 |
22838-MKE-A00 |
RECEIVER, CLUTCH CABLE Price: $7.71 |
| 12 |
23810-MKE-AD0 |
COVER, DRIVE SPROCKET Price: $70.20 |
| 13 |
23812-MKE-A50 |
GUIDE, DRIVE CHAIN Price: $13.62 |
| 14 |
23813-MKE-AD0 |
RUBBER, DRIVE SPROCKET COVER Price: $34.47 |
| 15 |
90020-GHB-650 |
BOLT, FLANGE (6X18) Price: $2.65 |
| 16 |
90020-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.58 |
| 17 |
90020-GHB-720 |
BOLT, FLANGE (6X35) Price: $2.84 |
| 18 |
90020-GHB-740 |
BOLT, FLANGE (6X40) Price: $3.04 |
| 19 |
90020-GHB-760 |
BOLT, FLANGE (6X50) Price: $3.31 |
| 20 |
90020-GHB-770 |
BOLT, FLANGE (6X55) Price: $3.40 |
| 21 |
90021-GHB-700 |
BOLT, FLANGE (6X30) Price: $2.65 |
| 22 |
90025-GHB-750 |
BOLT, FLANGE (6X45) Price: $3.53 |
| 23 |
90025-GHB-780 |
BOLT, FLANGE (6X60) Price: $3.49 |
| 24 |
90025-GHB-790 |
BOLT, FLANGE (6X65) Price: $3.84 |
| 25 |
90401-MEY-670 |
WASHER (13X24X1.6) Price: $2.25 |
| 26 |
90602-MEB-670 |
CIRCLIP, SPECIAL (INNER) (24MM) Price: $3.85 |
| 27 |
91204-MEN-A31 |
OIL SEAL (10X21X5) Price: $4.85 |
| 28 |
91302-K0G-911 |
O-RING (39.8X2.2) This part replaces 91302-PA9-003. Price: $1.15 |
| 29 |
91307-KRN-A41 |
D-RING (14X3) Price: $3.55 |
| 30 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
