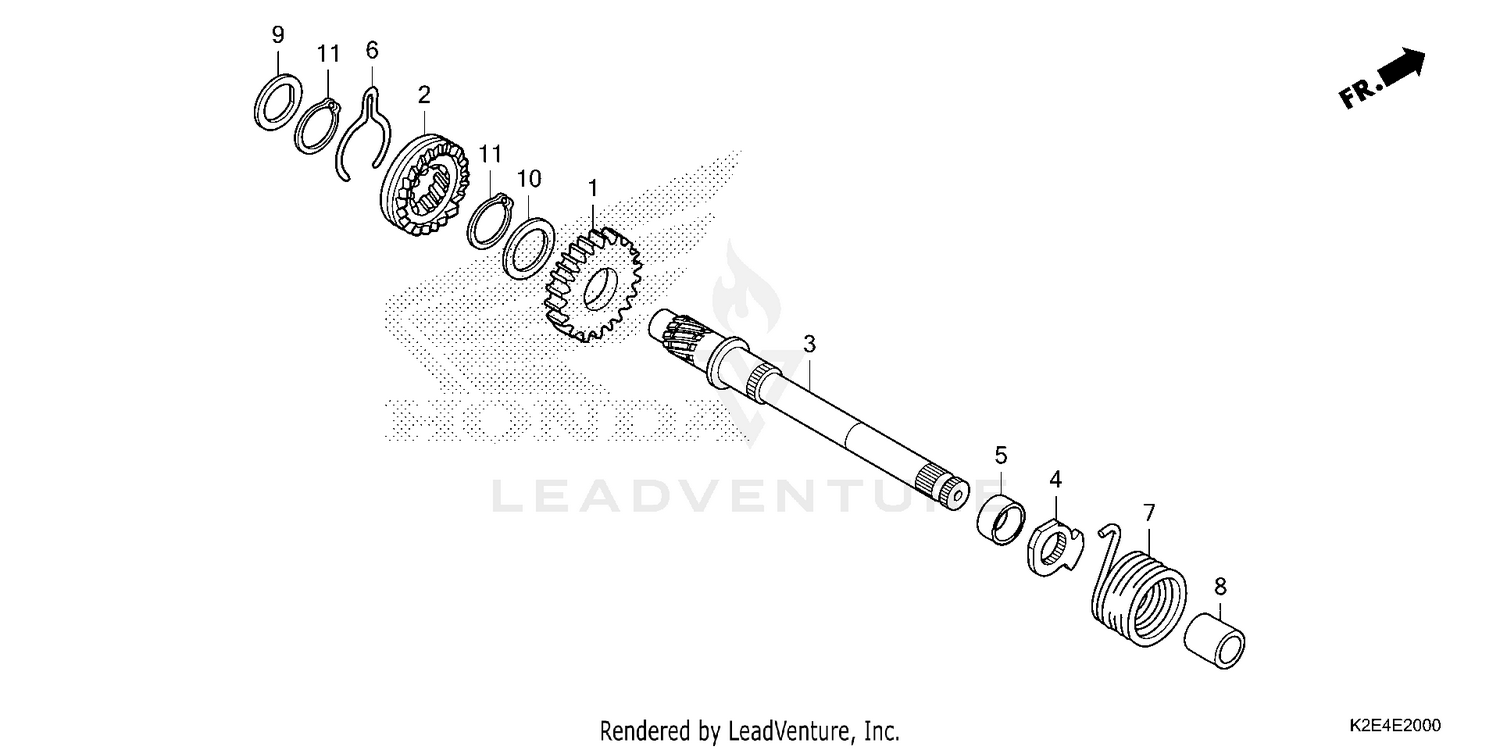

KICK STARTER SPINDLE
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 28211-KYZ-900 | PINION, KICK STARTER (27T) Price: $30.82 |
| 2 | 28221-KYZ-900 | RATCHET, STARTER DRIVE (10T) Price: $13.85 |
| 3 | 28251-KYZ-900 | SPINDLE, KICK STARTER (10T) Price: $32.82 |
| 4 | 28262-KPH-900 | RETAINER, KICK SPRING Price: $12.96 |
| 5 | 28265-KPH-900 | COLLAR, KICK RETAINER Price: $0.62 |
| 6 | 28271-KYZ-900 | SPRING, FRICTION STARTER PINION Price: $1.25 |
| 7 | 28281-KPH-900 | SPRING, KICK RETURN Price: $3.93 |
| 8 | 28282-KPH-900 | COLLAR, KICK SPRING Price: $1.35 |
| 9 | 90452-KYZ-900 | WASHER, THRUST (15.5MM) Price: $1.89 |
| 10 | 90454-KPH-900 | WASHER (25X20.2X1) Price: $2.60 |
| 11 | 90605-KPS-900 | SET-RING (20MM) Price: $2.58 |
| 11 | 90605-KYY-900 | SET-RING (20MM) Price: $3.82 |
