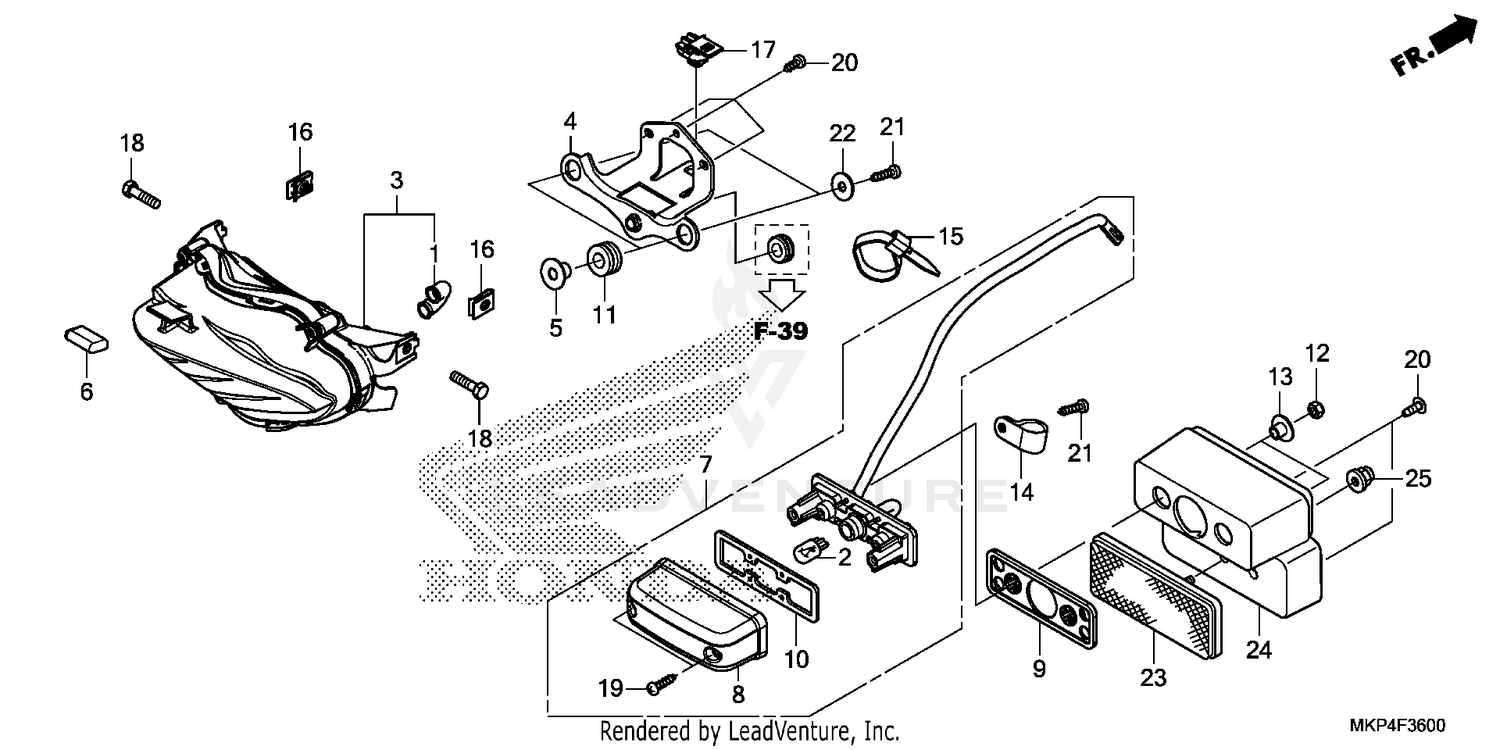

| Ref | Part Number | Description |
|---|
| 1 |
33113-MJW-J80 |
TUBE, VENT Price: $1.02 |
| 2 |
33301-SA0-741 |
BULB (12V 5W) (STANLEY) Price: $4.78 |
| 3 |
33701-MJW-A81 |
TAILLIGHT UNIT Price: $283.53 |
| 4 |
33702-MJW-J80 |
STAY, TAILLIGHT Price: $7.35 |
| 5 |
33705-MGZ-J00 |
COLLAR, TAILLIGHT Price: $1.73 |
| 6 |
33706-MFN-D00 |
SUSPENSION, TAILLIGHT Price: $1.02 |
| 7 |
33720-MGZ-305 |
LIGHT ASSY., LICENSE (12V 5W) (COO) This part replaces 33720-MGZ-A01. Price: $59.38 |
| 8 |
33722-K26-305 |
COVER, LICENSE (COO) This part replaces 33722-KWN-901. Price: $11.71 |
| 9 |
33728-KPP-T00 |
RUBBER, LICENSE LIGHT Price: $4.89 |
| 10 |
33729-MCZ-003 |
GASKET, LENS Price: $10.82 |
| 11 |
83545-KCJ-690 |
RUBBER, SIDE COVER Price: $1.60 |
| 12 |
90302-KVB-T01 |
NUT, U (5MM) Price: $2.05 |
| 13 |
90505-MGZ-A00 |
COLLAR Price: $1.98 |
| 14 |
90628-750-000 |
CLIP (14MM) Price: $2.90 |
| 15 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 16 |
90677-KAN-T00 |
NUT, CLIP (5MM) Price: $0.73 |
| 17 |
91535-TA0-003 |
CLIP, CONNECTOR (DARK BROWN) Price: $5.20 |
| 18 |
92101-05020-0A |
BOLT, HEX. (5X20) (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.) Price: $1.22 |
| 19 |
93901-24480 |
SCREW, TAPPING (4X16) Price: $0.87 |
| 20 |
93903-24380 |
SCREW, TAPPING (4X12) Price: $0.95 |
| 21 |
93903-24420 |
SCREW, TAPPING (4X16) Price: $0.95 |
| 22 |
94103-04000 |
WASHER, PLAIN (4MM) Price: $0.82 |
| 23 |
33741-KPL-902 |
REFLECTOR, REFLEX Price: $9.25 |
| 24 |
80201-KYJ-920 |
BRACKET, LICENSE LIGHT Price: $10.31 |
